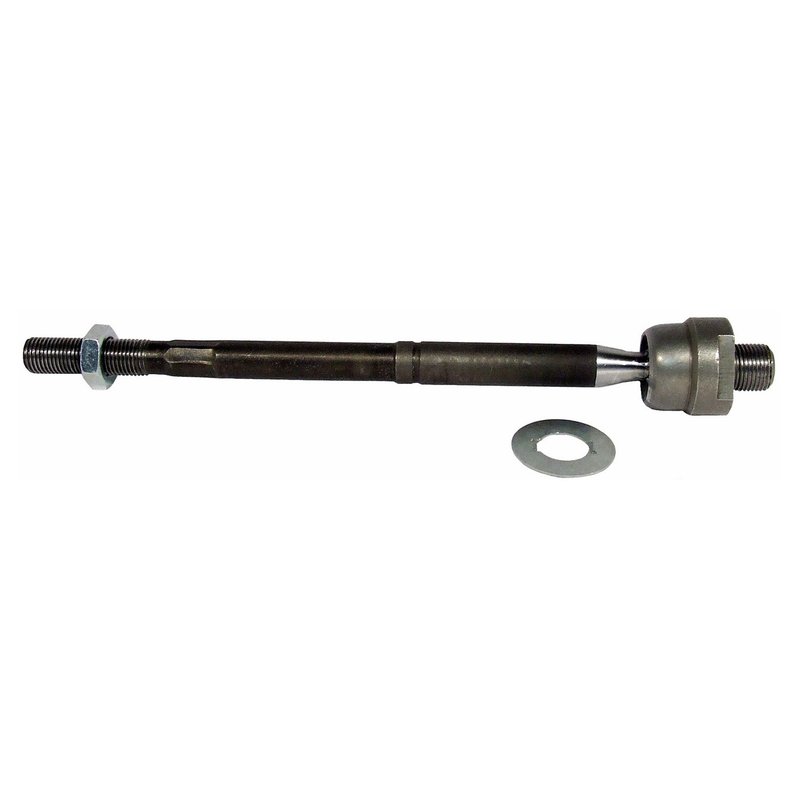

Delphi TA2711 Steering Tie Rod End - Inner
| Brand | Delphi TA2711 |
|---|---|
| Position | Inner |
| Adjustable | Yes |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Dust Boot Included | No |
| End 1 Gender | Male |
| End 1 Thread Diameter | 18.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Male |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 37.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 9.685 |
| Length Stud Center to End | 246.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Inner |
| Pre-Greased | Yes |
| Tie Rod Material | Steel |
| Tube Diameter | 0.63 |
| Tube Diameter | 16.0 |
| Type | Straight |
| Weight | 1.18 |
| Width | 37.0 |
| Fits | Toyota · 3 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with pre-greased, corrosion-resistant components.
Adjustable tie rod end. Includes mounting hardware for a straightforward installation.
Cross-references Dorman - OE Solutions 535-210, Mevotech Supreme MS86714 and 101-5787 for the same application. See all 9.
OE-Style Steering Tie Rod End for Prius
Delphi TA2711 is a front inner steering tie rod end built for precise steering linkage service on select Toyota Prius applications. It combines a straight, adjustable design with pre-greased construction and coated steel housing for dependable replacement performance.
Fits 2001-2003 Toyota Prius, inner.
- Front inner steering tie rod end for select Toyota Prius models
- Adjustable straight design for steering linkage alignment
- Pre-greased and ready for installation
- Steel housing with coated finish for corrosion resistance
- Male end configuration with clockwise thread direction on both ends
- Mounting hardware included
- Standard replacement part number TA2711
Detailed Product Overview
Delphi TA2711 is engineered as a standard replacement steering tie rod end for the front inner position. It features a steel tie rod body, polyoxymethylene (POM) bearing material, and a coated black finish. The part measures 246.0 mm from stud center to end and uses an adjustable straight layout to support steering linkage service where OE-style dimensions matter. Delphi applies dimensional and material analysis to help maintain fit between the original and replacement component, and the part is tested for temperature extremes and salt-spray exposure to reflect real-world undercar conditions. This part cross-references Dorman OE Solutions 535-210 for the same application.
Common Repair Applications
- Worn or loose steering feel in a Toyota Prius front inner linkage
- Excessive play at the steering tie rod end
- Uneven toe settings during front-end alignment
- Noise or clunking from steering movement
- Corrosion-related replacement of the original steering joint
Installation Notes and Tips
Confirm the vehicle is a 2001-2003 Toyota Prius with the front inner steering position before ordering. Because this is an adjustable tie rod end, alignment should be checked and set after installation. Inspect the mating steering components, threads, and boots during service, and replace any worn related parts at the same time. Delphi TA2711 is pre-greased and does not include a grease fitting or dust boot.
Quality Assurance
Delphi uses OE-focused engineering and validation methods for its steering portfolio, including dimensional checks and environmental testing for heat and corrosion exposure. TA2711 is built as a standard replacement part for consistent steering service on the listed Prius applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Toyota | Prius | Inner | — |
| 2002 | Toyota | Prius | Inner | — |
| 2001 | Toyota | Prius | Inner | — |
