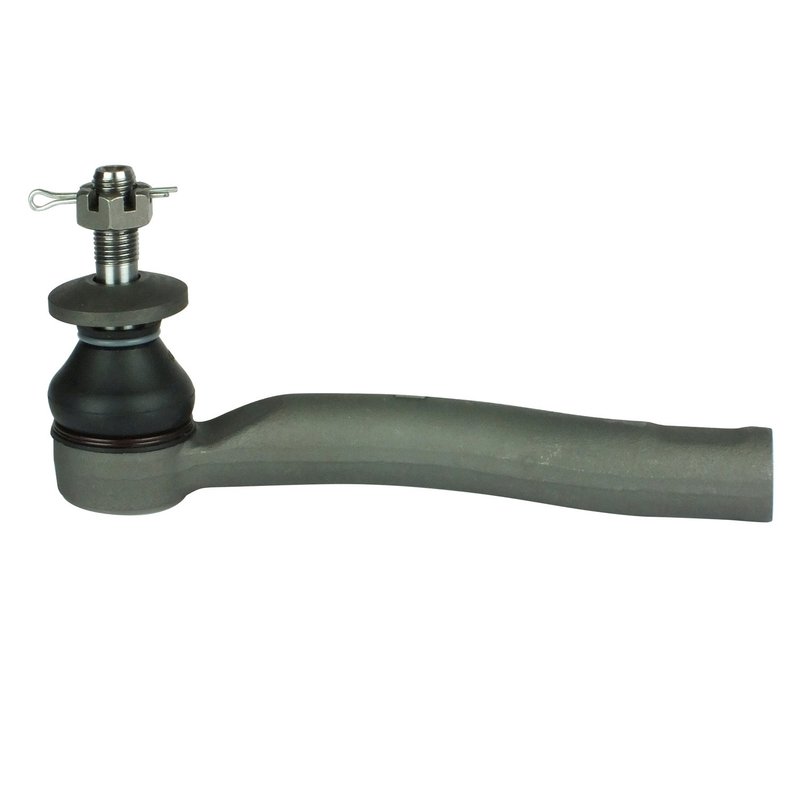

Delphi TA2842 Steering Tie Rod End - Left Outer
OE Quality 60-Day Returns
Delphi

Delphi TA2842 Steering Tie Rod End - Left Outer

Brand Delphi TA2842
Position Left Outer
Adjustable No
Bearing Material Plastic
Color Gray
Cone Outside Diameter 15.5
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Thread Diameter 0.472
End 1 Thread Diameter 12.0
End 1 Thread Direction Clockwise
End 2 Gender Female
End 2 Thread Diameter 0.551
End 2 Thread Diameter 14.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grease Fitting Included No
Greaseable No
Height 88.3
Housing Material Steel
Item Grade Standard Replacement
Length Stud Center to End 6.417
Length Stud Center to End 163.0
Mounting Hardware Included Yes
Position(s) Front Left Outer
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 0.886
Tube Diameter 22.5
Type Bent
Weight 1.6
Width 46.5
Fits Toyota · 6 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility.

Coated steel construction. Built for durability with a pre-greased, dust-booted design.

Includes mounting hardware. Ready for a straightforward steering tie rod end replacement.

Cross-references Beck/Arnley 101-6042, Mevotech Supreme MES80303 and MOOG Chassis Products ES80303 for the same application. See all 7.

$40.96Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $40.96
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

OE-Style Steering Tie Rod End for Prius

Delphi TA2842 is a front left outer steering tie rod end for 2004-2009 Toyota Prius applications. Built as a standard replacement part, it follows OE dimensional and material analysis to support proper steering geometry and consistent fitment.

Key Features

  • Fits 2004-2009 Toyota Prius, left outer front steering position
  • Delphi TA2842 steering tie rod end for OE-style replacement
  • Pre-greased design with no grease fitting required
  • Dust boot included to help protect the joint from contamination
  • Steel housing and steel tie rod construction with coated finish
  • Bent design with threaded stud and mounting hardware included
  • Clockwise thread direction on both ends for specified application

Detailed Description

Delphi TA2842 is engineered for the front left outer steering location on the Toyota Prius. It is built with a steel housing, steel tie rod, and chloroprene rubber dust boot, and it arrives pre-greased for service-ready installation. Delphi subjects its steering components to extreme temperature and salt-spray testing, then uses dimensional and material analysis to help maintain OE-level compatibility between the original part and the replacement component. This part cross-references MOOG Chassis Products ES80303 for the same application.

What It Helps Address

  • Loose or vague steering feel at the front left outer tie rod location
  • Excessive play in the steering linkage
  • Uneven tire wear caused by worn steering components
  • Clunking or knocking from the front steering assembly
  • Restoring proper toe adjustment after tie rod wear

Installation Notes and Tips

Verify the vehicle is a 2004-2009 Toyota Prius with the left outer front steering position before installation. Because this part is not adjustable, final alignment should be checked after replacement. Inspect the mating steering components, threads, and boot condition during service to confirm the repair is complete.

Quality Assurance

Delphi applies OE-focused testing to its steering portfolio, including exposure to extreme temperatures and extended salt-spray conditions, to support durability in real-world driving environments. TA2842 is a standard replacement steering tie rod end built to align with OE fit and material expectations.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2009ToyotaPriusLeft Outer—
2008ToyotaPriusLeft Outer—
2007ToyotaPriusLeft Outer—
2006ToyotaPriusLeft Outer—
2005ToyotaPriusLeft Outer—
2004ToyotaPriusLeft Outer—
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 101-6042Mevotech Supreme — MES80303MOOG Chassis Products — ES8030345047-49075ER04025TO74141TY-T610
