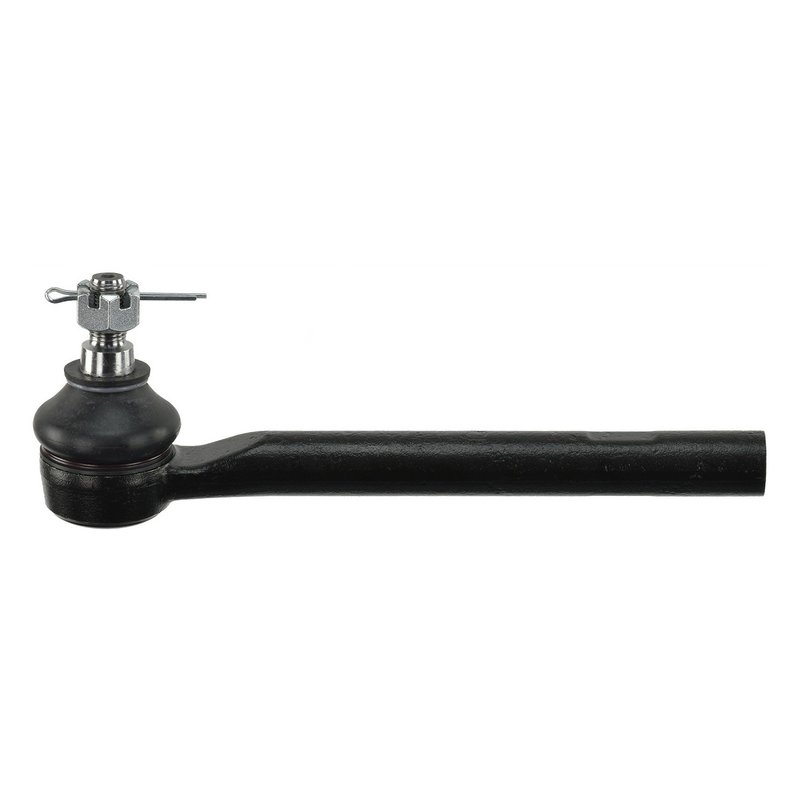

Delphi TA3053 Steering Tie Rod End - Outer

Delphi Steering Tie Rod End TA3053 Overview

The Delphi TA3053 steering tie rod end is designed specifically for Honda Odyssey models, providing reliable steering performance and durability. This component is engineered to meet OEM specifications, ensuring a precise fit and consistent handling.

• Compatible with Honda Odyssey vehicles
• Durable black coated finish for corrosion resistance
• Pre-greased with a dust boot made of chloroprene rubber
• Steel housing and tie rod material for strength
• Includes mounting hardware for straightforward installation

Technical Specifications and Features

The TA3053 tie rod end features a straight type design with a steel housing and tie rod material, ensuring structural integrity under demanding driving conditions. It comes pre-greased and includes a chloroprene rubber dust boot to protect internal components from dirt and moisture. The part has a width of 42.0 mm, height of 79.2 mm, and a tube diameter of 21.0 mm (0.827 inches). Both ends have clockwise thread directions, with End 1 thread diameter at 12.0 mm (0.472 inches) and End 2 thread diameter at 14.0 mm (0.551 inches). The bearing material is plastic, and the stud type is threaded, facilitating secure attachment. This tie rod end is not adjustable or greaseable and does not include a grease fitting.

Application and Problem Solving

This steering tie rod end is compatible with Honda Odyssey models and is designed to address common steering system issues such as:

• Excessive play or looseness in steering linkage
• Uneven or unstable steering response
• Noise or vibration from worn tie rod ends
• Steering misalignment or pulling
• Wear due to exposure to dirt and moisture

Installation Notes and Tips

Installation of the Delphi TA3053 tie rod end requires proper tools and alignment equipment. The included mounting hardware simplifies the replacement process. Since the part is pre-greased and includes a dust boot, additional lubrication is not necessary. Ensure the steering system is properly aligned after installation to maintain optimal vehicle handling and tire wear.

Quality Assurance and Warranty

Delphi manufactures the TA3053 tie rod end to meet strict quality standards, using durable steel and protective coatings to extend service life. While specific warranty details are not provided, Delphi parts typically adhere to OEM quality requirements, offering reliable performance for Honda Odyssey steering systems.
