Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

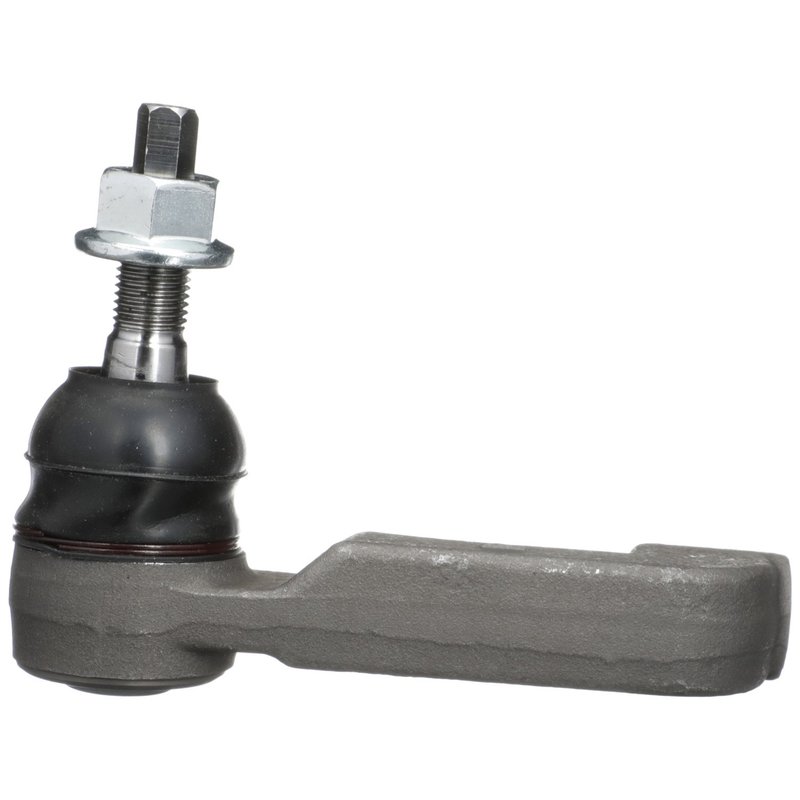

Delphi TA3150 Steering Tie Rod End - Right Outer
| Brand | Delphi TA3150 |
|---|---|
| Position | Right Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 18.8 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.551 |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Female |
| End 2 Thread Diameter | 0.63 |
| End 2 Thread Diameter | 16.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grade Type | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 107.3 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 147.0 |
| Length Stud Center to End | 124.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.965 |
| Tube Diameter | 24.5 |
| Type | Bent |
| Weight | 2.11 |
| Width | 46.7 |
| Fits | Jeep · 6 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a dust boot for added protection against wear.
Pre-greased design. Includes mounting hardware for a smoother installation.
Cross-references Dorman - Premium T3536XL, MOOG Chassis Products ES3536 and 5072444AA for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA3150 Right Outer Tie Rod End
Delphi TA3150 is a steering tie rod end built for the right outer position on select Jeep Liberty models. It combines OE-based dimensional analysis with materials and testing intended to match the demands of daily steering use.
Key Features
- Fits 2002-2007 Jeep Liberty, right outer
- Part number: TA3150
- Pre-greased design with dust boot included
- Steel tie rod and steel housing with coated finish
- Clockwise thread direction on both ends
- Standard replacement grade for steering service
- Mounting hardware included
- Cross-reference: MOOG Chassis Products ES3536
Product Details
This Delphi steering tie rod end is engineered for the right outer steering location on 2002-2007 Jeep Liberty applications. The TA3150 uses a bent design, male and female end configuration, and threaded stud construction to support precise steering linkage connection. Delphi applies OE-focused dimensional and material analysis to help ensure proper fitment between the original part and the aftermarket replacement.
Built with a steel housing and steel tie rod, the TA3150 includes a chloroprene rubber dust boot and a coated finish for added protection. It is pre-greased, non-greaseable, and supplied as a standard replacement part for steering repair work on Jeep Liberty models. The part number TA3150 is also referenced in the same application by MOOG Chassis Products ES3536.
Common Repair Applications
- Steering play or looseness at the right outer linkage
- Uneven front tire wear caused by worn steering components
- Clunking or knocking from the front steering system
- Loose or imprecise steering response on Jeep Liberty models
- Replacement of a worn outer tie rod end during front-end service
Installation Notes
Fits 2002-2007 Jeep Liberty, right outer. Verify thread direction, thread diameter, and steering position before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry and tire wear characteristics. The TA3150 is pre-greased and includes a dust boot, which supports straightforward steering linkage service.
Quality Assurance
Delphi uses OE safety technology and applies the same engineering approach to its aftermarket steering portfolio. This part is tested for extreme temperature exposure from below -40 degrees C to over 120 degrees C and is subjected to 720 hours of salt spray testing to evaluate durability. Delphi also performs dimensional and material analysis to support OE-style compatibility for the Jeep Liberty right outer tie rod end application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Jeep | Liberty | Right Outer | — |
| 2006 | Jeep | Liberty | Right Outer | — |
| 2005 | Jeep | Liberty | Right Outer | — |
| 2004 | Jeep | Liberty | Right Outer | — |
| 2003 | Jeep | Liberty | Right Outer | — |
| 2002 | Jeep | Liberty | Right Outer | — |
| No rows match your filter. | ||||
