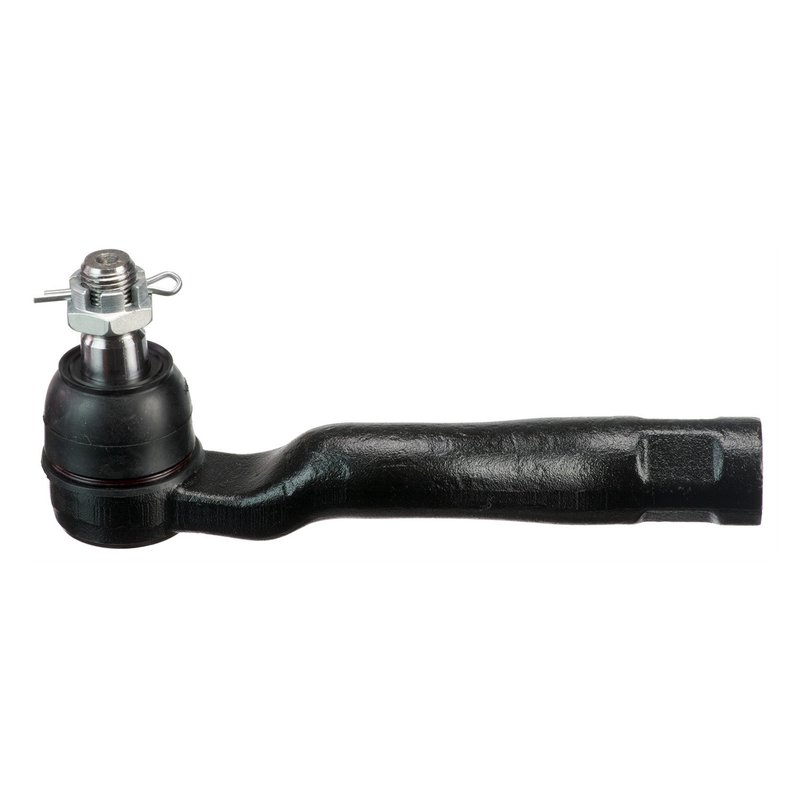

Delphi TA3191 Steering Tie Rod End - Left Outer
| Brand | Delphi TA3191 |
|---|---|
| Position | Left Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 20.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Thread Diameter | 0.63 |
| End 1 Thread Diameter | 16.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Female |
| End 2 Thread Diameter | 0.866 |
| End 2 Thread Diameter | 22.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 85.1 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 7.047 |
| Length Stud Center to End | 179.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Left Outer, Left Outer. For the position specific to your vehicle, refer to the Application tab. |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 1.201 |
| Tube Diameter | 30.5 |
| Type | Bent |
| Weight | 2.4 |
| Width | 50.5 |
| Fits | Lexus and Toyota · 26 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with corrosion resistance and a strong housing.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references Beck/Arnley 101-5826, Mevotech Supreme MS86635 and MOOG Chassis Products ES800313 for the same application. See all 7.
Delphi TA3191 Front Left Outer Tie Rod End
Delphi TA3191 is a standard replacement steering tie rod end for select Lexus LX570 and Toyota Land Cruiser applications. It is built with OE-focused dimensional and material analysis to support proper steering geometry and consistent fit at the front left outer position.
Key Features
- Part number TA3191
- Fits front left outer steering position
- Black coated finish with steel housing and steel tie rod material
- Pre-greased design with dust boot included
- Mounting hardware included
- Bent style tie rod end with threaded stud design
- Non-adjustable and non-greaseable construction
- Compatible with Lexus LX570 and Toyota Land Cruiser applications
Detailed Description
Delphi TA3191 is engineered as a standard replacement steering tie rod end for the left outer position on 2008-2011 Lexus LX570, 2013-2021 Lexus LX570, 2008-2011 Toyota Land Cruiser, and 2013-2021 Toyota Land Cruiser. The design uses a steel housing, plastic bearing material, and chloroprene rubber dust boot to support durable steering service in demanding road conditions. Delphi subjects its steering components to extreme temperature and salt-spray testing, along with dimensional and material analysis, to help maintain OE-level fit and performance characteristics. This part cross-references MOOG Chassis Products ES800313 for the same application.
Common Steering Issues This Part Addresses
- Excessive play in the front left outer steering linkage
- Clunking or looseness felt through the steering wheel
- Uneven tire wear caused by worn tie rod end joints
- Steering wander or reduced directional stability
- Failed dust boot or contaminated joint wear
Installation Notes and Tips
Verify the vehicle application before installation and confirm the front left outer position on the Lexus LX570 or Toyota Land Cruiser. After replacement, perform a professional wheel alignment to restore steering geometry and tire wear characteristics. Inspect the mating steering components for wear before final assembly.
Quality Assurance
Delphi applies OE-oriented testing and material validation to its aftermarket steering portfolio, including exposure to extreme temperatures and extended salt-spray testing. The TA3191 is built to support consistent fitment and dependable steering service for the specified Lexus and Toyota applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Lexus | LX570 | Left Outer | — |
| 2021 | Toyota | Land Cruiser | Left Outer | — |
| 2020 | Lexus | LX570 | Left Outer | — |
| 2020 | Toyota | Land Cruiser | Left Outer | — |
| 2019 | Lexus | LX570 | Left Outer | — |
| 2019 | Toyota | Land Cruiser | Left Outer | — |
| 2018 | Lexus | LX570 | Left Outer | — |
| 2018 | Toyota | Land Cruiser | Left Outer | — |
| 2017 | Lexus | LX570 | Left Outer | — |
| 2017 | Toyota | Land Cruiser | Left Outer | — |
| 2016 | Lexus | LX570 | Left Outer | — |
| 2016 | Toyota | Land Cruiser | Left Outer | — |
| 2015 | Lexus | LX570 | Left Outer | — |
| 2015 | Toyota | Land Cruiser | Left Outer | — |
| 2014 | Lexus | LX570 | Left Outer | — |
| 2014 | Toyota | Land Cruiser | Left Outer | — |
| 2013 | Lexus | LX570 | Left Outer | — |
| 2013 | Toyota | Land Cruiser | Left Outer | — |
| 2011 | Lexus | LX570 | Left Outer | — |
| 2011 | Toyota | Land Cruiser | Left Outer | — |
| 2010 | Lexus | LX570 | Left Outer | — |
| 2010 | Toyota | Land Cruiser | Left Outer | — |
| 2009 | Lexus | LX570 | Left Outer | — |
| 2009 | Toyota | Land Cruiser | Left Outer | — |
| 2008 | Lexus | LX570 | Left Outer | — |
| 2008 | Toyota | Land Cruiser | Left Outer | — |
