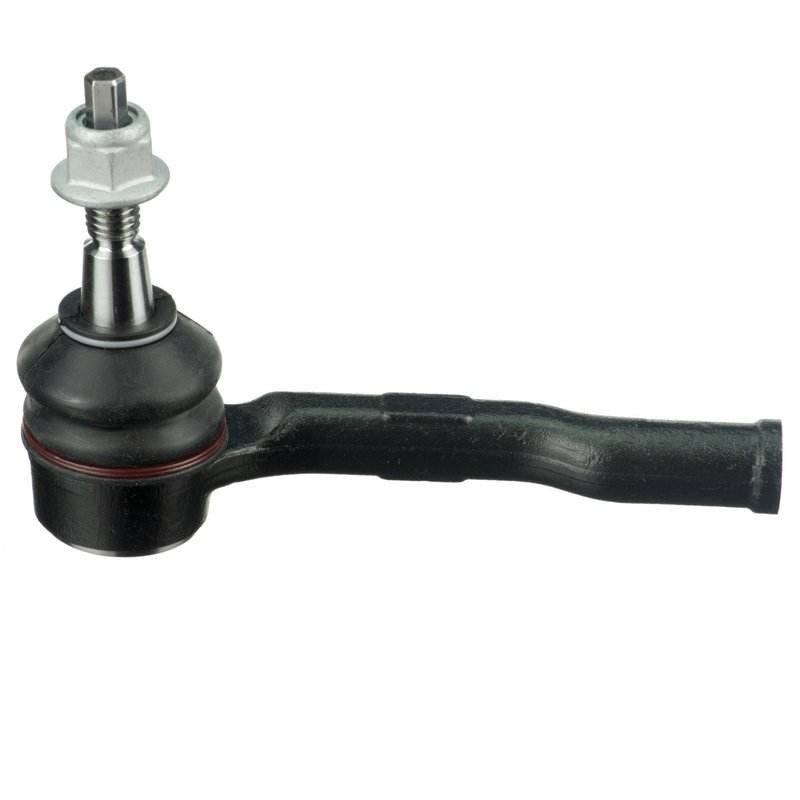

Delphi TA3249 Steering Tie Rod End - Left Outer
OE Quality 60-Day Returns
Delphi

Delphi TA3249 Steering Tie Rod End - Left Outer

Brand Delphi TA3249
Position Left Outer
Adjustable Yes
Bearing Material Polyoxymethilen (POM)
Color Black
Cone Outside Diameter 18.0
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Female
End 1 Thread Diameter 0.551
End 1 Thread Diameter 14.0
End 1 Thread Direction Clockwise
End 2 Gender Male
End 2 Thread Diameter 0.472
End 2 Thread Diameter 12.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.75
Friction Material Thickness Coated
Grade Standard
Grade Type Standard
Grease Fitting Included No
Height 109.0
Housing Material High Strength Steel
Item Grade Standard Replacement
Length Stud Center to End 5.63
Length Stud Center to End 143.0
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Type Bent
Weight 1.21
Width 44.0
Fits Chevrolet · 8 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the aftermarket part.

Coated steel construction. Built with a high-strength steel housing and steel tie rod for dependable steering support.

Pre-greased design. Includes a dust boot and no grease fitting for simpler service.

Cross-references MOOG Chassis Products ES801323 and 39008084 for the same application. See all 2.

$36.08Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $36.08
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA3249 Steering Tie Rod End

Delphi TA3249 is a standard replacement steering tie rod end built for the left outer position on select Chevrolet Cruze and Chevrolet Volt models. It combines OE-focused dimensional control with a coated, high-strength steel housing for dependable steering linkage service.

Key Features

  • Fits left outer steering applications on 2016-2019 Chevrolet Cruze and 2016-2019 Chevrolet Volt
  • Pre-greased design with a dust boot included
  • Adjustable bent tie rod end for steering linkage alignment
  • High strength steel housing with coated finish
  • Female/male end configuration with threaded stud design
  • Delphi part number TA3249

Detailed Description

This Delphi steering tie rod end is engineered for OE-style fit and material compatibility, using dimensional and material analysis to match the original application. It is built with a steel tie rod body, polyoxymethylene (POM) bearing material, and chloroprene rubber dust boot material, and it is tested for harsh temperature extremes and extended salt-spray exposure to support long-term steering performance. Delphi TA3249 is a direct-fit steering component for Chevrolet Cruze and Chevrolet Volt left outer service.

This part cross-references MOOG Chassis Products ES801323 and interchange number 39008084 for the same application.

What It Helps Address

  • Loose or imprecise steering response
  • Front-end steering play at the left outer linkage
  • Uneven tire wear caused by worn steering components
  • Clunking or knocking from the steering system
  • Alignment issues after tie rod end wear

Installation Notes and Tips

Install this tie rod end in the left outer steering position only. After replacement, a professional wheel alignment is recommended to restore steering geometry. Verify thread direction, thread diameter, and overall dimensions against the original part before installation on your Chevrolet Cruze or Chevrolet Volt.

Quality Assurance

Delphi applies OE-based engineering and validation to its steering portfolio, including temperature cycling and corrosion exposure testing. The TA3249 is built as a standard replacement part with OE-focused dimensional and material analysis for consistent fit and function.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2019ChevroletCruzeLeft Outer—
2019ChevroletVoltLeft Outer—
2018ChevroletCruzeLeft Outer—
2018ChevroletVoltLeft Outer—
2017ChevroletCruzeLeft Outer—
2017ChevroletVoltLeft Outer—
2016ChevroletCruzeLeft Outer—
2016ChevroletVoltLeft Outer—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Chassis Products — ES80132339008084
