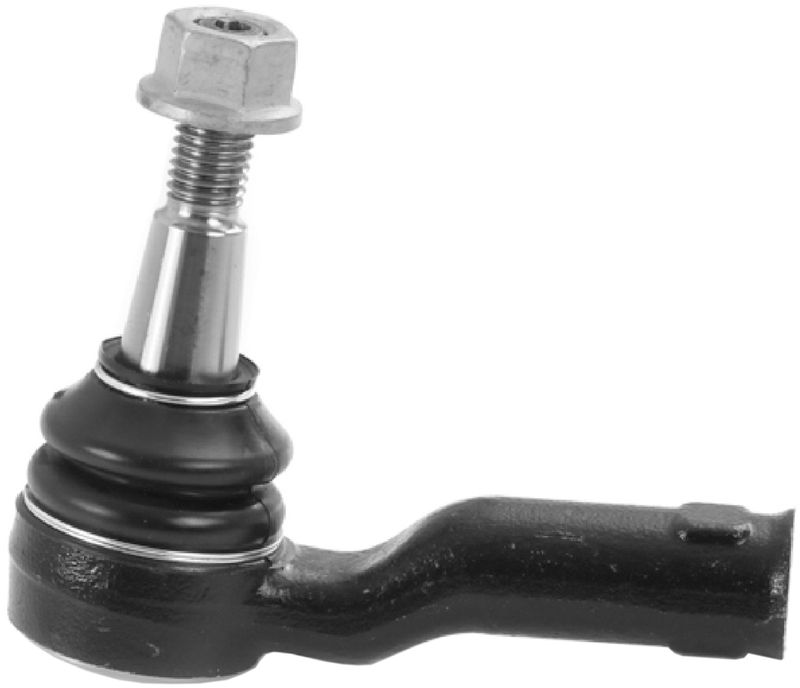

Delphi TA3423 Steering Tie Rod End - Front Outer
| Brand | Delphi TA3423 |
|---|---|
| Position | Front Outer |
| Thread Direction | Clockwise (right) |
| Reinforced | No |
| Color | Black |
| Shank Length | 1.500 |
| Shank Length | 38.10 |
| Washer Included | No |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Stud Length | 1.417 |
| Stud Length | 36.00 |
| Finish | Painted |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Bent |
| Cotter Pin Included | No |
| Mounting Hardware Included | No |
| Height | 95.50 |
| Grade Type | Standard replacement |
| Housing Material | Steel |
| Adjustable | Yes |
| Locking Nut Included | Yes |
| Greaseable | No |
| Adjusting Sleeve Included | No |
| Boot Color | Black |
| Weight | 1.874 |
| Steering Type | Power |
| Cone Outside Diameter | 0.902 |
| Cone Outside Diameter | 22.90 |
| Fits | Land Rover · 21 vehicles |
OE-inspired fit. Built from Delphi's OE steering expertise for aftermarket compatibility.
Extreme-condition tested. Withstands harsh temperatures and 720 hours of salt spray.
Pre-greased and sealed. Includes a dust boot for cleaner, lower-maintenance operation.
Cross-references Mevotech Supreme MS106206, Suspensia X25TE0134 and LR0 59261 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi Front Outer Tie Rod End TA3423
Delphi TA3423 is a front outer steering tie rod end built for OE-style replacement on select Land Rover applications. It features a pre-greased design, a dust boot, and a painted steel housing for service-ready steering repair on vehicles with power steering.
Key Features
- Front outer steering tie rod end for select Land Rover Discovery and Range Rover models
- Part number TA3423
- Clockwise (right) thread direction on both ends
- Pre-greased with dust boot included
- Steel housing with painted finish
- Adjustable design with locking nut included
- Standard replacement grade for OE-style steering service
- Fits power steering applications
Detailed Description
Delphi applies OE engineering knowledge to its aftermarket steering portfolio, and TA3423 reflects that approach with dimensional and material analysis focused on fit and function. This bent tie rod end uses a steel housing, threaded stud design, and rubber dust boot to support steering linkage service on Land Rover Discovery and Range Rover Sport models. The Delphi TA3423 is listed for front outer position use and is a direct replacement choice for maintaining steering geometry and response.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Loose or vague steering feel at the front end
- Clunking or knocking from worn steering linkage components
- Uneven tire wear caused by steering play
- Steering wheel wander or poor directional stability
- Front outer tie rod wear on Land Rover Discovery and Range Rover models
Installation Notes and Tips
Fits 2017-2023 Land Rover Discovery, Front Outer. Fits 2021-2022 Land Rover Range Rover Sport, Front Outer. Fits 2015-2019 Land Rover Range Rover Sport, Front Outer. Fits 2015-2021 Land Rover Range Rover, Front Outer.
Confirm thread direction, position, and steering linkage measurements before installation. After replacement, a professional wheel alignment is recommended to restore proper toe settings and steering wheel center.
Quality Assurance
Delphi subjects steering components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability and corrosion resistance. The brand also uses dimensional and material analysis to improve OE and aftermarket part compatibility.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Land Rover | Discovery | Front Outer | — |
| 2022 | Land Rover | Discovery | Front Outer | — |
| 2022 | Land Rover | Range Rover Sport | Front Outer | — |
| 2021 | Land Rover | Discovery | Front Outer | — |
| 2021 | Land Rover | Range Rover | Front Outer | — |
| 2021 | Land Rover | Range Rover Sport | Front Outer | — |
| 2020 | Land Rover | Discovery | Front Outer | — |
| 2020 | Land Rover | Range Rover | Front Outer | — |
| 2019 | Land Rover | Discovery | Front Outer | — |
| 2019 | Land Rover | Range Rover | Front Outer | — |
| 2019 | Land Rover | Range Rover Sport | Front Outer | — |
| 2018 | Land Rover | Discovery | Front Outer | — |
| 2018 | Land Rover | Range Rover | Front Outer | — |
| 2018 | Land Rover | Range Rover Sport | Front Outer | — |
| 2017 | Land Rover | Discovery | Front Outer | — |
| 2017 | Land Rover | Range Rover | Front Outer | — |
| 2017 | Land Rover | Range Rover Sport | Front Outer | — |
| 2016 | Land Rover | Range Rover | Front Outer | — |
| 2016 | Land Rover | Range Rover Sport | Front Outer | — |
| 2015 | Land Rover | Range Rover | Front Outer | — |
| 2015 | Land Rover | Range Rover Sport | Front Outer | — |
