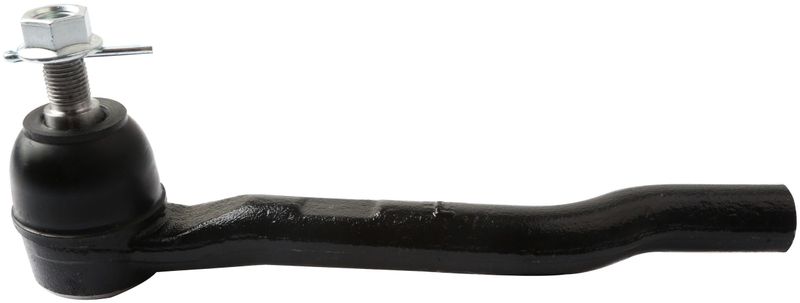

Delphi TA3566 Steering Tie Rod End - Front Left Outer
| Brand | Delphi TA3566 |
|---|---|
| Position | Front Left Outer |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Finish | Painted |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Bent |
| Mounting Hardware Included | Yes |
| Height | 78.30 |
| Grade Type | Standard replacement |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.63 |
| Cone Outside Diameter | 0.711 |
| Cone Outside Diameter | 18.05 |
| Bearing Material | Polyoxymethylene (pom) |
| End 1 Thread Direction | Clockwise (right) |
| End 2 Thread Direction | Clockwise (right) |
| Stud Type | Threaded |
| Head Drive Type | Hex |
| Length Stud Center to End | 206.50 |
| Length Stud Center to End | 8.130 |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| Fits | Honda · 8 vehicles |
OE expertise. Delphi brings original-equipment know-how to its aftermarket steering parts.
Extreme testing. Built to handle harsh temperatures and 720 hours of salt spray.
Direct-fit replacement. Standard replacement tie rod end for the front left outer position.
Cross-references Mevotech Supreme MS60667, 53560-THR-A02 and 1018730 for the same application. See all 3.
Front Left Outer Tie Rod End for Honda Odyssey
Delphi TA3566 is a steering tie rod end built for the front left outer position on select Honda Odyssey models. It combines OE-based dimensional analysis with materials chosen for consistent steering response and proper fitment.
- Fits 2018-2025 Honda Odyssey, front left outer
- Delphi OE-style aftermarket steering component
- Pre-greased design with dust boot included
- Steel housing and steel tie rod construction
- Painted black finish
- Standard replacement grade
- Mounting hardware included
- Part number: TA3566
Built for Steering Precision
Delphi TA3566 is engineered as a direct replacement steering tie rod end for the front left outer location on the Honda Odyssey. Delphi applies OE-focused testing and material analysis to help ensure dimensional accuracy, proper compatibility, and dependable performance in everyday driving. This part cross-references Mevotech Supreme MS60667 for the same application.
Common Problems This Part Can Address
- Loose or vague steering feel at the front end
- Clunking or play from a worn outer tie rod end
- Uneven tire wear caused by steering linkage wear
- Steering wheel wander or poor directional stability
- Inspection failure from excessive steering component movement
Installation Notes and Tips
Fits 2018-2025 Honda Odyssey, front left outer. Verify the steering linkage orientation, thread direction, and position before installation. This bent tie rod end uses male and female ends with clockwise thread direction on both ends, and it is pre-greased with a rubber dust boot already installed. After replacement, a professional wheel alignment is recommended to restore correct steering geometry.
Quality Assurance
Delphi subjects its steering components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt spray testing. The TA3566 also reflects Delphi’s OE dimensional and material analysis process for aftermarket steering parts.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Honda | Odyssey | Front Left Outer | — |
| 2024 | Honda | Odyssey | Front Left Outer | — |
| 2023 | Honda | Odyssey | Front Left Outer | — |
| 2022 | Honda | Odyssey | Front Left Outer | — |
| 2021 | Honda | Odyssey | Front Left Outer | — |
| 2020 | Honda | Odyssey | Front Left Outer | — |
| 2019 | Honda | Odyssey | Front Left Outer | — |
| 2018 | Honda | Odyssey | Front Left Outer | — |
