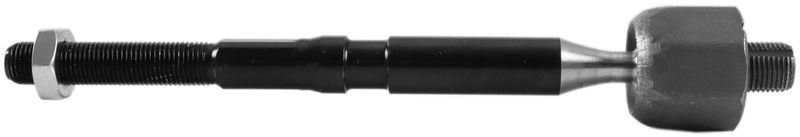

Delphi TA3619 Steering Tie Rod End - Front Inner
| Brand | Delphi TA3619 |
|---|---|
| Position | Front Inner |
| Length | 244.00 |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Finish | Painted |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Width | 40 |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Height | 40.00 |
| Grade Type | Standard replacement |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Boot Color | Black |
| Weight | 1.21 |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (right) |
| End 2 Thread Direction | Clockwise (right) |
| Stud Type | Threaded |
| Length Stud Center to End | 207.50 |
| Length Stud Center to End | 8.169 |
| Tie Rod Material | Steel |
| Fits | Scion and Toyota · 5 vehicles |
Standard replacement. OE expertise applied to the aftermarket steering portfolio.
Steel construction. Built with a steel housing and steel tie rod for dependable strength.
Pre-greased. Ready for installation with mounting hardware included.
Cross-references Mevotech Supreme MS86758, MOOG Chassis Products EV801327 and 45503-WB001 for the same application. See all 7.
Delphi TA3619 Front Inner Tie Rod End
Delphi TA3619 is a straight steering tie rod end for the front inner position, built as a standard replacement for select Toyota and Scion applications. It is pre-greased, uses a steel housing and steel tie rod construction, and includes mounting hardware for a direct service replacement.
Key Features
- Front inner steering tie rod end
- Straight design with male/male ends
- Pre-greased for service-ready installation
- Steel housing and steel tie rod material
- Painted black finish with black boot color
- Standard replacement grade
- Mounting hardware included
- Clockwise (right) thread direction on both ends
Detailed Description
Delphi TA3619 is engineered for steering service where precise linkage movement and consistent fit are required. Delphi applies OE-level dimensional and material analysis to its aftermarket steering portfolio, and this part is built to match the intended geometry for front inner steering applications. It is a direct replacement for 2019-2020 Toyota Yaris, 2017-2018 Toyota Yaris iA, and 2016 Scion iA, making it a practical choice when replacing worn steering components on these vehicles. This part number, TA3619, is also a useful reference when comparing replacement options for Toyota Yaris and Scion iA steering repair.
This part cross-references MOOG Chassis Products EV801327 for the same application.
What It Helps Address
- Steering play or looseness at the front inner linkage
- Uneven steering response caused by worn tie rod components
- Noisy or unstable steering feel during low-speed maneuvers
- Front-end alignment issues related to steering linkage wear
- Replacement needs after inspection of damaged or fatigued steering parts
Installation Notes and Tips
Install TA3619 at the front inner steering position only on the listed applications. Verify thread direction, linkage length, and alignment settings before final assembly. Because this tie rod end is pre-greased and non-greaseable, no grease fitting service is required during installation. After replacement, a professional wheel alignment is recommended to restore steering geometry.
Quality Assurance
Delphi subjects its steering components to extreme temperature and corrosion testing, including sub-zero and high-heat exposure as well as extended salt-spray testing. That validation supports OE-style durability for daily driving and routine steering service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Toyota | Yaris | 1.5L | L4 | Front Inner | — |
| 2019 | Toyota | Yaris | 1.5L | L4 | Front Inner | — |
| 2018 | Toyota | Yaris iA | — | — | Front Inner | — |
| 2017 | Toyota | Yaris iA | — | — | Front Inner | — |
| 2016 | Scion | iA | — | — | Front Inner | — |
