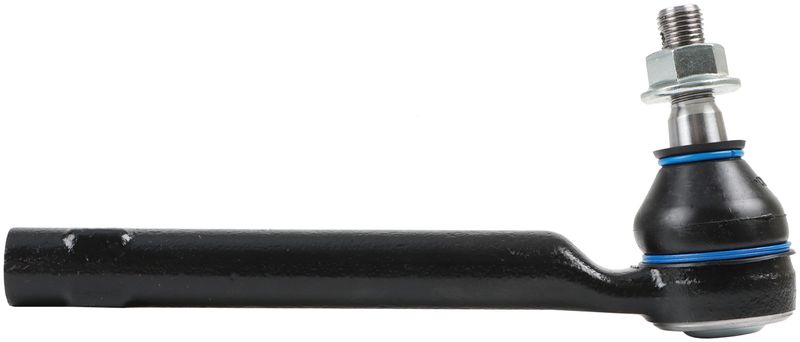

Delphi TA3843 Steering Tie Rod End - Outer
| Brand | Delphi TA3843 |
|---|---|
| Position | Outer |
| Thread Direction | Clockwise (right) |
| Reinforced | No |
| Color | Black |
| Washer Included | No |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Stud Length | 2.598 |
| Stud Length | 66.00 |
| Finish | Painted |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Straight |
| Cotter Pin Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Housing Material | Steel |
| Adjustable | Yes |
| Locking Nut Included | No |
| Greaseable | No |
| Adjusting Sleeve Included | No |
| Boot Color | Black |
| Weight | 1.378 |
| Steering Type | Power |
| Cone Outside Diameter | 0.630 |
| Cone Outside Diameter | 16.00 |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (right) |
| End 2 Thread Direction | Clockwise (right) |
| Fits | Mazda · 7 vehicles |
OE expertise. Delphi applies OE-level engineering to its aftermarket steering portfolio.
Standard replacement. A direct-fit tie rod end for straightforward steering service.
Steel construction. Built with a steel housing and tie rod for durable performance.
Cross-references Mevotech Supreme MS76624, MOOG Chassis Products ES801624 and Suspensia X32TE0794 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA3843 Outer Tie Rod End
Delphi TA3843 is an outer steering tie rod end built for power steering applications and engineered as a standard replacement for the OE part. It is a straight, adjustable tie rod end with a pre-greased design, black painted finish, and included dust boot, castle nut, cotter pin, and mounting hardware.
Compatible with 2016-2022 Mazda CX-9 outer steering applications, this Delphi tie rod end is built to match OE dimensional and material requirements for proper fit and steering response. The TA3843 is a practical choice when replacing worn outer steering linkage components on a Mazda CX-9.
Key Features
- Delphi TA3843 outer steering tie rod end
- Fits 2016-2022 Mazda CX-9, outer
- Clockwise (right) thread direction on both ends
- Straight, adjustable design for steering linkage service
- Pre-greased with dust boot included
- Steel housing and steel tie rod material
- Black painted finish
- Castle nut and cotter pin included
- Standard replacement grade
Detailed Description
Delphi applies OE-focused engineering to its aftermarket steering portfolio, and the TA3843 reflects that approach with dimensional and material analysis aimed at OE-style fitment. The part is tested for temperature extremes and salt-spray exposure to help verify durability in demanding steering environments. For drivers servicing a Mazda CX-9 outer tie rod end, this part number offers a direct replacement path with the correct threaded configuration and included boot protection.
This part cross-references MOOG Chassis Products ES801624 for the same application.
Common Symptoms It May Address
- Loose or vague steering feel
- Front-end wandering or poor tracking
- Uneven tire wear linked to worn steering linkage
- Clunking or play from the outer tie rod area
- Steering alignment issues after component wear
Installation Notes and Tips
Verify thread direction, steering position, and vehicle fitment before installation. After replacing the outer tie rod end, a professional wheel alignment is recommended to restore steering geometry. Inspect the mating steering components, boot condition, and hardware condition during service to confirm the repair is complete.
Quality Assurance
Delphi uses OE-based safety and performance engineering in its steering components, with testing that includes extreme temperature exposure and extended salt-spray evaluation. The TA3843 is built as a standard replacement part for consistent fit and dependable steering service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Mazda | CX-9 | Outer | — |
| 2021 | Mazda | CX-9 | Outer | — |
| 2020 | Mazda | CX-9 | Outer | — |
| 2019 | Mazda | CX-9 | Outer | — |
| 2018 | Mazda | CX-9 | Outer | — |
| 2017 | Mazda | CX-9 | Outer | — |
| 2016 | Mazda | CX-9 | Outer | — |
