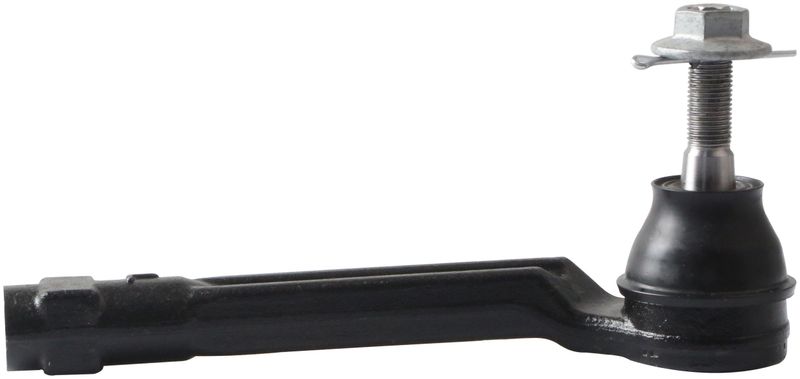

Delphi TA3845 Steering Tie Rod End - Left Outer
| Brand | Delphi TA3845 |
|---|---|
| Position | Left Outer |
| Thread Direction | Clockwise (right) |
| Reinforced | No |
| Color | Black |
| Washer Included | No |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Stud Length | 3.130 |
| Stud Length | 79.50 |
| Finish | Painted |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Straight |
| Cotter Pin Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Housing Material | Steel |
| Adjustable | Yes |
| Locking Nut Included | Yes |
| Greaseable | No |
| Adjusting Sleeve Included | No |
| Boot Color | Black |
| Weight | 1.788 |
| Steering Type | Power |
| Cone Outside Diameter | 0.519 |
| Cone Outside Diameter | 13.17 |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (right) |
| End 2 Thread Direction | Clockwise (right) |
| Fits | Hyundai and Kia · 3 vehicles |
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering parts.
Extreme-condition tested. Built to handle subzero cold, high heat, and long salt-spray exposure.
Pre-greased design. Ready for smoother service with a dust boot and mounting hardware included.
Cross-references Mevotech Supreme MS90686 and 56820N9100 for the same application. See all 2.
OE-Style Steering Tie Rod End
Delphi TA3845 is a standard replacement steering tie rod end built for the left outer position on select Hyundai Tucson and Kia Sportage models. It uses OE-focused dimensional and material analysis to support proper steering geometry and consistent fitment.
- Fits 2022-2023 Hyundai Tucson, left outer
- Fits 2023 Kia Sportage, left outer
- Clockwise (right) thread direction on both ends
- Pre-greased with a dust boot included
- Steel housing with painted finish and black boot
- Adjustable straight design for power steering applications
- Locking nut and mounting hardware included
Built for Steering Precision
Delphi TA3845 tie rod end is engineered as an OE-style steering replacement for the left outer side. It features a straight, adjustable design with a threaded stud, steel housing, rubber dust boot, and pre-greased construction to support smooth steering response and secure connection at the steering linkage. This part cross-references Mevotech Supreme MS90686 for the same application.
Common Repair Uses
- Restores steering feel when the outer tie rod end is worn
- Addresses looseness or play in the front steering linkage
- Helps correct clunking or knocking from the left front suspension area
- Supports proper toe alignment after steering component wear
- Replaces a damaged or corroded left outer tie rod end
Installation Notes
Verify left outer fitment before installation on 2022-2023 Hyundai Tucson and 2023 Kia Sportage applications. Because this is an adjustable steering component, alignment should be checked after replacement. Confirm thread direction, stud dimensions, and steering linkage condition during service. Delphi TA3845 is a direct-fit replacement for the listed applications and is also referenced by OE part number 56820N9100.
Quality Assurance
Delphi applies OE engineering standards to its aftermarket steering portfolio and validates parts through temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt-spray testing. That testing approach supports consistent material durability and fit accuracy for Delphi TA3845.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Hyundai | Tucson | Left Outer | — |
| 2023 | Kia | Sportage | Left Outer | — |
| 2022 | Hyundai | Tucson | Left Outer | — |
