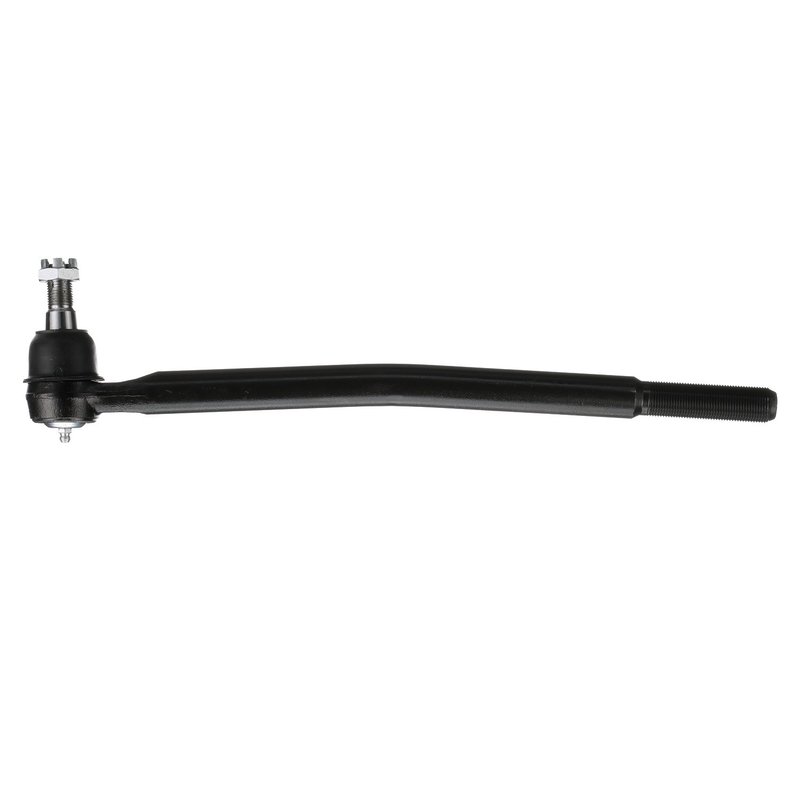

Delphi TA5039 Steering Tie Rod End - Left Inner
| Brand | Delphi TA5039 |
|---|---|
| Position | Left Inner |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 20.8 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.63 |
| End 1 Thread Diameter | 16.0 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.875 |
| End 2 Thread Diameter | 22.225 |
| End 2 Thread Direction | Counterclockwise |
| End 2 Threads Per Inch | 16 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Height | 106.2 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 445.0 |
| Length Stud Center to End | 16.587 |
| Length Stud Center to End | 421.3 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 1.039 |
| Tube Diameter | 26.4 |
| Type | Bent |
| Weight | 4.37 |
| Width | 45.0 |
| Fits | Ford · 6 vehicles |
Standard replacement. OE expertise and dimensional analysis help match the original part.
Coated steel construction. Built for durability with a black finish and steel housing.
Greaseable design. Includes a grease fitting, pre-greased, and a dust boot.
Cross-references Dorman - Premium TI85171PR, MOOG Chassis Products ES800465 and AC3Z 3A131-MA for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA5039 Left Inner Tie Rod End
Delphi TA5039 is a steering tie rod end built for the left inner position on select Ford Super Duty trucks. It combines OE-based dimensional analysis with durable materials to support precise steering response in demanding service conditions.
Key Features
- Fits 2008-2010 Ford F-250 Super Duty, left inner
- Fits 2008-2010 Ford F-350 Super Duty, left inner
- Standard replacement steering tie rod end
- Steel housing and steel tie rod construction
- Pre-greased with grease fitting included
- Dust boot included for joint protection
- Coated black finish for added corrosion resistance
- Non-adjustable bent design
- Mounting hardware included
Detailed Description
The Delphi TA5039 steering tie rod end is engineered for the left inner steering location on 2008-2010 Ford F-250 Super Duty and 2008-2010 Ford F-350 Super Duty models. Delphi applies OE-focused dimensional and material analysis to help ensure proper fitment and consistent steering geometry in aftermarket service. The part is built with a steel housing, steel tie rod material, a coated finish, and a chloroprene rubber dust boot to help protect the joint from contamination. It is pre-greased, greaseable, and includes a grease fitting for serviceability. Delphi TA5039 also cross-references MOOG Chassis Products ES800465 and Dorman Premium TI85171PR for the same application.
What This Part Helps Address
- Loose or vague steering feel at the left inner tie rod location
- Clunking or play caused by worn steering linkage components
- Uneven steering response from a deteriorated tie rod end
- Contamination entering the joint through a damaged dust boot
- Corrosion-related wear in high-exposure steering service
Installation Notes and Tips
Verify left inner position and thread specifications before installation. This part is not adjustable, so steering linkage measurements should be checked during service to help maintain alignment settings. Because it is a steering component on Ford F-250 Super Duty and Ford F-350 Super Duty applications, professional alignment is recommended after replacement. Confirm the existing steering hardware and thread direction match the vehicle application before assembly.
Quality Assurance
Delphi subjects its steering components to extreme temperature and salt-spray testing and uses OE-level dimensional and material analysis to support fit and durability in aftermarket use. Part number TA5039 is built as a standard replacement for select Ford Super Duty steering service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | RWD | Left Inner | — |
| 2010 | Ford | F-350 Super Duty | RWD | Left Inner | — |
| 2009 | Ford | F-250 Super Duty | RWD | Left Inner | — |
| 2009 | Ford | F-350 Super Duty | RWD | Left Inner | — |
| 2008 | Ford | F-250 Super Duty | RWD | Left Inner | — |
| 2008 | Ford | F-350 Super Duty | RWD | Left Inner | — |
