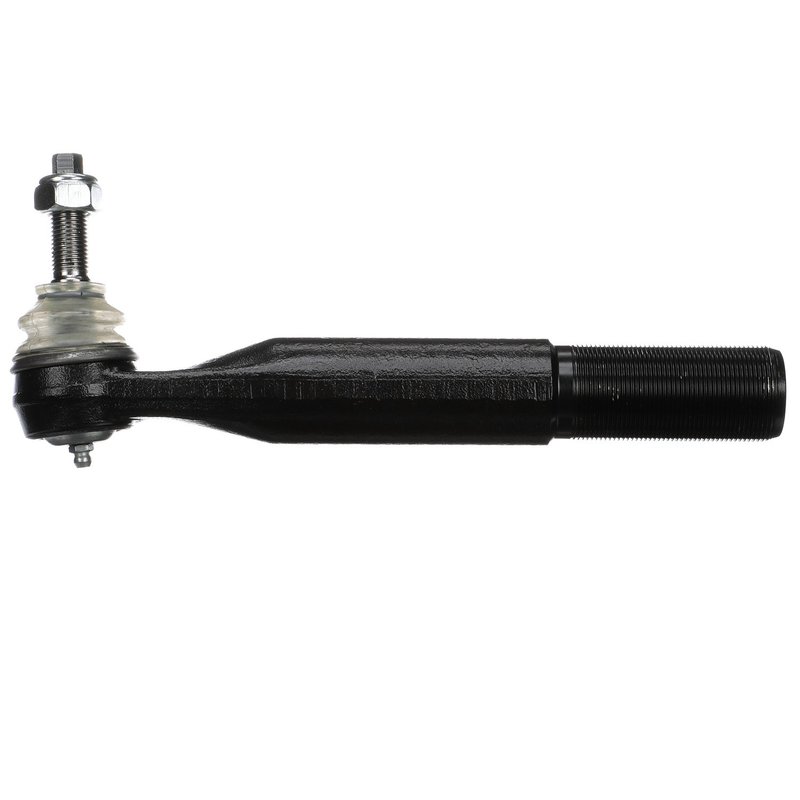

Delphi TA5044 Steering Tie Rod End - Right Outer
OE Quality 60-Day Returns
Delphi

Delphi TA5044 Steering Tie Rod End - Right Outer

Brand Delphi TA5044
Position Right Outer
Adjustable No
Bearing Material Plastic
Color Black
Cone Outside Diameter 18.4
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Male
End 1 Thread Diameter 0.551
End 1 Thread Diameter 14.0
End 1 Thread Direction Clockwise
End 2 Gender Male
End 2 Thread Diameter 1.375
End 2 Thread Diameter 44.31
End 2 Thread Direction Clockwise
End 2 Threads Per Inch 16
Friction Material Thickness Coated
Height 104.6
Housing Material Steel
Item Grade Standard Replacement
Length 274.0
Length Stud Center to End 9.843
Length Stud Center to End 250.0
Mounting Hardware Included Yes
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 1.496
Tube Diameter 38.0
Type Straight
Weight 4.47
Width 46.5
Fits Ram and Dodge · 22 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility.

Coated steel construction. Built for durability with pre-greased components and a dust boot.

Straight tie rod end. Includes mounting hardware for a complete installation.

Cross-references MOOG Chassis Products DS300044, MOOG Chassis Products ES800532 and 68038055AA for the same application. See all 4.

$54.79Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $54.79
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

OE-Style Steering Tie Rod End for Ram

Delphi TA5044 is a steering tie rod end built for the right outer position on select Ram and Dodge Ram trucks. It combines OE-based dimensional analysis with durable materials to support precise steering response and consistent fitment on listed applications.

  • Right outer steering tie rod end for select Ram 2500 and Ram 3500 applications
  • Pre-greased design for ready-to-install service
  • Dust boot included to help protect the joint from road contamination
  • Steel housing and steel tie rod construction with a coated finish
  • Straight, non-adjustable design for direct replacement use
  • Mounting hardware included
  • Compatible with 2013 Ram 2500, 2013 Ram 3500, 2011-2012 Ram 2500, 2011-2012 Ram 3500, 2009-2010 Dodge Ram 2500, 2003-2010 Dodge Ram 3500, and 2003-2008 Dodge Ram 2500, right outer

Built for OE-Level Fit and Durability

Delphi TA5044 is engineered as a standard replacement steering tie rod end for the right outer steering position. Delphi applies OE-focused dimensional and material analysis to help ensure proper compatibility with the original steering geometry on Ram 2500, Ram 3500, and Dodge Ram 2500/Dodge Ram 3500 trucks. The part features a steel housing, plastic bearing material, chloroprene rubber dust boot, and a pre-greased joint to support dependable operation in demanding steering service. This part cross-references MOOG Chassis Products (e.g., DS300044, ES800532) for the same application.

Common Steering Issues This Part Addresses

  • Loose or vague steering feel at the right outer tie rod location
  • Excessive play in the steering linkage
  • Uneven tire wear caused by worn steering components
  • Noise or clunking from a worn tie rod end joint
  • Contamination-related wear from a damaged or missing dust boot

Installation Notes and Tips

Verify the vehicle’s year, make, model, and right outer steering position before installation. This Delphi TA5044 tie rod end uses a straight, non-adjustable design with male threaded ends and clockwise thread direction at both ends. After installation, inspect steering linkage condition and perform a professional alignment to confirm proper toe settings and steering wheel centering.

Quality Assurance

Delphi subjects its steering components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt-spray testing. That validation supports OE-style durability for Ram and Dodge Ram steering service, including the TA5044 right outer tie rod end.

Related reading

This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2013Ram25004WDRight Outer—
2013Ram3500—Right Outer—
2012Ram25004WDRight OuterBracket Mounted Steering Tie Rod End
2012Ram3500—Right OuterBracket Mounted Steering Tie Rod End
2011Ram25004WDRight OuterBracket Mounted Steering Tie Rod End
2011Ram3500—Right OuterBracket Mounted Steering Tie Rod End
2010DodgeRam 25004WDRight Outer—
2010DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2009DodgeRam 25004WDRight Outer—
2009DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2008DodgeRam 25004WDRight OuterBracket Mounted Steering Tie Rod End
2008DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2007DodgeRam 25004WDRight OuterBracket Mounted Steering Tie Rod End
2007DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2006DodgeRam 25004WDRight OuterBracket Mounted Steering Tie Rod End
2006DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2005DodgeRam 25004WDRight OuterBracket Mounted Steering Tie Rod End
2005DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2004DodgeRam 25004WDRight OuterBracket Mounted Steering Tie Rod End
2004DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
2003DodgeRam 25004WDRight OuterBracket Mounted Steering Tie Rod End
2003DodgeRam 3500—Right OuterBracket Mounted Steering Tie Rod End
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Chassis Products — DS300044MOOG Chassis Products — ES80053268038055AA68038055AD
