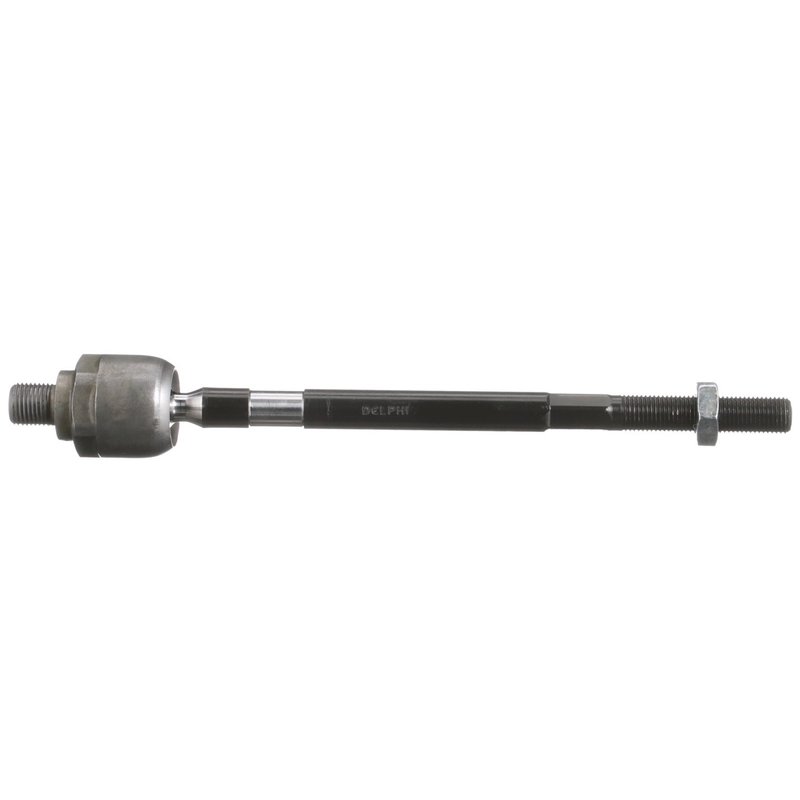

Delphi TA5051 Steering Tie Rod End - Right Inner
| Brand | Delphi TA5051 |
|---|---|
| Position | Right Inner |
| Adjustable | Yes |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Dust Boot Included | No |
| End 1 Gender | Male |
| End 1 Thread Diameter | 16.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grade Type | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 37.0 |
| Housing Material | High Strength Steel |
| Item Grade | Standard Replacement |
| Length | 311.0 |
| Length Stud Center to End | 8.937 |
| Length Stud Center to End | 227.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Tie Rod Material | Steel |
| Tube Diameter | 0.571 |
| Tube Diameter | 14.5 |
| Type | Straight |
| Weight | 0.99 |
| Width | 37.0 |
| Fits | Mazda · 1 vehicle |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a high-strength steel housing and steel tie rod.
Pre-greased design. Includes mounting hardware for a smoother install.
Cross-references EV255 and G037-32-2400 for the same application. See all 2.
Delphi TA5051 Right Inner Tie Rod End
Delphi TA5051 is a steering tie rod end built for the right inner position on the 1987 Mazda 626. It combines a straight, adjustable design with pre-greased construction and OE-focused dimensional control for a precise steering linkage replacement.
Key Features
- Fits 1987 Mazda 626, right inner
- Part number TA5051
- Straight, adjustable tie rod end design
- Pre-greased for service-ready installation
- High-strength steel housing with coated finish
- Steel tie rod material with POM bearing material
- Mounting hardware included
- Male-to-male end configuration
Detailed Description
Delphi TA5051 is a standard replacement steering tie rod end for the right inner steering position on the 1987 Mazda 626. Delphi applies OE-level dimensional and material analysis to help ensure proper fit between the replacement part and the original steering system. The component is built with a high-strength steel housing, steel tie rod material, and a coated black finish for added corrosion resistance. It is pre-greased, adjustable, and uses a straight design with 16.0 mm and 14.0 mm thread diameters at the ends, both with clockwise thread direction and 1.5 pitch. This part cross-references Monroe Shocks & Struts (e.g., EV255, G037-32-2400) for the same application.
What This Part Helps Address
- Loose or vague steering feel at the right inner linkage
- Excessive play in the steering system
- Uneven front-end response during turning
- Wear-related steering correction issues
- Replacement needs after tie rod end damage or corrosion
Installation Notes and Tips
Confirm the right inner position before installation and verify thread direction, pitch, and diameter against the original part. Because this is an adjustable steering component, alignment should be checked after installation. Inspect adjacent steering linkage parts for wear before completing the repair on the Mazda 626.
Quality Assurance
Delphi subjects steering components to extreme temperature and salt-spray testing and uses OE-based material and dimensional analysis to support consistent fit and performance. The TA5051 is built as a standard replacement part for steering service on the 1987 Mazda 626.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1987 | Mazda | 626 | Right Inner | — |
