Delphi TA5054 Steering Tie Rod End - Right Outer
OE Quality 60-Day Returns
Delphi

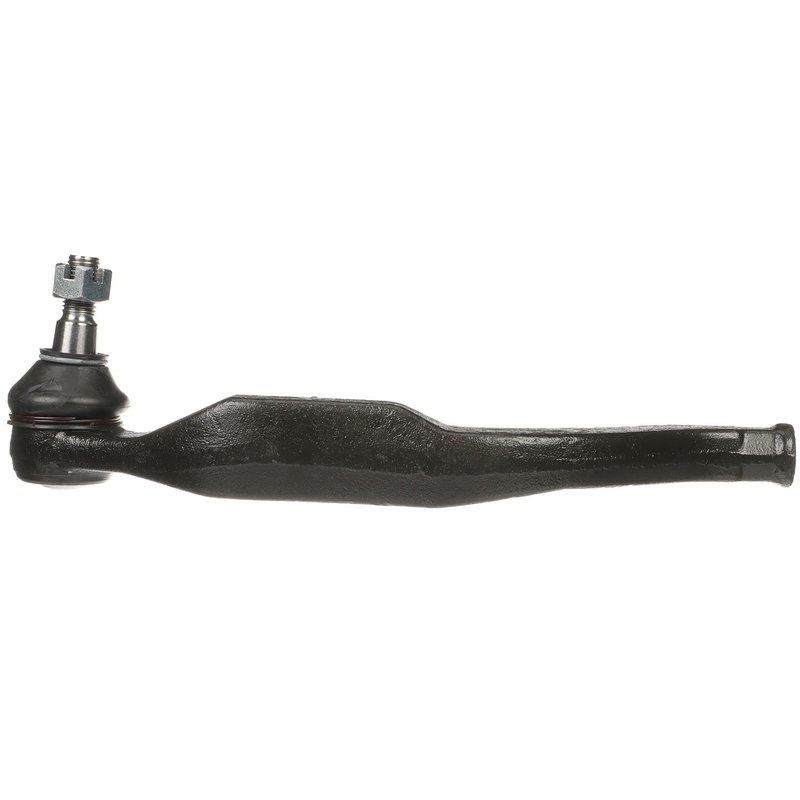

Delphi TA5054 Steering Tie Rod End - Right Outer

Brand Delphi TA5054
Position Right Outer
Adjustable No
Bearing Material Plastic
Color Black
Cone Outside Diameter 16.0
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Thread Diameter 0.472
End 1 Thread Diameter 12.0
End 1 Thread Direction Clockwise
End 2 Gender Female
End 2 Thread Diameter 0.551
End 2 Thread Diameter 14.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grease Fitting Included No
Greaseable No
Height 80.2
Housing Material Steel
Item Grade Standard Replacement
Length 267.0
Length Stud Center to End 9.685
Length Stud Center to End 246.0
Mounting Hardware Included Yes
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 0.709
Tube Diameter 18.0
Type Bent
Weight 1.32
Width 72.2
Fits Acura · 5 vehicles

Standard replacement. OE expertise and dimensional analysis help match the original part.

Coated steel construction. Built for durability with a black finish and steel housing.

Pre-greased design. Includes a dust boot and mounting hardware for easier service.

Cross-references 101-4322 for the same application. See all 1.

$57.66Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $57.66
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

OE-Style Steering Tie Rod End

Delphi TA5054 is a steering tie rod end for the right outer position on select Acura Legend models. Built as a standard replacement part, it supports precise steering response and consistent front-end alignment on 1991-1995 Acura Legend applications.

Key Features

  • Fits 1991-1995 Acura Legend, right outer
  • Part number TA5054
  • Pre-greased design with dust boot included
  • Coated steel housing and steel tie rod construction
  • Bent, non-adjustable design for direct replacement use
  • Clockwise thread direction at both ends
  • Mounting hardware included
  • OE-focused dimensional and material analysis for application match

Product Details

Delphi TA5054 is engineered for the steering system on the Acura Legend, with OE-based dimensional and material analysis used to support proper fit and function. Delphi subjects its steering components to extreme temperature cycling and extended salt-spray exposure during validation, helping confirm durability in demanding road conditions. The black coated finish, steel housing, chloroprene rubber dust boot, and pre-greased construction are selected to support long-term service in the right outer steering position. This part cross-references Monroe Shocks & Struts (e.g., 101-4322) for the same application.

Common Problems It Can Help Address

  • Loose or vague steering feel at the front end
  • Uneven tire wear caused by worn steering linkage
  • Clunking or play from a worn outer tie rod end
  • Steering pull related to degraded suspension and steering geometry
  • Difficulty maintaining alignment on Acura Legend steering repairs

Installation Notes and Tips

Verify the right outer position before installation and confirm thread direction, thread diameter, and overall dimensions against the removed part. After replacement, a professional wheel alignment is recommended to restore steering geometry and tire wear characteristics. TA5054 is a direct steering service part for 1991-1995 Acura Legend models, so matching the vehicle position and hardware condition is important during installation.

Quality Assurance

Delphi applies OE-focused testing and material validation to its aftermarket steering portfolio, including temperature and corrosion exposure checks. TA5054 is built as a standard replacement tie rod end for dependable steering service on the Acura Legend.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1995AcuraLegendRight Outer—
1994AcuraLegendRight Outer—
1993AcuraLegendRight Outer—
1992AcuraLegendRight Outer—
1991AcuraLegendRight Outer—
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
101-4322
