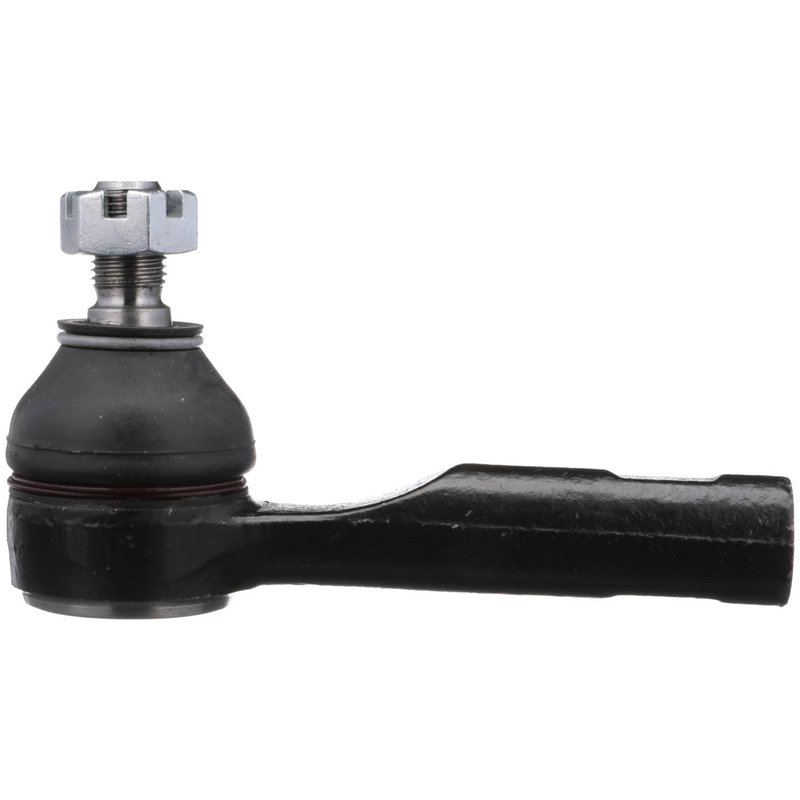

Delphi TA5091 Steering Tie Rod End - Outer

Delphi Outer Steering Tie Rod End TA5091

Delphi TA5091 is an outer steering tie rod end built for Nissan steering systems that need a standard replacement with OE-focused dimensional accuracy. It is pre-greased, includes a dust boot, and uses a coated steel housing for dependable service in everyday driving conditions.

Key Features

• Outer steering tie rod end for the steering linkage
• Pre-greased design with no grease fitting
• Dust boot included to help protect the joint
• Steel housing with coated finish and black color
• Threaded stud design with clockwise thread direction on both ends
• Standard replacement grade for direct service use
• Mounting hardware included
• Non-adjustable, non-greaseable construction

Detailed Description

Delphi TA5091 is engineered as an outer tie rod end for select Nissan Sentra, Altima, 200SX, 240SX, and Pulsar NX applications. Delphi applies OE-based dimensional and material analysis to support proper fit and steering geometry, while the part is tested for temperature extremes and salt spray exposure to reflect demanding real-world conditions. This part cross-references MOOG Chassis Products ES2333 for the same application.

For shoppers searching for a Nissan Sentra outer tie rod end, Nissan Altima steering tie rod end, or Delphi TA5091 replacement, this component provides a direct-service solution for the listed vehicles and positions. It is a standard replacement part for outer steering service on compatible Nissan models.

Vehicle Fitment

• Fits 1997-2006 Nissan Sentra, Outer, Non-Greasable
• Fits 1997-2001 Nissan Altima, Outer, Non-Greasable
• Fits 1998 Nissan 200SX, Outer, From 10/1997; Non-Greasable
• Fits 1995-1997 Nissan 200SX, Outer
• Fits 1996 Nissan Altima, Outer, From 02/1996; Non-Greasable
• Fits 1986-1996 Nissan Sentra, Outer
• Fits 1989-1994 Nissan 240SX, Outer
• Fits 1987-1990 Nissan Pulsar NX, Outer

Installation Notes and Tips

Confirm the outer tie rod end thread size, pitch, and orientation before installation. This part uses a 12 mm thread diameter, 1.25 thread pitch, and clockwise thread direction on both ends. Always inspect the steering linkage, alignment settings, and adjacent components during replacement, and perform a wheel alignment after installation.

Quality Assurance

Delphi builds this steering component using OE-focused engineering and validation methods. The part is exposed to temperature testing below -40 degrees C and above 120 degrees C, along with extended salt spray testing, to support durability in steering service. Delphi TA5091 is a standard replacement tie rod end for the listed Nissan applications.
