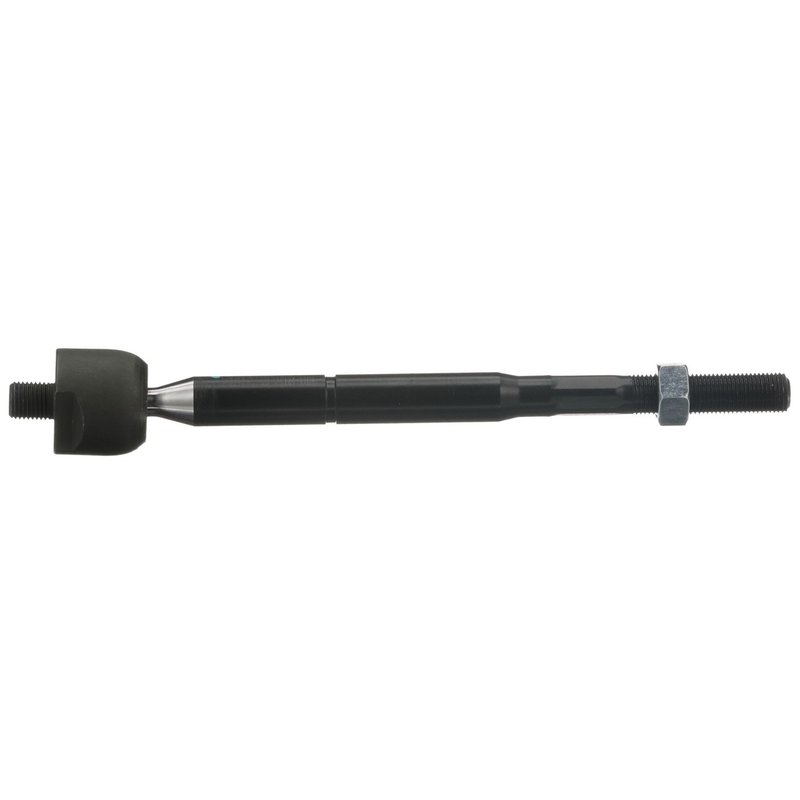

Delphi TA5124 Steering Tie Rod End - Inner

Brand Delphi TA5124
Position Inner
Adjustable No
Bearing Material Polyoxymethilen (POM)
Color Black
Cone Outside Diameter 0.71
Cone Outside Diameter 18.0
Dust Boot Included No
End 1 Gender Male
End 1 Thread Diameter 0.591
End 1 Thread Diameter 15.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Thread Diameter 0.551
End 2 Thread Diameter 14.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grade Standard
Grade Type Standard
Grease Fitting Included No
Greaseable No
Height 38.1
Housing Material Steel
Item Grade Standard Replacement
Length 278.9
Length Stud Center to End 9.55
Length Stud Center to End 242.5
Mounting Hardware Included Yes
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Type Straight
Weight 0.88
Width 38.1
Fits Toyota · 10 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility.

Coated steel construction. Built with a steel housing and tie rod for added durability.

Pre-greased design. Ready for installation with mounting hardware included.

Cross-references Beck/Arnley 101-4462, MOOG Chassis Products EV409 and 535-141 for the same application. See all 5.

$34.51Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $34.51
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

OE-Style Inner Tie Rod End

Delphi TA5124 is a steering tie rod end for the inner position on select Toyota Tacoma applications. Built with OE-focused dimensional and material analysis, it supports precise steering linkage replacement for 1995-2004 Toyota Tacoma inner steering service.

  • Fits 1995-2004 Toyota Tacoma, inner
  • Part number: TA5124
  • Straight tie rod end design
  • Steel housing and steel tie rod material
  • Pre-greased for service-ready installation
  • Coated black finish for added corrosion resistance
  • Threaded stud type with clockwise thread direction on both ends
  • Mounting hardware included
  • Standard replacement grade

Product Details

Delphi TA5124 is engineered as an inner steering tie rod end with a straight configuration and male threaded ends. It measures 278.9 mm in overall length, with a 242.5 mm stud-center-to-end length, and uses a steel housing with a polyoxymethylene (POM) bearing material. The unit is pre-greased and does not require a grease fitting or dust boot. For Tacoma steering repair work, TA5124 provides a direct replacement option for the inner tie rod location.

This part cross-references MOOG Chassis Products EV409 for the same application.

Common Repair Uses

  • Restores worn inner tie rod end movement
  • Addresses steering play in a Toyota Tacoma
  • Replaces damaged or corroded steering linkage components
  • Supports correction of loose or inconsistent steering response
  • Helps resolve front-end alignment issues caused by tie rod wear

Installation Notes

Verify inner position fitment before installation on 1995-2004 Toyota Tacoma models. Confirm thread diameter, pitch, and direction against the original part, and inspect related steering components for wear before completing alignment. TA5124 is a standard replacement part, so final alignment is recommended after installation.

Quality Assurance

Delphi applies OE-level testing to its steering portfolio, including exposure to extreme temperatures and extended salt-spray testing, to evaluate durability and material performance. The brand also uses dimensional and material analysis to support OE-to-aftermarket compatibility for the Tacoma inner tie rod end application.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2004ToyotaTacomaInner—
2003ToyotaTacomaInner—
2002ToyotaTacomaInner—
2001ToyotaTacomaInner—
2000ToyotaTacomaInner—
1999ToyotaTacomaInner—
1998ToyotaTacomaInner—
1997ToyotaTacomaInner—
1996ToyotaTacomaInner—
1995ToyotaTacomaInner—
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 101-4462MOOG Chassis Products — EV409535-14145503-3906545503-39066
