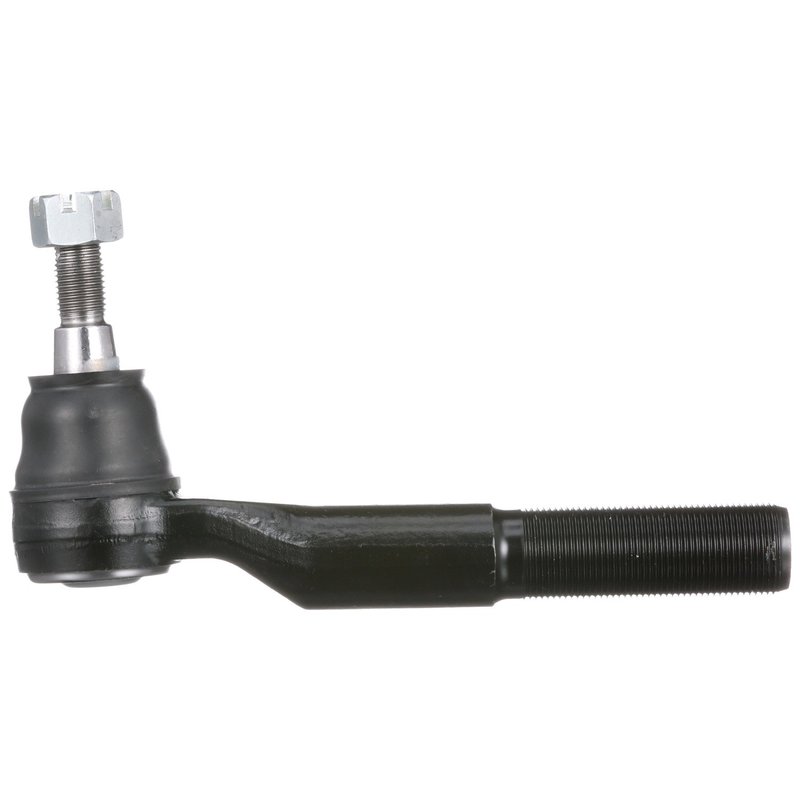

Delphi TA5127 Steering Tie Rod End - Left Outer or Outer
| Brand | Delphi TA5127 |
|---|---|
| Position | Outer |
| Adjustable | No |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Cone Outside Diameter | 0.63 |
| Cone Outside Diameter | 15.9 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.551 |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Direction | Clockwise |
| Friction Material Thickness | Coated |
| Grade | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 106.7 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 211.6 |
| Length Stud Center to End | 3.11 |
| Length Stud Center to End | 79.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Left Outer, Outer. For the position specific to your vehicle, refer to the Application tab. |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Straight |
| Weight | 1.28 |
| Width | 54.1 |
| Fits | Ford · 18 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with a protective finish and steel housing.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references Dorman - Premium TO85201XL, MOOG Chassis Products ES800484 and AC3Z 3A131-AA for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA5127 Steering Tie Rod End
The Delphi TA5127 steering tie rod end is a straight, OE-style replacement built for Ford Super Duty steering applications. It is pre-greased, includes a dust boot, and uses a coated steel housing for dependable service in demanding front-end conditions.
Key Features
- Part number: TA5127
- Steering tie rod end for left outer or outer position applications
- Fits 2008-2016 Ford F-250 Super Duty and 2008-2016 Ford F-350 Super Duty, outer
- Straight design with male threaded ends
- Pre-greased for initial service readiness
- Dust boot included to help protect internal components
- Steel housing with coated finish
- Mounting hardware included
- Standard replacement grade
Detailed Description
Delphi TA5127 is engineered for steering systems that demand accurate fit and consistent geometry. It measures 211.6 mm in length, 54.1 mm in width, and 106.7 mm in height, with a 15.9 mm cone outside diameter and a 14.0 mm thread diameter on end 1. The component uses a steel tie rod body, a steel housing, and a Polyoxymethilen (POM) bearing material, with a Chloroprene Rubber (CR) dust boot for added protection.
Delphi applies OE-focused dimensional and material analysis to its aftermarket steering portfolio, and this part is tested for temperature extremes below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure. This makes the TA5127 a practical choice for Ford F-250 Super Duty and Ford F-350 Super Duty steering repairs where precise outer tie rod fitment matters. This part cross-references MOOG Chassis Products ES800484 for the same application.
Common Repair Uses
- Loose or worn outer steering linkage on Ford F-250 Super Duty and Ford F-350 Super Duty trucks
- Steering play or wandering caused by tie rod end wear
- Uneven tire wear related to front-end steering looseness
- Clunking or knocking from the outer steering connection
- Restoring steering response after inspection reveals joint wear
Installation Notes
Verify the vehicle position before installation, since this part is listed for left outer and outer applications. Confirm thread direction, thread diameter, and overall dimensions against the removed component before assembly. After installation, perform a professional alignment to set steering geometry correctly and inspect adjacent steering components for wear.
Quality Assurance
Delphi uses OE-based engineering and validation methods for its steering parts, including dimensional and material checks to support proper fit and performance. The TA5127 is built as a standard replacement part for Ford Super Duty steering service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | RWD | Outer | — |
| 2016 | Ford | F-350 Super Duty | RWD | Outer | — |
| 2015 | Ford | F-250 Super Duty | RWD | Outer | — |
| 2015 | Ford | F-350 Super Duty | RWD | Outer | — |
| 2014 | Ford | F-250 Super Duty | RWD | Outer | — |
| 2014 | Ford | F-350 Super Duty | RWD | Outer | — |
| 2013 | Ford | F-250 Super Duty | RWD | Outer | — |
| 2013 | Ford | F-350 Super Duty | RWD | Outer | — |
| 2012 | Ford | F-250 Super Duty | RWD | Outer | — |
| 2012 | Ford | F-350 Super Duty | RWD | Outer | — |
| 2011 | Ford | F-250 Super Duty | RWD | Outer | — |
| 2011 | Ford | F-350 Super Duty | RWD | Outer | — |
| 2010 | Ford | F-250 Super Duty | RWD | Left Outer | — |
| 2010 | Ford | F-350 Super Duty | RWD | Left Outer | — |
| 2009 | Ford | F-250 Super Duty | RWD | Left Outer | — |
| 2009 | Ford | F-350 Super Duty | RWD | Left Outer | — |
| 2008 | Ford | F-250 Super Duty | RWD | Left Outer | — |
| 2008 | Ford | F-350 Super Duty | RWD | Left Outer | — |
