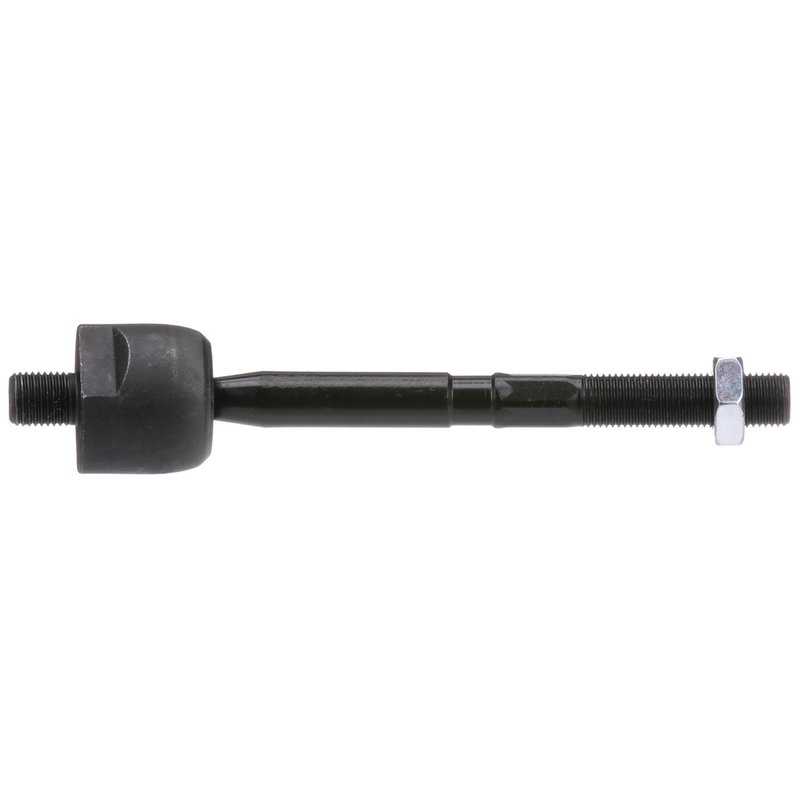

Delphi TA5142 Steering Tie Rod End - Inner
OE Quality 60-Day Returns
Delphi

Delphi TA5142 Steering Tie Rod End - Inner

Brand Delphi TA5142
Position Inner
Adjustable No
Bearing Material Polyoxymethilen (POM)
Color Black
Cone Outside Diameter 0.55
Cone Outside Diameter 14.0
Dust Boot Included No
End 1 Gender Male
End 1 Thread Diameter 0.551
End 1 Thread Diameter 14.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Thread Diameter 0.551
End 2 Thread Diameter 14.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grade Standard
Grade Type Standard
Grease Fitting Included No
Greaseable No
Height 37.1
Housing Material Steel
Item Grade Standard Replacement
Length 190.0
Length Stud Center to End 7.48
Length Stud Center to End 190.0
Mounting Hardware Included Yes
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Type Straight
Weight 1.03
Width 37.1
Fits Toyota · 9 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the aftermarket part.

Coated steel construction. Built with a steel housing and tie rod for added durability.

Pre-greased design. Ready to install with mounting hardware included.

Cross-references Beck/Arnley 101-3687, QuickSteer EV167 and 4550322010 for the same application. See all 6.

$32.01Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $32.01
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA5142 Inner Tie Rod End

Delphi TA5142 is a steering tie rod end built for inner steering linkage service on select Toyota applications. It combines OE-based dimensional analysis with materials chosen for consistent fit, helping restore steering response on vehicles such as the Toyota Celica, Toyota Van, and Toyota Supra.

Key Features

  • Inner steering tie rod end for select Toyota vehicles
  • OE-focused dimensional and material analysis for fit consistency
  • Steel housing and steel tie rod material
  • Pre-greased design with coated finish
  • Standard replacement grade
  • Male threaded ends with 14.0 mm thread diameter and 1.5 pitch
  • Clockwise thread direction on both ends
  • Mounting hardware included
  • Delphi part number TA5142

Detailed Description

Delphi TA5142 is an inner steering tie rod end engineered for direct replacement in steering gear and related components. Delphi applies OE-level testing and dimensional checks to its aftermarket steering portfolio, including exposure to extreme temperatures and salt spray, to help maintain material integrity and dimensional accuracy. This part number TA5142 is listed for 1982-1986 Toyota Celica, 1986 Toyota Supra, and 1986-1988 Toyota Van in the inner position.

This part cross-references Beck/Arnley 101-3687 for the same application.

What It Helps Address

  • Loose or imprecise steering feel from worn inner tie rod components
  • Steering play caused by worn threaded linkage joints
  • Uneven steering response from degraded steering linkage hardware
  • Noise or vibration traced to steering gear connection wear
  • Restoration of factory-style steering geometry on Toyota Celica, Toyota Van, and Toyota Supra applications

Installation Notes and Tips

Verify thread direction, thread diameter, and overall length before installation. Delphi TA5142 is a straight, non-adjustable inner tie rod end with threaded male ends, so alignment should be checked after replacement. Confirm the vehicle is one of the listed fitments: Fits 1982-1986 Toyota Celica, inner; Fits 1986 Toyota Supra, inner; Fits 1986-1988 Toyota Van, inner.

Quality Assurance

Delphi uses OE-based engineering practices for its steering components, including temperature and corrosion testing, to support consistent aftermarket performance. Delphi TA5142 is built as a standard replacement part for the listed Toyota applications.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
1988ToyotaVanRWDInner—
1987ToyotaVanRWDInner—
1986ToyotaCelicaRWDInner—
1986ToyotaSupra—Inner—
1986ToyotaVan—Inner—
1985ToyotaCelica—Inner—
1984ToyotaCelica—Inner—
1983ToyotaCelica—Inner—
1982ToyotaCelica—Inner—
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 101-3687QuickSteer — EV1674550322010455032901545503290164550329125
