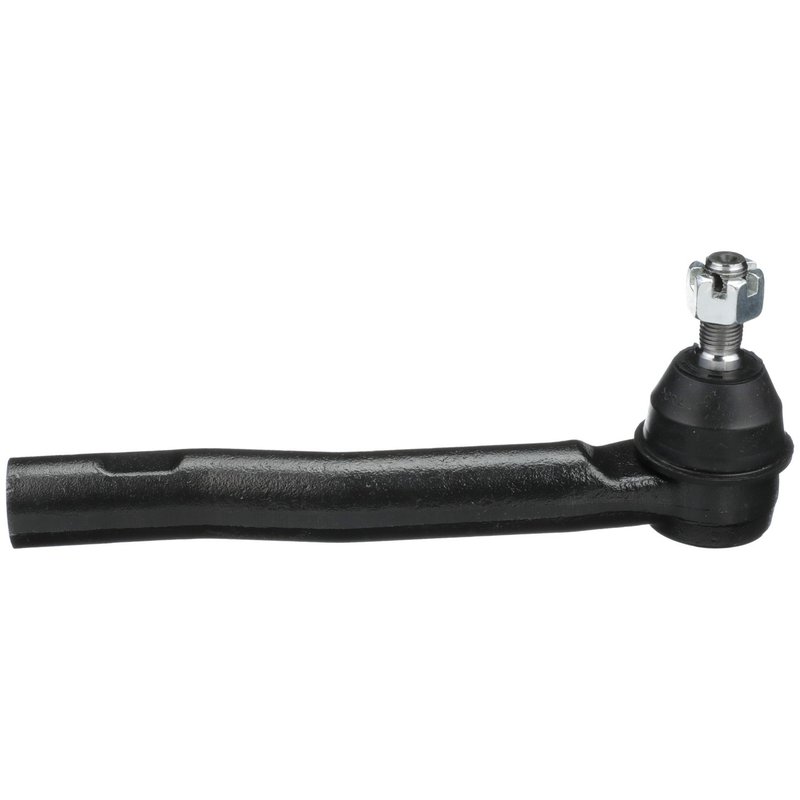

Delphi TA5262 Steering Tie Rod End - Inner
OE Quality 60-Day Returns
Delphi

Delphi TA5262 Steering Tie Rod End - Inner

Brand Delphi TA5262
Position Inner
Adjustable No
Bearing Material Polyoxymethilen (POM)
Color Gray and Black
Dust Boot Included No
End 1 Gender Male
End 1 Thread Diameter 16.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Thread Diameter 24.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 2.0
End 2 Threads Per Inch 13
Friction Material Thickness Coated
Grade Premium
Grade Type Standard
Grease Fitting Included No
Greaseable No
Height 40.0
Housing Material High Strength Steel
Item Grade Standard Replacement
Length 333.0
Length Stud Center to End 11.772
Length Stud Center to End 299.0
Position(s) Front Inner, Inner. For the position specific to your vehicle, refer to the Application tab.
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Type Straight
Weight 1.79
Width 40.0
Fits Cadillac, Chevrolet, and GMC · 95 vehicles

OE safety technology. Built with Delphi's OE expertise for aftermarket steering parts.

Coated finish. Helps resist corrosion in demanding conditions.

High-strength steel housing. Adds durability to this steering tie rod end.

Cross-references MOOG Chassis Products EV800084 and 19178561 for the same application. See all 2.

$49.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $49.57
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA5262 Inner Tie Rod End

Delphi TA5262 is a front inner steering tie rod end built for OE-style steering response and dimensional accuracy. It is a straight, pre-greased replacement with a high-strength steel housing and steel tie rod material for service in demanding steering systems.

Key Features

  • Part number: TA5262
  • Steering tie rod end for front inner applications
  • Straight design with male/male ends
  • Pre-greased; no grease fitting included
  • Coated finish with gray and black appearance
  • High-strength steel housing and steel tie rod material
  • Polyoxymethylene (POM) bearing material
  • Standard replacement, premium grade
  • End 1 thread: 16.0 mm, clockwise, 1.5 pitch
  • End 2 thread: 24.0 mm, clockwise, 2.0 pitch

Detailed Description

Delphi TA5262 is engineered as a standard replacement steering tie rod end for vehicles that use an inner front steering linkage. Delphi applies OE-focused dimensional and material analysis to help maintain proper fit and steering geometry, and the part is tested across extreme temperature and corrosion conditions to support long-term service. This tie rod end is listed for applications including 2007-2014 Cadillac Escalade and Escalade ESV, 2007-2014 Chevrolet Suburban 1500 and Tahoe, 2007-2014 GMC Yukon and Yukon XL 1500, plus 2007-2013 Cadillac Escalade EXT, Chevrolet Avalanche, Chevrolet Silverado 1500, and GMC Sierra 1500.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

  • Loose or wandering steering feel
  • Clunking or play in the front inner steering linkage
  • Uneven tire wear linked to steering wear
  • Steering response that no longer tracks accurately
  • Corrosion or wear in the inner tie rod assembly

Installation Notes and Tips

Verify the vehicle’s steering position before ordering, since this part is listed for front inner use. Confirm thread size, thread direction, and linkage dimensions against the original component before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry.

Quality Assurance

Delphi uses OE safety technology and applies OE-level testing to its steering portfolio. This part is exposed to extreme temperature cycling and extended salt-spray testing, with dimensional and material checks used to support fitment consistency for the listed Cadillac, Chevrolet, and GMC applications.

Related reading

This part fits 95 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelFuel TypePositionNotes
2014CadillacEscalade—Inner—
2014CadillacEscalade ESV—Inner—
2014ChevroletSuburban 1500—Inner—
2014ChevroletTahoe—Inner—
2014GMCYukon—Inner—
2014GMCYukon XL 1500—Inner—
2013CadillacEscaladeGASInner—
2013CadillacEscaladeFLEXInner—
2013CadillacEscalade ESV—Inner—
2013CadillacEscalade EXT—Inner—
2013ChevroletAvalanche—Inner—
2013ChevroletSilverado 1500GASInner—
2013ChevroletSilverado 1500FLEXInner—
2013ChevroletSuburban 1500—Inner—
2013ChevroletTahoeGASInner—
2013ChevroletTahoeFLEXInner—
2013GMCSierra 1500GASInner—
2013GMCSierra 1500FLEXInner—
2013GMCYukonFLEXInner—
2013GMCYukon XL 1500—Inner—
2012CadillacEscaladeFLEXInner—
2012CadillacEscalade ESV—Inner—
2012CadillacEscalade EXT—Inner—
2012ChevroletAvalanche—Inner—
2012ChevroletSilverado 1500GASInner—
2012ChevroletSilverado 1500FLEXInner—
2012ChevroletSuburban 1500—Inner—
2012ChevroletTahoeGASInner—
2012ChevroletTahoeFLEXInner—
2012GMCSierra 1500GASInner—
2012GMCSierra 1500FLEXInner—
2012GMCYukonFLEXInner—
2012GMCYukon XL 1500—Inner—
2011CadillacEscaladeFLEXInner—
2011CadillacEscalade ESV—Inner—
2011CadillacEscalade EXT—Inner—
2011ChevroletAvalanche—Inner—
2011ChevroletSilverado 1500GASInner—
2011ChevroletSilverado 1500FLEXInner—
2011ChevroletSuburban 1500—Inner—
2011ChevroletTahoeGASInner—
2011ChevroletTahoeFLEXInner—
2011GMCSierra 1500GASInner—
2011GMCSierra 1500FLEXInner—
2011GMCYukonFLEXInner—
2011GMCYukon XL 1500—Inner—
2010CadillacEscaladeGASInner—
2010CadillacEscaladeFLEXInner—
2010CadillacEscalade ESV—Inner—
2010CadillacEscalade EXT—Inner—
2010ChevroletAvalanche—Inner—
2010ChevroletSilverado 1500GASInner—
2010ChevroletSilverado 1500FLEXInner—
2010ChevroletSuburban 1500—Inner—
2010ChevroletTahoeFLEXInner—
2010GMCSierra 1500GASInner—
2010GMCSierra 1500FLEXInner—
2010GMCYukonFLEXInner—
2010GMCYukon XL 1500—Inner—
2009CadillacEscaladeFLEXInner—
2009CadillacEscalade ESV—Inner—
2009CadillacEscalade EXT—Inner—
2009ChevroletAvalanche—Inner—
2009ChevroletSilverado 1500GASInner—
2009ChevroletSilverado 1500FLEXInner—
2009ChevroletSuburban 1500—Inner—
2009ChevroletTahoeGASInner—
2009ChevroletTahoeFLEXInner—
2009GMCSierra 1500GASInner—
2009GMCSierra 1500FLEXInner—
2009GMCYukonGASInner—
2009GMCYukonFLEXInner—
2009GMCYukon XL 1500—Inner—
2008CadillacEscalade—Inner—
2008CadillacEscalade ESV—Inner—
2008CadillacEscalade EXT—Inner—
2008ChevroletAvalanche—Inner—
2008ChevroletSilverado 1500—Inner—
2008ChevroletSuburban 1500—Inner—
2008ChevroletTahoeGASInner—
2008ChevroletTahoeFLEXInner—
2008GMCSierra 1500—Inner—
2008GMCYukonGASInner—
2008GMCYukonFLEXInner—
2008GMCYukon XL 1500—Inner—
2007CadillacEscalade—Inner—
2007CadillacEscalade ESV—Inner—
2007CadillacEscalade EXT—Inner—
2007ChevroletAvalanche—Inner—
2007ChevroletSilverado 1500—Inner—
2007ChevroletSuburban 1500—Inner—
2007ChevroletTahoe—Inner—
2007GMCSierra 1500—Inner—
2007GMCYukon—Inner—
2007GMCYukon XL 1500—Inner—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Chassis Products — EV80008419178561
