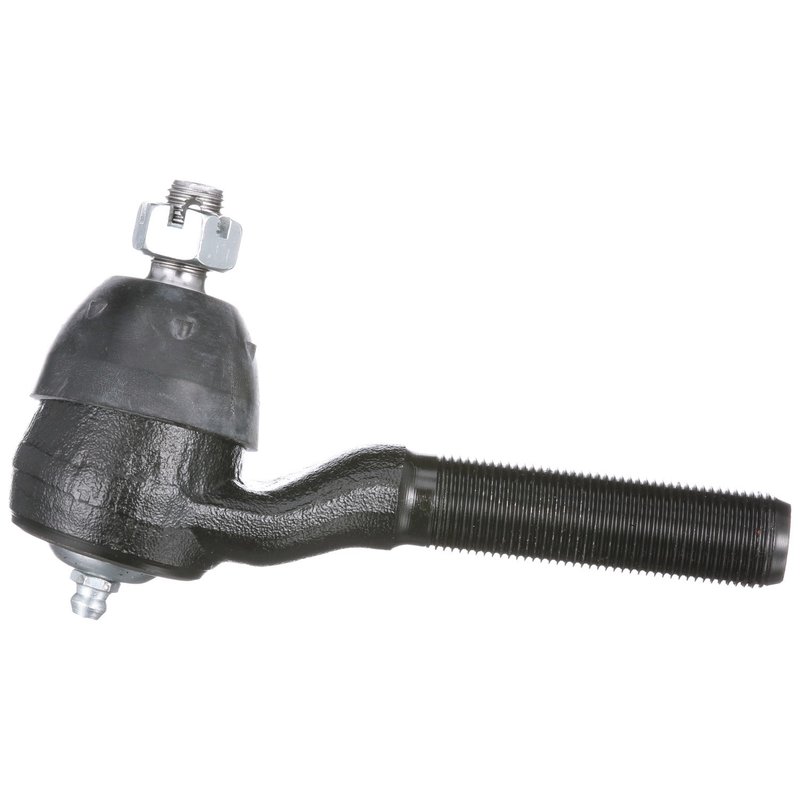

Delphi TA5274 Steering Tie Rod End - Outer or Right Outer
OE Quality 60-Day Returns
Delphi

Delphi TA5274 Steering Tie Rod End - Outer or Right Outer

Brand Delphi TA5274
Position Outer
Adjustable No
Bearing Material Plastic
Color Black
Cone Outside Diameter 13.1
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Male
End 1 Thread Diameter 0.438
End 1 Thread Diameter 11.1125
End 1 Thread Direction Clockwise
End 1 Threads Per Inch 20
End 2 Gender Male
End 2 Thread Diameter 0.688
End 2 Thread Diameter 17.4625
End 2 Thread Direction Clockwise
End 2 Threads Per Inch 18
Friction Material Thickness Coated
Grease Fitting Included Yes
Greaseable Yes
Height 78.0
Housing Material Steel
Item Grade Standard Replacement
Length 134.0
Length Stud Center to End 4.449
Length Stud Center to End 113.0
Mounting Hardware Included Yes
Position(s) Outer, Right Outer. For the position specific to your vehicle, refer to the Application tab.
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 0.688
Tube Diameter 17.4625
Type Bent
Weight 0.9
Width 40.0
Fits Ford and Mercury · 7 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility.

Coated steel construction. Built with a steel housing and tie rod for durable steering performance.

Pre-greased design. Includes a grease fitting and dust boot for easier service.

Cross-references Dorman - OE Solutions 534-569, MOOG Chassis Products ES336R and C5ZZ3A130B for the same application. See all 4.

$28.83Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $28.83
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

OE-Style Steering Tie Rod End for Ford Mustang

Delphi TA5274 is a steering tie rod end built for outer right-side steering applications where precise linkage movement and durable construction matter. It is a standard replacement part with pre-greased serviceability, a dust boot, and coated steel construction for dependable steering response.

Fits 1964-1966 Ford Mustang, right outer. Fits 1964-1966 Ford Mustang, outer. Fits 1965 Mercury Villager, outer.

  • Delphi steering tie rod end, part number TA5274
  • Outer right steering position for listed Ford Mustang applications
  • Pre-greased with grease fitting included for service access
  • Dust boot included to help protect the joint from contamination
  • Steel housing and steel tie rod with coated finish
  • Threaded stud design with clockwise thread direction on both ends
  • Mounting hardware included as listed in the product data

Product Details

Delphi TA5274 is engineered as a standard replacement steering tie rod end for classic Ford Mustang steering service. Delphi applies OE-focused dimensional and material analysis to support proper part matching, and the component is tested across extreme temperature and corrosion conditions, including sub-zero and high-heat exposure plus extended salt-spray testing. The bent design, male threaded ends, and greaseable construction make it a practical choice for restoring steering linkage function on 1964-1966 Ford Mustang right outer applications. This part cross-references MOOG Chassis Products ES336R for the same application.

Common Issues This Part Can Address

  • Loose or vague steering feel at the front end
  • Excessive play in the outer tie rod connection
  • Steering noise caused by worn linkage joints
  • Uneven tire wear related to steering geometry wear
  • Contamination entering a worn or damaged steering joint

Installation Notes and Tips

Verify the vehicle position before ordering, since this part is listed for outer right steering applications and also appears in outer fitment notes for select vehicles. Inspect the mating steering components, alignment settings, and thread engagement before installation. Because this is a greaseable tie rod end, service the fitting after installation according to your maintenance schedule. A professional wheel alignment is recommended after steering linkage replacement.

Quality Assurance

Delphi states that its OE safety technology and aftermarket steering portfolio are validated through dimensional and material analysis, along with temperature and corrosion testing intended to reflect demanding real-world conditions. Part number TA5274 is built to OE-style standards for steering service on listed Ford Mustang applications.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1966FordMustangRight OuterPower Steering
1966FordMustangOuterFront Inner Standard Steering Pitman Arm - Compatible with various makes and models.
1965FordMustangRight OuterPower Steering
1965FordMustangOuterFront Inner Standard Steering Pitman Arm - Compatible with various makes and models.
1965MercuryVillagerOuter—
1964FordMustangRight OuterPower Steering
1964FordMustangOuterFront Inner Standard Steering Pitman Arm - Compatible with various makes and models.
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 534-569MOOG Chassis Products — ES336RC5ZZ3A130BC5ZZ3A130D
