Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

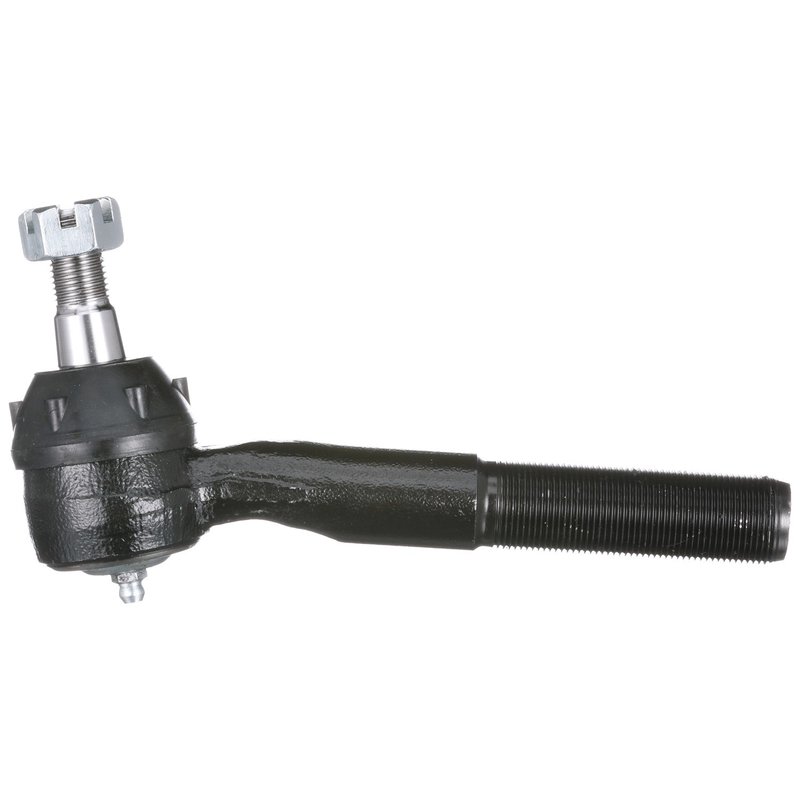

Delphi TA5337 Steering Tie Rod End - Left Inner
| Brand | Delphi TA5337 |
|---|---|
| Position | Left Inner |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 17.8 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.563 |
| End 1 Thread Diameter | 14.2875 |
| End 1 Thread Direction | Clockwise |
| End 1 Threads Per Inch | 18 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.875 |
| End 2 Thread Diameter | 22.225 |
| End 2 Thread Direction | Clockwise |
| End 2 Threads Per Inch | 18 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Height | 96.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 187.0 |
| Length Stud Center to End | 6.28 |
| Length Stud Center to End | 159.5 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.945 |
| Tube Diameter | 24.0 |
| Type | Straight |
| Weight | 1.56 |
| Width | 44.0 |
| Fits | Ford · 14 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Coated for added durability with a pre-greased, greaseable design.
Hardware included. Comes with a dust boot and grease fitting for easier service.
Cross-references MOOG Chassis Products ES362R and C5TZ3A130A for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA5337 Left Inner Tie Rod End
Delphi TA5337 is a standard replacement steering tie rod end built for the left inner position. It is engineered with OE-focused dimensional and material analysis to support proper fit and steering response on classic Ford truck applications, including Ford F-100 and Ford F-250 models.
Key Features
- Left inner steering tie rod end for direct replacement use
- Pre-greased with a grease fitting included for serviceability
- Dust boot included to help protect the joint from contamination
- Steel housing and steel tie rod construction with a coated black finish
- Straight, non-adjustable design
- Threaded stud design with clockwise thread direction on both ends
- Mounting hardware included
- OE-focused fit and material analysis for aftermarket steering applications
Application Details
Compatible with 1965-1971 Ford F-100, left inner, and 1965-1971 Ford F-250, left inner, rear wheel drive. Delphi TA5337 is also referenced against MOOG Chassis Products ES362R and cross-references C5TZ3A130A for the same application. The part number TA5337 is commonly searched for Ford F-100 steering tie rod end replacement and Ford F-250 left inner steering linkage service.
What This Part Helps Address
- Loose or worn steering linkage at the left inner tie rod location
- Steering play that can affect on-center feel
- Clunking or knocking from worn steering joints
- Contamination entering a damaged or missing dust boot
- Service needs on classic Ford truck steering systems
Installation Notes
Verify thread diameter, thread direction, and left inner position before installation. Delphi TA5337 uses a straight, non-adjustable layout with male threaded ends, so alignment settings should be checked after replacement. Confirm vehicle application by year, model, and steering configuration before service on Ford F-100 and Ford F-250 trucks.
Quality Assurance
Delphi applies OE-oriented testing and dimensional analysis to its steering portfolio. This part is evaluated for temperature extremes and salt-spray exposure to support durability in demanding service conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1971 | Ford | F-100 | RWD | Left Inner | — |
| 1971 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| 1970 | Ford | F-100 | RWD | Left Inner | — |
| 1970 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| 1969 | Ford | F-100 | RWD | Left Inner | — |
| 1969 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| 1968 | Ford | F-100 | RWD | Left Inner | — |
| 1968 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| 1967 | Ford | F-100 | RWD | Left Inner | — |
| 1967 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| 1966 | Ford | F-100 | RWD | Left Inner | — |
| 1966 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| 1965 | Ford | F-100 | RWD | Left Inner | — |
| 1965 | Ford | F-250 | — | Left Inner | Rear Wheel Drive |
| No rows match your filter. | |||||
