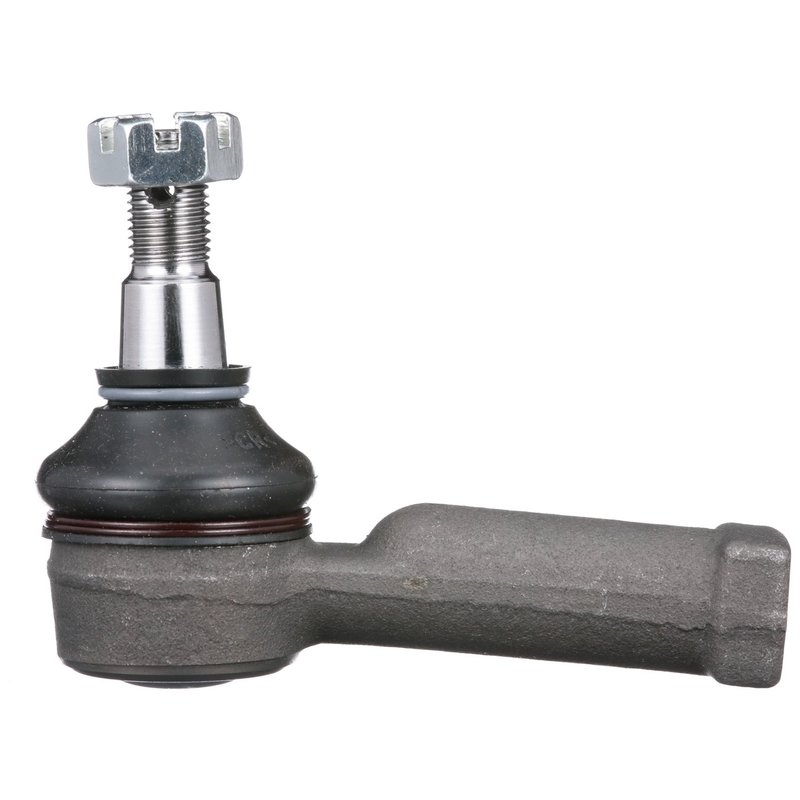

Delphi TA5345 Steering Tie Rod End - Outer

Delphi TA5345 Outer Tie Rod End

The Delphi TA5345 steering tie rod end is a standard replacement outer tie rod end built for precise steering response and OE-style fit. It is compatible with 1987-1993 Mazda B2600 outer steering applications and is engineered using Delphi’s OE-focused dimensional and material analysis.

Delphi applies its aftermarket steering expertise to parts that are tested for extreme temperature exposure and salt spray resistance, helping support long-term durability in demanding road conditions. This outer tie rod end is pre-greased, includes a dust boot, and comes with mounting hardware for a straightforward replacement on the Mazda B2600.

Key Features

• Part number: TA5345
• Outer steering tie rod end for 1987-1993 Mazda B2600
• Straight design with female end 2 thread connection
• Pre-greased for ready-to-install service
• Dust boot included to help protect internal components
• Steel housing and steel tie rod construction
• Coated black finish for added corrosion resistance
• Mounting hardware included
• Standard replacement grade
• Non-adjustable and non-greaseable design

Detailed Description

Delphi TA5345 is an outer steering tie rod end made for the Mazda B2600 from 1987 through 1993. It features a straight layout, threaded stud design, and a counterclockwise female thread on end 2 with a 14.0 mm thread diameter and 1.5 pitch. The component measures 107.0 in length, with a 21.0 mm tube diameter and a 16.0 mm cone outside diameter.

This part cross-references Beck/Arnley 101-4048 for the same application. Delphi’s OE-based engineering approach focuses on dimensional accuracy and material compatibility, which helps support proper steering linkage operation and consistent replacement fit on Mazda B2600 outer tie rod service.

What It Helps Address

• Loose or vague steering feel at the front end
• Clunking or knocking from worn steering linkage components
• Uneven tire wear caused by worn outer tie rod joints
• Steering play during lane changes or low-speed turns
• Failed inspection due to excessive steering component wear

Installation Notes and Tips

Replace the outer tie rod end when there is visible joint wear, torn boot damage, or measurable steering play. After installation on a 1987-1993 Mazda B2600, a professional wheel alignment is recommended to restore correct toe settings and steering wheel position. Verify thread direction, end diameter, and position before installation.

Quality Assurance

Delphi tests steering components for extreme temperature exposure and extended salt spray resistance, and uses dimensional and material analysis to support OE-style fit and performance. The TA5345 is built as a standard replacement steering part for dependable service in Mazda B2600 applications.
