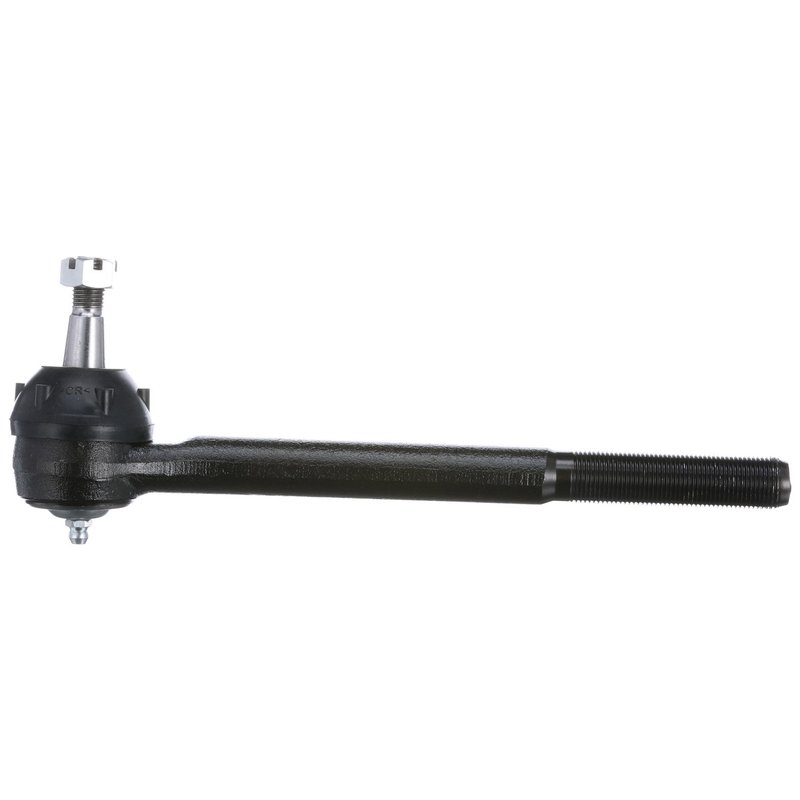

Delphi TA5372 Steering Tie Rod End - Outer
| Brand | Delphi TA5372 |
|---|---|
| Position | Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 15.9 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.438 |
| End 1 Thread Diameter | 11.1125 |
| End 1 Thread Direction | Clockwise |
| End 1 Threads Per Inch | 20 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.688 |
| End 2 Thread Diameter | 17.4625 |
| End 2 Thread Direction | Clockwise |
| End 2 Threads Per Inch | 18 |
| Friction Material Thickness | Coated |
| Height | 89.5 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 246.0 |
| Length Stud Center to End | 8.819 |
| Length Stud Center to End | 224.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.787 |
| Tube Diameter | 20.0 |
| Type | Straight |
| Weight | 1.37 |
| Width | 43.0 |
| Fits | Buick, Cadillac, Oldsmobile, Pontiac, Chevrolet, and GMC · 61 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a steel housing and tie rod for added durability.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references MOOG Chassis Products ES427R, 4011185 and 7814683 for the same application. See all 10.
Delphi TA5372 Outer Steering Tie Rod End
Delphi TA5372 is a standard replacement outer steering tie rod end built for direct-fit service on select GM vehicles from the 1970s. It features a steel housing, coated finish, pre-greased construction, and a dust boot to support steering joint protection and consistent operation.
Key Features
- Outer steering tie rod end for steering linkage service
- Steel housing with coated black finish
- Pre-greased with dust boot included
- Male threaded ends with clockwise thread direction
- Straight, non-adjustable design
- Mounting hardware included
- Standard replacement part number TA5372
Detailed Description
Delphi TA5372 is engineered as an OE-style steering tie rod end for the outer position. Delphi applies dimensional and material analysis to help maintain proper OE-to-aftermarket compatibility, and the part is tested for temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure. That makes this Delphi TA5372 tie rod end a practical choice for restoring steering response on classic Buick, Chevrolet, Oldsmobile, and Pontiac applications.
Compatible vehicle coverage includes Fits 1973-1977 Buick Century, Outer; Fits 1973-1977 Buick Regal, Outer; Fits 1973-1977 Chevrolet El Camino, Outer; Fits 1973-1977 Chevrolet Monte Carlo, Outer; Fits 1973-1977 Oldsmobile Cutlass, Outer; Fits 1973-1977 Pontiac Grand Prix, Outer; and additional outer steering applications across the listed GM platforms. This part cross-references MOOG Chassis Products ES427R for the same application.
What This Part Helps Address
- Loose or vague steering feel at the outer linkage
- Clunking or play from a worn tie rod end
- Uneven steering response caused by joint wear
- Dust boot damage that exposes the joint to contamination
- Restoration of steering linkage service on classic GM vehicles
Installation Notes and Tips
Verify the outer position, thread direction, and thread size before installation. Delphi TA5372 is a straight, non-adjustable tie rod end, so alignment should be checked after replacement. Confirm fitment against the vehicle listing for your exact year, make, model, and steering configuration, including 8-3/4 in length applications where noted.
Quality Assurance
Delphi uses OE safety and dimensional expertise in its aftermarket steering portfolio. This part is built with steel construction, a protective coated finish, pre-greased internals, and environmental testing that includes extreme temperatures and salt-spray exposure for durability-focused service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1979 | Buick | Skylark | Outer | 8-3/4in Length |
| 1979 | Cadillac | Seville | Outer | 8-3/4in Length |
| 1979 | Oldsmobile | Omega | Outer | 8-3/4in Length |
| 1979 | Pontiac | Firebird | Outer | 8-3/4in Length |
| 1979 | Pontiac | Phoenix | Outer | 8-3/4in Length |
| 1978 | Buick | Skylark | Outer | 8-3/4in Length |
| 1978 | Cadillac | Seville | Outer | 8-3/4in Length |
| 1978 | Oldsmobile | Omega | Outer | 8-3/4in Length |
| 1978 | Pontiac | Firebird | Outer | 8-3/4in Length |
| 1978 | Pontiac | Phoenix | Outer | 8-3/4in Length |
| 1977 | Buick | Century | Outer | 8-3/4in Length |
| 1977 | Buick | Regal | Outer | 8-3/4in Length |
| 1977 | Cadillac | Seville | Outer | 8-3/4in Length |
| 1977 | Chevrolet | El Camino | Outer | 8-3/4in Length |
| 1977 | Chevrolet | Monte Carlo | Outer | 8-3/4in Length |
| 1977 | Oldsmobile | Cutlass | Outer | 8-3/4in Length |
| 1977 | Oldsmobile | Cutlass Salon | Outer | 8-3/4in Length |
| 1977 | Oldsmobile | Cutlass Supreme | Outer | 8-3/4in Length |
| 1977 | Pontiac | Firebird | Outer | 8-3/4in Length |
| 1977 | Pontiac | Grand Prix | Outer | 8-3/4in Length |
| 1977 | Pontiac | LeMans | Outer | 8-3/4in Length |
| 1976 | Buick | Century | Outer | 8-3/4in Length |
| 1976 | Buick | Regal | Outer | 8-3/4in Length |
| 1976 | Cadillac | Seville | Outer | 8-3/4in Length |
| 1976 | Chevrolet | El Camino | Outer | 8-3/4in Length |
| 1976 | Chevrolet | Monte Carlo | Outer | 8-3/4in Length |
| 1976 | Oldsmobile | Cutlass | Outer | 8-3/4in Length |
| 1976 | Oldsmobile | Cutlass Salon | Outer | 8-3/4in Length |
| 1976 | Oldsmobile | Cutlass Supreme | Outer | 8-3/4in Length |
| 1976 | Pontiac | Firebird | Outer | 8-3/4in Length |
| 1976 | Pontiac | Grand Prix | Outer | 8-3/4in Length |
| 1976 | Pontiac | LeMans | Outer | 8-3/4in Length |
| 1975 | Buick | Century | Outer | 8-3/4in Length |
| 1975 | Buick | Regal | Outer | 8-3/4in Length |
| 1975 | Chevrolet | El Camino | Outer | 8-3/4in Length |
| 1975 | Chevrolet | Monte Carlo | Outer | 8-3/4in Length |
| 1975 | Oldsmobile | Cutlass | Outer | 8-3/4in Length |
| 1975 | Oldsmobile | Cutlass Salon | Outer | 8-3/4in Length |
| 1975 | Oldsmobile | Cutlass Supreme | Outer | 8-3/4in Length |
| 1975 | Pontiac | Firebird | Outer | 8-3/4in Length |
| 1975 | Pontiac | Grand Am | Outer | 8-3/4in Length |
| 1975 | Pontiac | Grand Prix | Outer | 8-3/4in Length |
| 1975 | Pontiac | LeMans | Outer | 8-3/4in Length |
| 1974 | Buick | Century | Outer | 8-3/4in Length |
| 1974 | Buick | Regal | Outer | 8-3/4in Length |
| 1974 | Chevrolet | El Camino | Outer | 8-3/4in Length |
| 1974 | Chevrolet | Monte Carlo | Outer | 8-3/4in Length |
| 1974 | Oldsmobile | Cutlass | Outer | 8-3/4in Length |
| 1974 | Oldsmobile | Cutlass Supreme | Outer | 8-3/4in Length |
| 1974 | Pontiac | Grand Am | Outer | 8-3/4in Length |
| 1974 | Pontiac | Grand Prix | Outer | 8-3/4in Length |
| 1974 | Pontiac | LeMans | Outer | 8-3/4in Length |
| 1973 | Buick | Century | Outer | 8-3/4in Length |
| 1973 | Buick | Regal | Outer | 8-3/4in Length |
| 1973 | Chevrolet | El Camino | Outer | 8-3/4in Length |
| 1973 | Chevrolet | Monte Carlo | Outer | 8-3/4in Length |
| 1973 | Oldsmobile | Cutlass | Outer | 8-3/4in Length |
| 1973 | Oldsmobile | Cutlass Supreme | Outer | 8-3/4in Length |
| 1973 | Pontiac | Grand Am | Outer | 8-3/4in Length |
| 1973 | Pontiac | Grand Prix | Outer | 8-3/4in Length |
| 1973 | Pontiac | LeMans | Outer | 8-3/4in Length |
