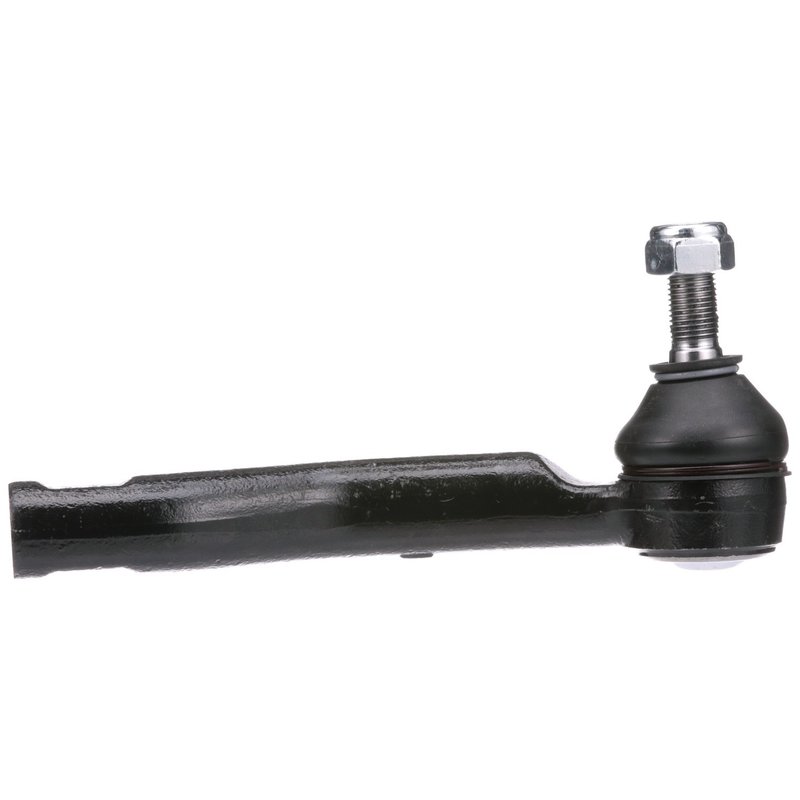

Delphi TA5394 Steering Tie Rod End - Right Outer

Delphi Steering Tie Rod End TA5394 Overview

The Delphi Steering Tie Rod End TA5394 is designed specifically for Toyota Corolla models, providing reliable steering performance and precise fitment. Engineered with high-strength steel and a coated finish, this bent-type tie rod end ensures durability and resistance to wear.

• Compatible with Toyota Corolla vehicles
• Length: 182.0 mm, Width: 39.0 mm, Height: 79.0 mm
• High-strength steel housing with coated finish for corrosion resistance
• Includes dust boot made of chloroprene rubber for protection against contaminants
• Standard grade replacement part with mounting hardware included
• Threaded stud type with female end 1 and male end 2, both clockwise thread direction
• Non-adjustable, non-greaseable design with plastic bearing material

Detailed Product Description

The Delphi TA5394 steering tie rod end is a standard replacement component engineered to meet the specifications of Toyota Corolla steering systems. Featuring a bent design, this tie rod end measures 182 mm in length and is constructed from durable steel with a coated finish to resist corrosion. The housing is made from high-strength steel, while the bearing utilizes plastic material to maintain smooth operation. Both ends have clockwise thread directions, with end 1 being female (15.0 mm thread diameter, 1.5 pitch) and end 2 male (12.0 mm thread diameter, 1.25 pitch). The included chloroprene rubber dust boot protects the joint from dirt and moisture, extending the service life of the component. Mounting hardware is supplied for straightforward installation.

Common Applications and Issues Addressed

• Restores precise steering control on Toyota Corolla models
• Eliminates steering play caused by worn or damaged tie rod ends
• Prevents uneven tire wear due to misaligned steering components
• Reduces noise and vibration from loose steering joints
• Improves overall vehicle handling and safety

Installation Notes and Tips

• Ensure compatibility with your specific Toyota Corolla year and model before installation
• Use the included mounting hardware for secure attachment
• Check thread directions and diameters to match existing components
• Inspect the dust boot for proper seating to prevent contamination
• Alignment check is recommended after installation to maintain steering accuracy

Quality Assurance and Warranty

The Delphi TA5394 tie rod end is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. While this part does not include pre-greasing or grease fittings, its coated finish and dust boot provide protection against corrosion and debris. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to Delphi's official warranty policy for specific terms.
