Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

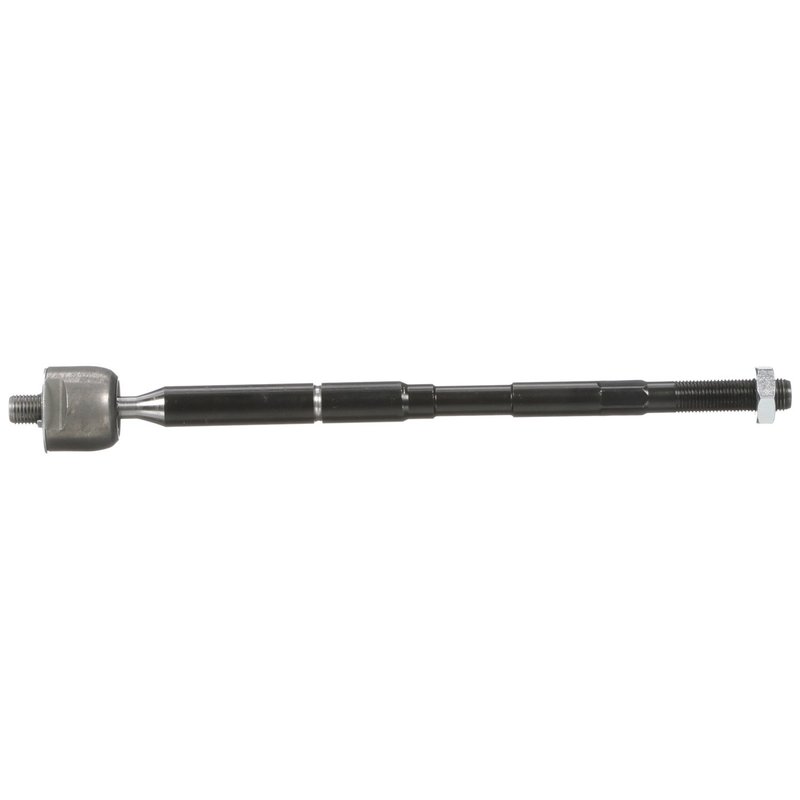

Delphi TA5428 Steering Tie Rod End - Inner
| Brand | Delphi TA5428 |
|---|---|
| Position | Inner |
| Adjustable | Yes |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Dust Boot Included | No |
| End 1 Gender | Male |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 15.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 37.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 334.9 |
| Length Stud Center to End | 11.772 |
| Length Stud Center to End | 299.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Tie Rod Material | Steel |
| Tube Diameter | 0.709 |
| Tube Diameter | 18.0 |
| Type | Straight |
| Weight | 1.49 |
| Width | 37.0 |
| Fits | Scion · 6 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a steel housing and tie rod for added durability.
Pre-greased design. Ready for installation with mounting hardware included.
Cross-references MOOG Chassis Products EV800096, 101-5724 and 535-194 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA5428 Inner Tie Rod End
Delphi TA5428 is a standard replacement steering tie rod end built for precise inner steering linkage service. It is compatible with 2005-2010 Scion tC, inner, and is engineered using Delphi OE-focused dimensional and material analysis for accurate fitment.
Key Features
- Fits 2005-2010 Scion tC, inner
- Delphi part number TA5428
- Straight tie rod end design
- Steel housing and steel tie rod construction
- Pre-greased for initial service readiness
- Coated black finish for added surface protection
- Adjustable design for steering linkage setup
- Mounting hardware included
- Male end 1 and male end 2 configuration
Detailed Description
The Delphi TA5428 inner steering tie rod end is built for drivers needing a direct replacement for worn steering linkage components on the 2005-2010 Scion tC. This inner tie rod end uses a straight, adjustable design with clockwise thread direction on both ends, 14.0 mm and 15.0 mm thread diameters, and 1.5 thread pitch for controlled steering connection. Delphi validates its steering components through extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt spray testing to support OE-level durability expectations. This part cross-references MOOG Chassis Products EV800096 for the same application.
What It Helps Fix
- Excessive steering play in the inner linkage
- Clunking or looseness felt through the steering wheel
- Uneven toe settings caused by worn steering joints
- Steering response that feels vague or delayed
- Inspection failures related to worn steering components
Installation Notes and Tips
Confirm the vehicle is a 2005-2010 Scion tC, inner application before installation. Match thread direction, thread diameter, and overall length to the removed part, and inspect related steering components for wear before alignment. Because this is an adjustable steering component, a professional wheel alignment is recommended after installation.
Quality Assurance
Delphi applies OE-focused engineering, dimensional analysis, and material validation to its aftermarket steering portfolio. The TA5428 is tested for temperature extremes and corrosion resistance to support consistent performance in steering service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Scion | tC | Inner | — |
| 2009 | Scion | tC | Inner | — |
| 2008 | Scion | tC | Inner | — |
| 2007 | Scion | tC | Inner | — |
| 2006 | Scion | tC | Inner | — |
| 2005 | Scion | tC | Inner | — |
