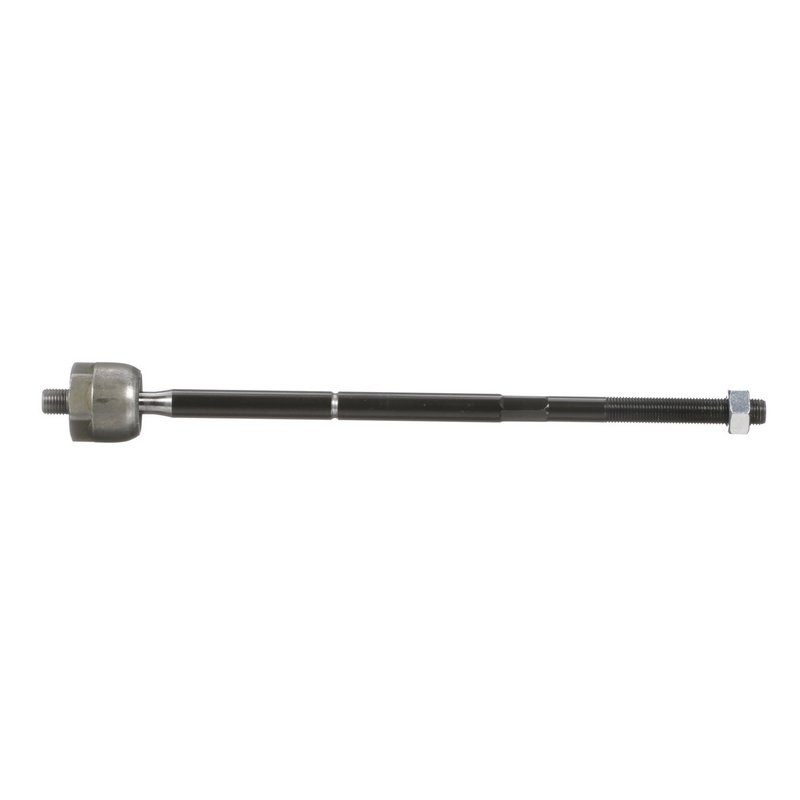

Delphi TA5432 Steering Tie Rod End - Inner
OE Quality 60-Day Returns
Delphi

Delphi TA5432 Steering Tie Rod End - Inner

Brand Delphi TA5432
Position Inner
Adjustable Yes
Bearing Material Polyoxymethilen (POM)
Color Black
Dust Boot Included No
End 1 Gender Male
End 1 Thread Diameter 14.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Thread Diameter 14.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grease Fitting Included No
Greaseable No
Height 40.0
Housing Material Steel
Item Grade Standard Replacement
Length 353.0
Length Stud Center to End 12.52
Length Stud Center to End 318.0
Mounting Hardware Included Yes
Pre-Greased Yes
Tie Rod Material Steel
Tube Diameter 0.571
Tube Diameter 14.5
Type Straight
Weight 1.42
Width 40.0
Fits Ford, Mazda, and Mercury · 8 vehicles

Standard replacement. OE expertise and dimensional analysis help match the original part.

Steel construction. Coated for added corrosion resistance and long-term durability.

Pre-greased. Includes mounting hardware for a smoother, easier install.

Cross-references 19311821 for the same application. See all 1.

$41.38Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $41.38
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi Inner Steering Tie Rod End TA5432

Delphi TA5432 is an inner steering tie rod end built as a standard replacement for select Ford, Mazda, and Mercury applications. It is pre-greased, uses a coated steel housing and steel tie rod construction, and is engineered with OE-focused dimensional and material analysis for proper steering linkage fit.

Key Features

  • Part number TA5432 inner steering tie rod end
  • Fits 2009-2012 Ford Escape, inner
  • Fits 2010-2011 Mazda Tribute, inner
  • Fits 2010-2011 Mercury Mariner, inner
  • 14 mm male threads on both ends with 1.5 pitch
  • Straight, adjustable design for steering linkage service
  • Pre-greased with mounting hardware included
  • Steel housing and steel tie rod with coated finish
  • Black finish with POM bearing material

Detailed Description

Delphi TA5432 is designed for inner steering linkage replacement where precise thread engagement and OE-style dimensions matter. The straight, adjustable layout and 14 mm clockwise threaded ends support service on the Ford Escape, Mazda Tribute, and Mercury Mariner applications listed below. Delphi validates its steering components through extreme temperature and salt-spray exposure testing, then applies dimensional and material analysis to help maintain fit and function across OE and aftermarket use. If you are replacing a worn inner tie rod end on a 2009-2012 Ford Escape, 2010-2011 Mazda Tribute, or 2010-2011 Mercury Mariner, TA5432 provides a direct service part reference for that steering position.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Steering play or looseness at the inner tie rod
  • Uneven tire wear caused by worn steering linkage components
  • Clunking or knocking from the front steering system
  • Incorrect toe settings after tie rod wear
  • Restoring steering response on Escape, Tribute, and Mariner models

Installation Notes and Tips

Verify thread direction, thread diameter, and position before installation. TA5432 is an inner tie rod end with 14 mm male threads and a straight, adjustable design, so alignment should be checked after service. Confirm the steering rack and outer tie rod condition during replacement to avoid repeat repairs. Use the vehicle fitment details exactly as listed for 2009-2012 Ford Escape, 2010-2011 Mazda Tribute, and 2010-2011 Mercury Mariner applications.

Quality Assurance

Delphi applies OE-based engineering to its aftermarket steering portfolio and tests components for temperature extremes and corrosion exposure. The TA5432 part number is built to meet standard replacement expectations for steering service while maintaining dimensional consistency with the listed fitments.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2012FordEscapeInner14mm Threads, Compatible with Steering Tie Rod End
2011FordEscapeInner14mm Threads, Compatible with Steering Tie Rod End
2011MazdaTributeInner14mm Threads, Compatible with Steering Tie Rod End
2011MercuryMarinerInner14mm Threads, Compatible with Steering Tie Rod End
2010FordEscapeInner14mm Threads, Compatible with Steering Tie Rod End
2010MazdaTributeInner14mm Threads, Compatible with Steering Tie Rod End
2010MercuryMarinerInner14mm Threads, Compatible with Steering Tie Rod End
2009FordEscapeInner14mm Threads, Compatible with Steering Tie Rod End
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
19311821
