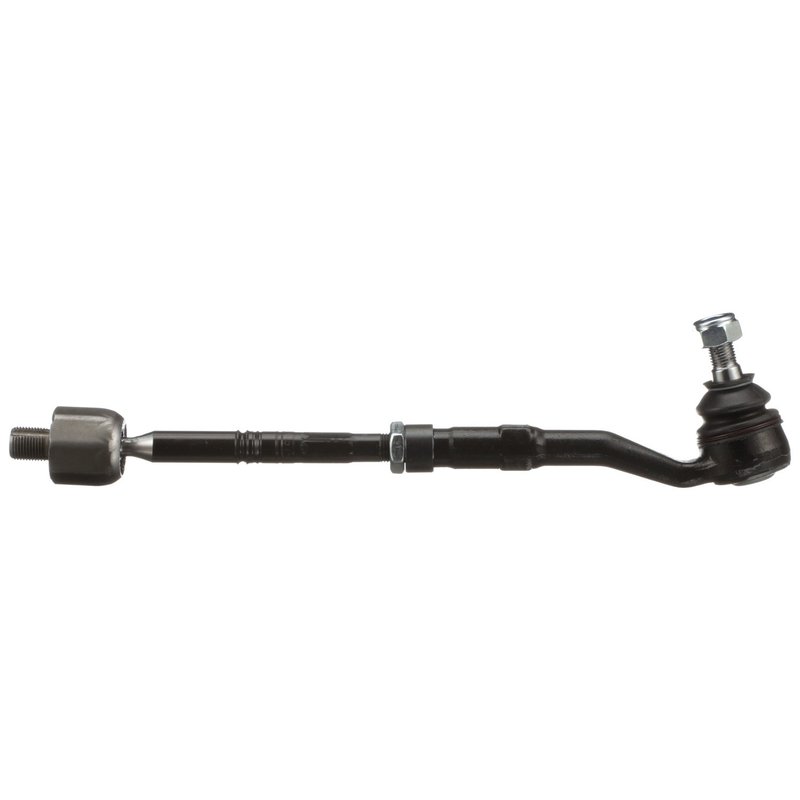

Delphi TA5499 Steering Tie Rod End Assembly - Front

Delphi Steering Tie Rod End Assembly Overview

The Delphi TA5499 steering tie rod end assembly is designed for precise steering control and reliable performance. Engineered for select BMW models, this part ensures a secure connection between the steering rack and the wheels, maintaining proper alignment and handling.

• Compatible with BMW 525xi, 528i xDrive, 528xi, 530xi, 535i xDrive, and 535xi models
• Standard replacement grade steel construction for durability
• Black cataphoresis finish for corrosion resistance
• Adjustable straight tie rod design with male ends on both sides
• Includes mounting hardware and a chloroprene rubber dust boot
• Thread specifications: End 1 - 0.551 inch diameter, clockwise thread, 1.5 pitch; End 2 - 0.709 inch diameter, clockwise thread, 1.5 pitch
• Length from stud center to end: 373.5 mm (14.705 inches)

Detailed Product Description

The Delphi TA5499 steering tie rod end assembly is a direct replacement part engineered to meet the specifications of various BMW models including the 525xi, 528i xDrive, 528xi, 530xi, 535i xDrive, and 535xi. Constructed from high-strength steel, this tie rod end features a durable black cataphoresis finish that provides enhanced corrosion resistance, extending the service life of the component. Both ends of the tie rod are male with clockwise threads and a 1.5 pitch, allowing for precise adjustment to maintain proper wheel alignment. The included chloroprene rubber dust boot protects the joint from dirt and moisture, helping to prevent premature wear. This assembly comes with all necessary mounting hardware for straightforward installation.

Common Applications and Issues Addressed

• Restores steering precision and responsiveness
• Eliminates excessive play or looseness in the steering linkage
• Prevents uneven tire wear caused by misalignment
• Replaces worn or damaged tie rod ends to improve vehicle safety
• Addresses noise or vibration issues related to steering components

Installation Notes and Tips

• Ensure compatibility with your BMW model before installation
• Use proper tools to avoid damaging threads during adjustment
• Verify correct thread direction and pitch for both ends
• Check and adjust wheel alignment after installation
• Inspect dust boot for proper seating to maintain joint protection

Quality Assurance and Warranty

The Delphi TA5499 tie rod end assembly is manufactured to meet OEM standards for fit, form, and function. This standard replacement grade part undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
