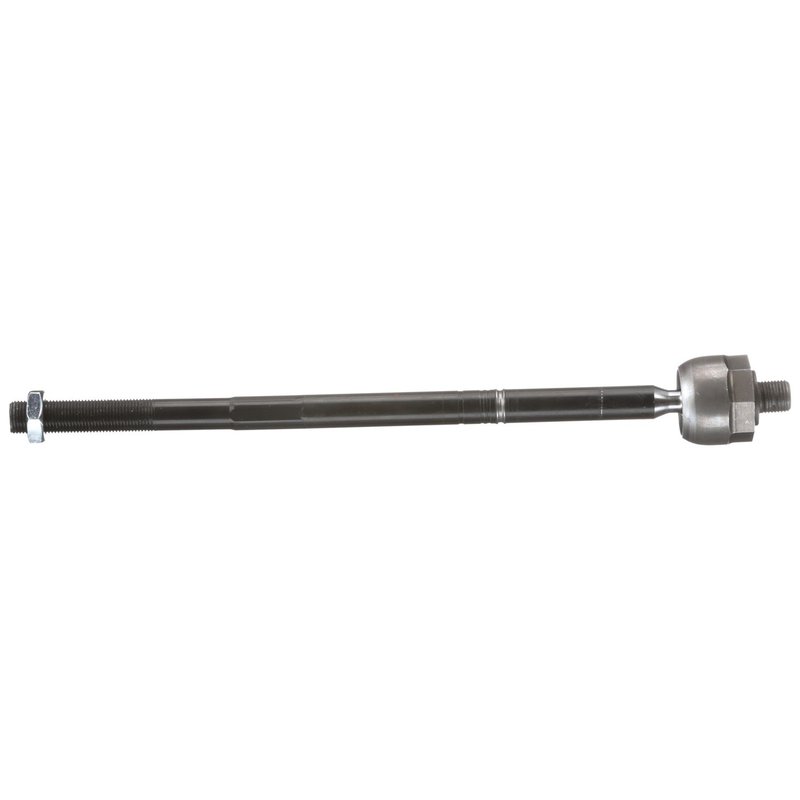

Delphi TA5506 Steering Tie Rod End - Inner

Delphi Steering Tie Rod End for Chrysler and Dodge Dart

The Delphi TA5506 steering tie rod end is designed for precise steering control and reliable performance in Chrysler and Dodge Dart vehicles. This adjustable inner tie rod end features a durable steel construction and a coated black finish to resist corrosion and wear.

• Length: 364.0 mm
• Color: Black with coated finish for durability
• Both ends feature male threads with 16.0 mm diameter and 1.5 mm pitch
• Adjustable straight type for precise alignment
• Pre-greased for immediate use, no grease fitting included
• Includes mounting hardware for straightforward installation
• Steel housing and tie rod material with polyoxymethylen (POM) bearing
• Weight: 1.7 lbs
• Designed for inner position on steering gear

Product Details and Specifications

The Delphi TA5506 steering tie rod end is engineered to meet standard replacement requirements for Chrysler and Dodge Dart models, specifically for the 200 Dart. Its steel housing and tie rod material provide strength and durability, while the coated black finish helps protect against corrosion. Both ends have male threads with a clockwise direction and a 1.5 mm pitch, ensuring compatibility with factory steering components. The adjustable straight design allows for precise alignment adjustments, improving steering response and vehicle handling. This part comes pre-greased, eliminating the need for immediate maintenance, although it does not include a grease fitting or dust boot. The included mounting hardware simplifies installation.

Common Applications and Problem Resolution

• Replaces worn or damaged inner tie rod ends on Chrysler and Dodge Dart 200 models
• Addresses steering play or looseness that affects vehicle handling
• Corrects uneven tire wear caused by misaligned steering components
• Eliminates clunking noises from the steering linkage
• Restores precise steering control and alignment adjustment capability

Installation Notes and Tips

Installation of the Delphi TA5506 tie rod end requires standard steering system tools. Since the part is pre-greased and includes mounting hardware, it can be installed without additional lubrication or hardware sourcing. Ensure proper torque specifications are followed for mounting bolts and verify alignment after installation. The adjustable feature allows fine-tuning of the steering geometry, so a professional alignment check is recommended post-installation to optimize vehicle handling and tire life.

Quality Assurance and Warranty

Delphi steering components are manufactured to meet OEM standards for fit, form, and function. The TA5506 tie rod end is a standard replacement grade part, designed to provide reliable service life consistent with factory specifications. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship under normal use.
