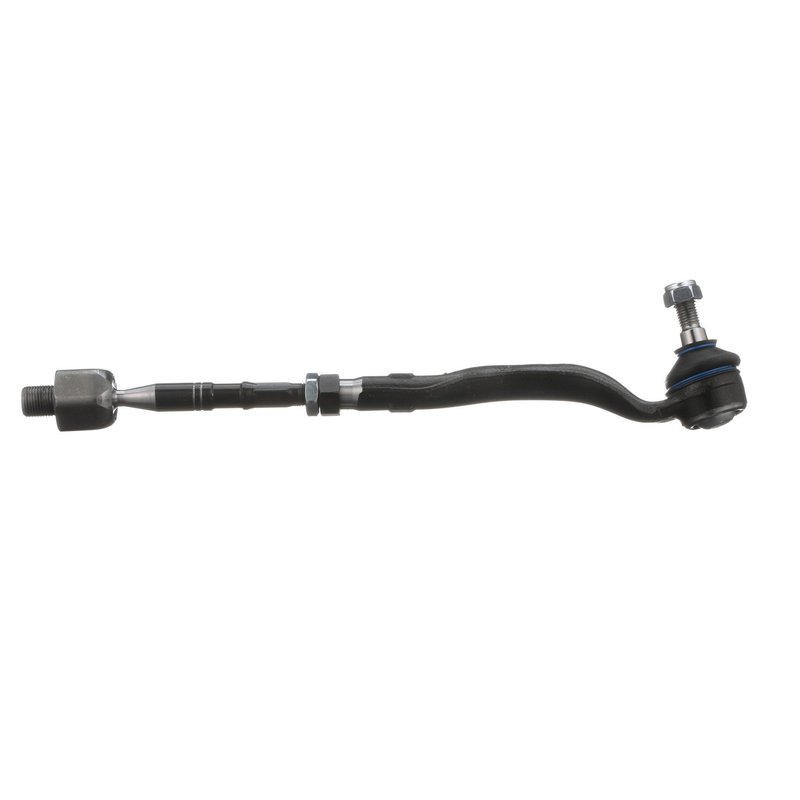

Delphi TA5509 Steering Tie Rod End Assembly - Left
OE Quality 60-Day Returns
Delphi

Delphi TA5509 Steering Tie Rod End Assembly - Left

Brand Delphi TA5509
Position Left
Adjustable Yes
Color Black
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Male
End 1 Thread Diameter 0.472
End 1 Thread Diameter 12.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Thread Diameter 0.709
End 2 Thread Diameter 18.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Cataphoresis
Grease Fitting Included No
Greaseable No
Item Grade Standard Replacement
Length Stud Center to End 14.685
Length Stud Center to End 373.0
Mounting Hardware Included Yes
Position(s) Inner
Tie Rod Material Steel
Type Bent
Fits BMW · 10 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility.

Cataphoresis finish. Adds corrosion resistance for demanding steering use.

Dust boot included. Helps protect the joint from dirt and moisture.

Cross-references Beck/Arnley 101-6907 and 32 21 6 751 039 for the same application. See all 2.

$92.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $92.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End Assembly options

Delphi TA5509 Inner Tie Rod End

Delphi TA5509 is a steering tie rod end assembly built for the inner position on select BMW applications. It is a standard replacement part for 2001-2005 BMW 325xi and 330xi models on the left side, with OE-focused construction and dimensional control for proper steering linkage service.

Key Features

  • Inner steering tie rod end assembly for the left side
  • Fits 2001-2005 BMW 325xi, left
  • Fits 2001-2005 BMW 330xi, left
  • Adjustable design for steering linkage setup
  • Steel tie rod construction with black cataphoresis finish
  • Dust boot included to help protect the joint
  • Clockwise thread direction on both ends
  • Male end connections with 12.0 mm and 18.0 mm thread diameters
  • Mounting hardware included
  • Delphi part number TA5509

Detailed Description

Delphi TA5509 is engineered as an OE-style steering tie rod end assembly for BMW 325xi and BMW 330xi models from 2001 through 2005. Delphi applies OE-level dimensional and material analysis to support correct fitment between the original steering component and the aftermarket replacement. The bent steel design, cataphoresis finish, and chloroprene rubber dust boot are selected to support durability in demanding steering service. This part cross-references Beck/Arnley 101-6907 for the same application.

What It Helps Address

  • Loose or imprecise steering feel from a worn inner tie rod end
  • Uneven front tire wear caused by steering linkage play
  • Clunking or knocking noises from the steering system
  • Steering wheel wander or poor directional stability
  • Service replacement for damaged or corroded steering linkage components

Installation Notes and Tips

Install Delphi TA5509 at the inner steering position only on the listed BMW applications. Verify left-side placement, thread direction, and thread size before installation. After replacement, perform a professional wheel alignment to restore steering geometry and tire wear characteristics. Confirm all fasteners and linkage connections are torqued to the vehicle manufacturer’s specifications.

Quality Assurance

Delphi tests steering components across extreme temperature ranges below -40 degrees C and above 120 degrees C, and exposes parts to 720 hours of salt spray to evaluate corrosion resistance. This OE-focused validation supports consistent performance for BMW 325xi and 330xi steering service. Part number TA5509 is built as a standard replacement steering tie rod end assembly.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2005BMW325xiLeft—
2005BMW330xiLeft—
2004BMW325xiLeft—
2004BMW330xiLeft—
2003BMW325xiLeft—
2003BMW330xiLeft—
2002BMW325xiLeft—
2002BMW330xiLeft—
2001BMW325xiLeft—
2001BMW330xiLeft—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 101-690732 21 6 751 039
