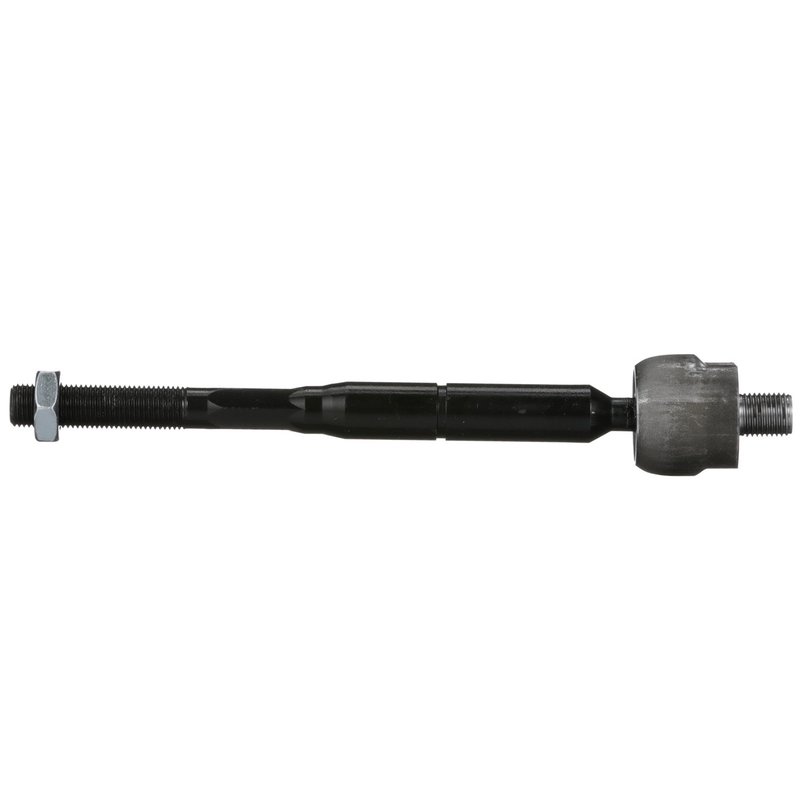

Delphi TA5512 Steering Tie Rod End - Inner
| Brand | Delphi TA5512 |
|---|---|
| Position | Inner |
| Adjustable | No |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black and Gray |
| Dust Boot Included | No |
| End 1 Gender | Male |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grade | Premium |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 38.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 241.0 |
| Length Stud Center to End | 8.07 |
| Length Stud Center to End | 205.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Inner |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Straight |
| Weight | 1.19 |
| Width | 38.0 |
| Fits | Chevrolet and Suzuki · 12 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a steel housing and tie rod for added durability.
Pre-greased design. Ready to install with mounting hardware included.
Cross-references Beck/Arnley 101-5637, MOOG Chassis Products EV800324 and 48830-67D00 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Front Inner Tie Rod End
Delphi TA5512 is a premium steering tie rod end for the front inner position on select Chevrolet Tracker and Suzuki Vitara models. Built with OE-focused dimensional and material analysis, it is made to match the steering geometry and fitment requirements of the original application.
This Delphi TA5512 tie rod end is a direct replacement for front inner steering service on 1999-2004 Chevrolet Tracker and 1999-2004 Suzuki Vitara applications.
Key Features
- Front inner steering tie rod end
- Steel housing and steel tie rod construction
- Pre-greased for initial service readiness
- Coated finish for added surface protection
- Male threaded ends with 14.0 mm thread diameter
- Clockwise thread direction on both ends
- Thread pitch: 1.5
- Straight design for OE-style steering linkage replacement
- Mounting hardware included
- Premium grade, standard replacement item
Detailed Description
Delphi TA5512 is engineered for the front inner steering location and is built to support precise steering linkage restoration on 1999-2004 Chevrolet Tracker and 1999-2004 Suzuki Vitara models. Delphi applies OE-level dimensional and material analysis to help ensure proper compatibility with the original steering system, while the steel housing, coated finish, and pre-greased construction support dependable service in demanding road conditions. The part number TA5512 is also referenced in aftermarket steering catalogs for the same application.
This part cross-references Beck/Arnley 101-5637 for the same application.
Common Problems This Part Can Address
- Excessive steering play at the front inner linkage
- Loose or imprecise steering response
- Uneven tire wear caused by worn steering components
- Clunking or knocking from the steering system
- Restoring correct toe adjustment after tie rod wear
Installation Notes and Tips
Verify thread direction, thread diameter, and position before installation. TA5512 is a straight, non-adjustable front inner tie rod end, so final alignment should be performed after installation to restore steering geometry. Confirm vehicle application by year, make, model, and inner position before service.
Quality Assurance
Delphi tests steering components across extreme temperature ranges and salt-spray exposure to evaluate durability and corrosion resistance. The brand also uses dimensional and material analysis to support OE-style fit and function in aftermarket steering parts.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Chevrolet | Tracker | Inner | — |
| 2004 | Suzuki | Vitara | Inner | — |
| 2003 | Chevrolet | Tracker | Inner | — |
| 2003 | Suzuki | Vitara | Inner | — |
| 2002 | Chevrolet | Tracker | Inner | — |
| 2002 | Suzuki | Vitara | Inner | — |
| 2001 | Chevrolet | Tracker | Inner | — |
| 2001 | Suzuki | Vitara | Inner | — |
| 2000 | Chevrolet | Tracker | Inner | — |
| 2000 | Suzuki | Vitara | Inner | — |
| 1999 | Chevrolet | Tracker | Inner | — |
| 1999 | Suzuki | Vitara | Inner | — |
