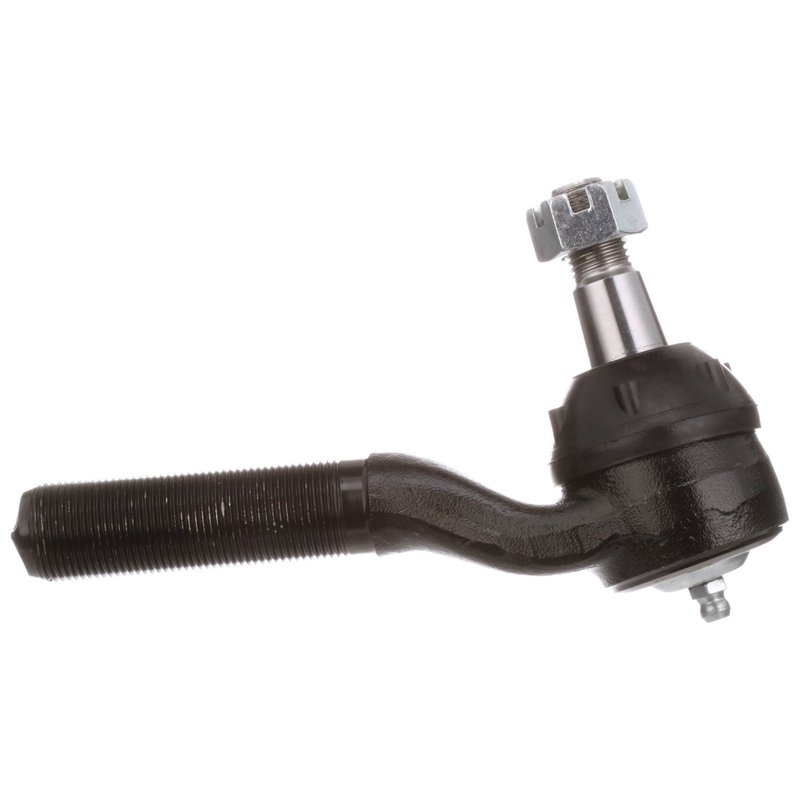

Delphi TA5532 Steering Tie Rod End - Right Outer

Delphi Steering Tie Rod End TA5532 Overview

The Delphi TA5532 steering tie rod end is engineered for reliable performance in Ford F-250 and F-350 trucks. Designed as a front right outer replacement, this component ensures precise steering control and durability under demanding conditions.

• Length: 163.0 mm with a width of 45.0 mm and height of 91.0 mm
• Coated black finish for corrosion resistance
• Steel housing and tie rod material for strength
• Pre-greased and grease fitting included for maintenance ease
• Dust boot made of chloroprene rubber to protect internal components
• Bent type with male threaded ends (End 1: 22.0 mm diameter, End 2: 14.0 mm diameter)
• Mounting hardware included for straightforward installation
• Non-adjustable, standard grade replacement part

Technical Details and Construction

The Delphi TA5532 tie rod end features a robust steel housing and tie rod construction, providing the necessary strength for heavy-duty use in Ford F-250 and F-350 models. Both ends are male threaded with a clockwise thread direction and a 1.5 thread pitch, ensuring compatibility with factory steering components. The bent design accommodates the specific geometry of the front right outer position. A plastic bearing material reduces friction, while the included chloroprene rubber dust boot protects against dirt and moisture intrusion. This part is pre-greased and greaseable, with a grease fitting included to facilitate ongoing maintenance and extend service life.

Compatible Vehicles and Applications

This steering tie rod end is compatible with Ford F-250 and F-350 trucks, specifically designed for the front right outer position. It is intended as a standard replacement part for steering gear and related components, helping to restore proper steering function and vehicle handling.

• Eliminates steering play and improves responsiveness
• Replaces worn or damaged tie rod ends causing uneven tire wear
• Addresses noise or vibration from loose steering components
• Restores alignment and steering geometry
• Prevents further damage to steering linkage

Installation Notes and Tips

Installation of the Delphi TA5532 tie rod end includes all necessary mounting hardware for a secure fit. Ensure the vehicle is properly supported and the steering system is aligned after replacement. The grease fitting allows for easy lubrication post-installation, which is recommended to maintain smooth operation. Since this part is non-adjustable, alignment should be checked and corrected as needed after installation.

Quality Assurance and Warranty

Delphi manufactures the TA5532 tie rod end to meet standard replacement grade specifications, using durable materials and protective coatings. The part is pre-greased and includes a grease fitting and dust boot to enhance longevity. While specific warranty details are not provided, Delphi products typically adhere to industry quality standards for steering components.
