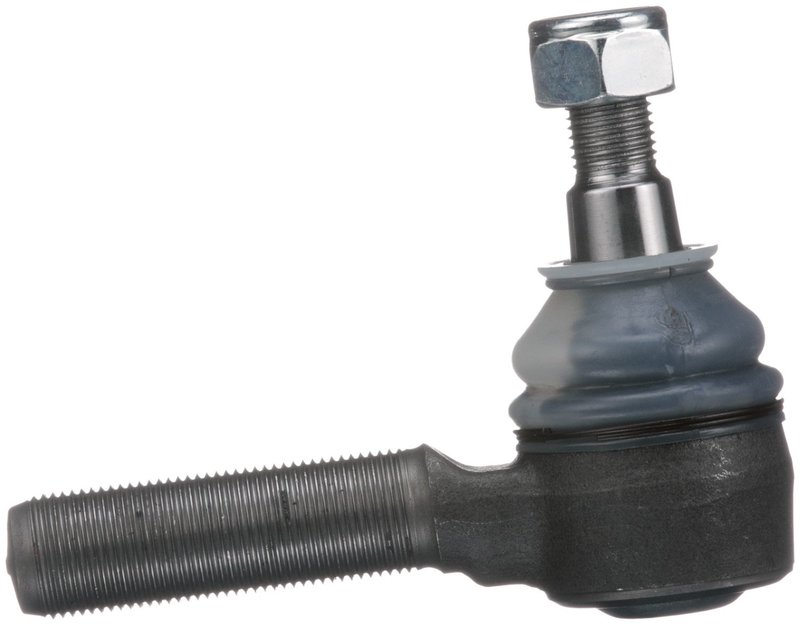

Delphi TA5534 Steering Tie Rod End - Left
| Brand | Delphi TA5534 |
|---|---|
| Position | Left |
| Length | 122.0 |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Finish | Coated |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 43.0 |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.787 |
| End 2 Thread Diameter | 20.0 |
| Height | 88.6 |
| Housing Material | Steel |
| Tube Diameter | 0.787 |
| Tube Diameter | 20.0 |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.34 |
| Cone Outside Diameter | 18.9 |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Direction | Clockwise |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 |
| Length Stud Center to End | 101.0 |
| Length Stud Center to End | 3.976 |
| Dust Boot Material | Choloroprene rubber (cr) |
| Tie Rod Material | Steel |
| Fits | — |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a steel housing and tie rod for added durability.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references MW033301 for the same application. See all 1.
Delphi TA5534 Steering Tie Rod End
Delphi TA5534 is a straight steering tie rod end built as a standard replacement for left-side steering service. It features a steel housing, coated finish, pre-greased construction, and a dust boot to support consistent steering response in demanding road conditions. This Delphi tie rod end is engineered with OE-focused dimensional and material analysis for accurate replacement fit and function.
Key Features
- Part number: TA5534
- Left-side steering tie rod end
- Straight design with male/male ends
- Steel housing with coated finish
- Pre-greased and non-greaseable design
- Dust boot included for joint protection
- Mounting hardware included
- Standard replacement grade
- Thread details: 14.0 mm end 1, 20.0 mm end 2
- Compatible with applications that call for Delphi TA5534 or cross-reference MW033301
Detailed Description
Delphi TA5534 steering tie rod end is designed for vehicles that require a left-position straight tie rod end with threaded male connections and OE-style dimensions. The steel body, chloroprene rubber dust boot, and pre-greased joint help maintain steering linkage integrity while reducing exposure to dirt and moisture. Delphi validates its steering components through extreme temperature and salt-spray testing, along with dimensional and material analysis, to support consistent replacement performance. If you are servicing a steering tie rod end on a vehicle such as a Honda Civic or similar application listed for this part, TA5534 provides a direct-fit replacement option for steering repair work.
Common Repair Uses
- Loose or imprecise steering feel
- Clunking or play in the steering linkage
- Uneven tire wear caused by worn front-end steering parts
- Failed dust boot or contaminated tie rod joint
- Restoring steering response after suspension or alignment service
Installation Notes and Tips
Confirm left-side placement, thread direction, and thread diameter before installation. After replacing the tie rod end, a professional wheel alignment is recommended to restore steering geometry. Verify the mating steering components for wear before final assembly, and torque fasteners to the vehicle manufacturer’s specifications. This part number, TA5534, should be matched to the vehicle’s original steering configuration before service begins.
Quality Assurance
Delphi applies OE-focused engineering to its aftermarket steering portfolio and subjects components to temperature extremes and extended salt-spray exposure testing. The brand’s dimensional and material analysis is used to improve OE-to-aftermarket compatibility for steering replacement parts such as TA5534.
