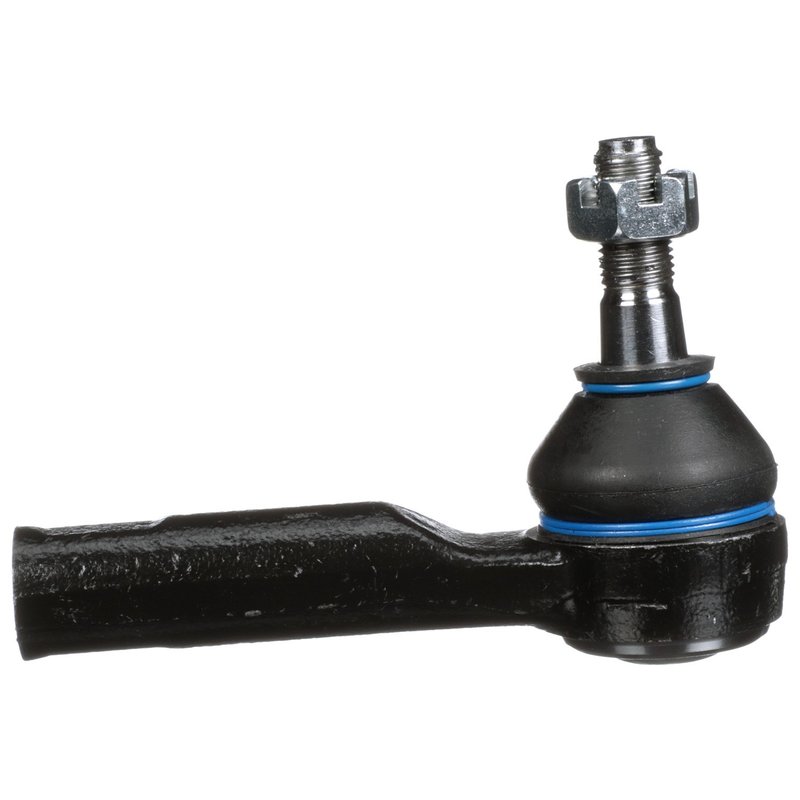

Delphi TA5977 Steering Tie Rod End - Outer
| Brand | Delphi TA5977 |
|---|---|
| Position | Outer |
| Length | 118.0 |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Finish | Coated |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37.0 |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.0 |
| Height | 81.0 |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.99 |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Direction | Clockwise |
| Grade | Standard |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 100.0 |
| Dust Boot Material | Choloroprene rubber (cr) |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.0 |
| Item Grade | Standard replacement |
| Fits | Mazda · 4 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Coated housing and tie rod resist harsh conditions.
Dust boot included. Helps protect the joint from dirt and moisture.
Cross-references Beck/Arnley 101-7902 and KD31-32-280 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA5977 Outer Tie Rod End
Delphi TA5977 is an outer steering tie rod end built for OE-style replacement on select Mazda CX-5 models. It combines a steel housing, coated finish, and included dust boot to support precise steering linkage service on 2013-2016 Mazda CX-5 outer applications.
Key Features
- Outer steering tie rod end for steering linkage repair
- Fits 2013-2016 Mazda CX-5, outer
- Steel housing with coated finish
- Dust boot included for joint protection
- Threaded stud design with clockwise thread direction on both ends
- Mounting hardware included
- Standard replacement grade
- Delphi part number TA5977
Product Details
Delphi applies OE engineering knowledge to its aftermarket steering portfolio, with dimensional and material analysis used to match OE and replacement part compatibility. TA5977 is a straight, non-adjustable outer tie rod end with a steel tie rod material, plastic bearing material, and chloroprene rubber dust boot. It is built for the steering system on 2013-2016 Mazda CX-5 models in the outer position and is also referenced by Beck/Arnley 101-7902 and KD31-32-280 for the same application. Delphi TA5977 is a direct-fit steering tie rod end for Mazda CX-5 outer steering service.
Common Repair Uses
- Restoring steering response after worn tie rod end wear
- Correcting looseness or play in the outer steering linkage
- Addressing clunking or knocking from the front steering system
- Replacing a damaged dust boot or corroded joint assembly
- Supporting proper front-end alignment after steering component replacement
Installation Notes and Tips
Verify thread sizes, thread pitch, and outer position before installation. This part uses a 14.0 mm end 1 thread diameter with 1.5 pitch and a 12.0 mm end 2 thread diameter with 1.25 pitch. Because the part is not adjustable, final alignment should be checked after installation on the vehicle. Delphi TA5977 includes mounting hardware and a dust boot, and it is intended for 2013-2016 Mazda CX-5 outer steering service.
Quality Assurance
Delphi tests steering components across extreme temperature and corrosion conditions, including sub-zero and high-heat exposure and extended salt-spray testing, to evaluate OE-level durability and fit consistency. The brand’s OE-focused dimensional and material analysis supports replacement part compatibility for Mazda CX-5 steering repairs.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Mazda | CX-5 | Outer | — |
| 2015 | Mazda | CX-5 | Outer | — |
| 2014 | Mazda | CX-5 | Outer | — |
| 2013 | Mazda | CX-5 | Outer | — |
