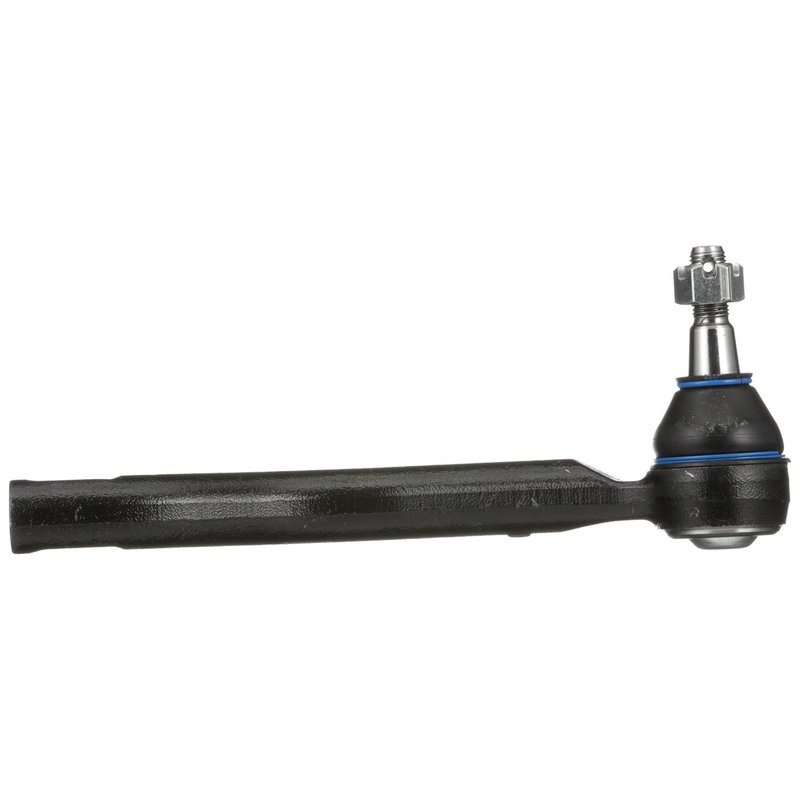

Delphi TA5986 Steering Tie Rod End - Left Outer

Delphi Steering Tie Rod End TA5986 Overview

The Delphi TA5986 steering tie rod end is engineered for reliable performance in select Nissan and INFINITI vehicles. Designed with durable steel construction and a coated finish, this black bent tie rod end ensures consistent steering response and longevity for models like the Nissan Murano, Pathfinder, JX35, and INFINITI QX60.

• Compatible with Nissan Murano, Pathfinder, JX35 and INFINITI QX60
• Durable steel housing with coated black finish for corrosion resistance
• Pre-greased with included dust boot for extended service life
• Bent type design with male and female threaded ends (clockwise threads)
• Includes mounting hardware for straightforward installation

Technical Specifications and Features

The TA5986 tie rod end features a steel tube with a 0.906 inch (23.0 mm) diameter and a total width of 59.3 mm. The height measures 92.7 mm, and the overall length from stud center to end is 216.0 mm (8.504 inches). Both ends have threaded studs with clockwise thread direction; the male end thread diameter is 0.472 inches, while the female end thread diameter is 0.63 inches (16.0 mm) with a 1.5 thread pitch. The plastic bearing material and chloroprene rubber dust boot help protect internal components from contaminants. This part is not adjustable or greaseable but comes pre-greased and includes mounting hardware for ease of replacement.

Application and Common Issues Addressed

• Restores precise steering control in Nissan Murano, Pathfinder, JX35, and INFINITI QX60
• Replaces worn or damaged tie rod ends causing steering play or uneven tire wear
• Eliminates noise or vibration from loose steering components
• Prevents dust and debris ingress with included chloroprene rubber dust boot
• Addresses steering alignment problems related to bent or corroded tie rod ends

Installation Notes and Tips

Installation of the Delphi TA5986 tie rod end requires proper tools to remove the old component and torque the new part to manufacturer specifications. Since this tie rod end is not adjustable, alignment should be checked and corrected after installation. The included mounting hardware simplifies the replacement process. Ensure the dust boot is properly seated to maintain protection against dirt and moisture.

Quality Assurance and Warranty

Delphi manufactures the TA5986 tie rod end to meet or exceed OEM standards for fit, form, and function. The steel housing and coated finish provide corrosion resistance for extended durability. This part is pre-greased and includes a dust boot to enhance service life. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
