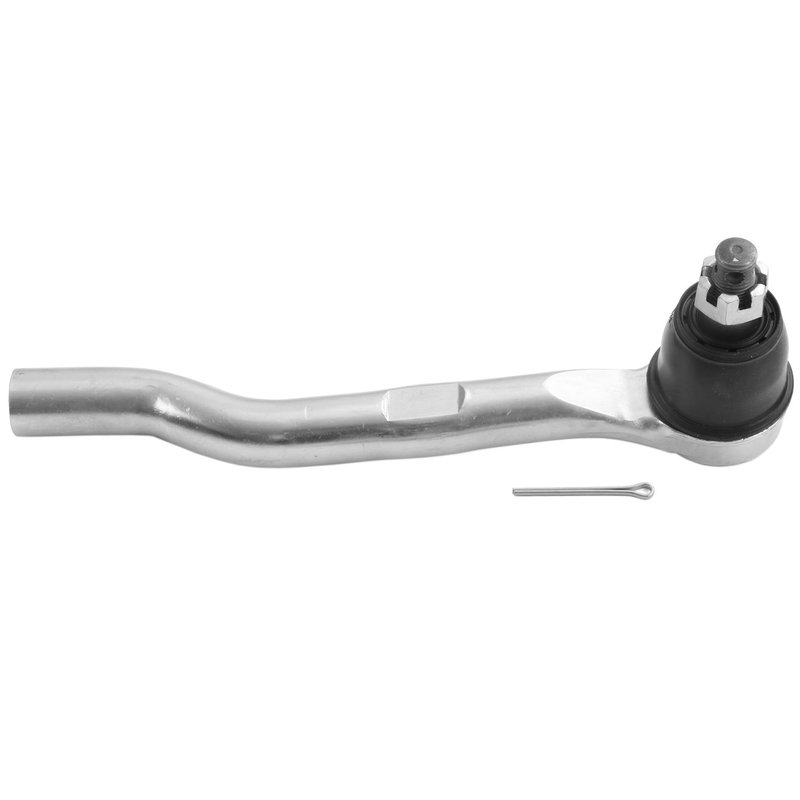

Delphi TA6320 Steering Tie Rod End - Right Outer
| Brand | Delphi TA6320 |
|---|---|
| Position | Right Outer |
| Adjustable | No |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Cone Outside Diameter | 18.1 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Thread Diameter | 0.472 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Thread Diameter | 0.551 |
| End 2 Thread Direction | Clockwise |
| Friction Material Thickness | Coated |
| Grade Type | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 78.5 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 8.11 |
| Length Stud Center to End | 206.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.787 |
| Tube Diameter | 20.0 |
| Type | Bent |
| Weight | 1.45 |
| Width | 46.5 |
| Fits | Honda and Acura · 20 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with a corrosion-resistant finish.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references MOOG Chassis Products ES801204 and 53540-TZ5-A01 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Steering Tie Rod End
Delphi TA6320 is a steering tie rod end built for the right outer position on select Honda and Acura applications. It combines OE-focused dimensional analysis with materials and testing intended to match factory fit and steering response on the road.
Fits 2019-2021 Honda Passport, right outer; 2016-2021 Honda Pilot, right outer; 2014-2020 Acura MDX, right outer; and 2017-2020 Honda Ridgeline, right outer.
Key Features
- Part number TA6320 for direct reference and ordering
- Right outer steering tie rod end
- Pre-greased design with no grease fitting
- Dust boot included to help protect the joint
- Coated black finish with steel housing and steel tie rod material
- Bent style construction with standard replacement grade
- Mounting hardware included
- OE-focused compatibility checks for fit and function
Detailed Description
Delphi TA6320 is engineered as a standard replacement steering tie rod end for the right outer side. Delphi applies OE-level dimensional and material analysis to help ensure proper compatibility with the factory steering geometry on the Honda Passport, Honda Pilot, Acura MDX, and Honda Ridgeline applications listed above. The joint is pre-greased, uses a polyoxymethylene bearing material, and includes a chloroprene rubber dust boot for added protection against contamination.
Delphi subjects its steering components to extreme temperature exposure and extended salt-spray testing to evaluate durability in demanding conditions. This part cross-references MOOG Chassis Products ES801204 for the same application.
What This Part Helps Address
- Loose or worn steering feel at the front right wheel
- Clunking or play from a worn outer tie rod end
- Uneven steering response during lane changes or turns
- Front-end alignment issues caused by joint wear
- Steering vibration traced to a deteriorated tie rod end
Installation Notes and Tips
Install Delphi TA6320 on the right outer steering position only. Verify thread direction, thread diameter, and overall dimensions against the removed part before installation. After replacement, a professional wheel alignment is recommended to restore steering geometry and tire wear characteristics. This part is listed for 2014-2020 Acura MDX, 2016-2021 Honda Pilot, 2017-2020 Honda Ridgeline, and 2019-2021 Honda Passport right outer applications.
Quality Assurance
Delphi uses OE safety technology and applies OE-focused testing to its aftermarket steering portfolio. TA6320 is evaluated for temperature resistance and corrosion exposure, with dimensional and material checks used to support consistent fitment across the confirmed vehicle applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Honda | Passport | Right Outer | — |
| 2021 | Honda | Pilot | Right Outer | — |
| 2020 | Acura | MDX | Right Outer | — |
| 2020 | Honda | Passport | Right Outer | — |
| 2020 | Honda | Pilot | Right Outer | — |
| 2020 | Honda | Ridgeline | Right Outer | — |
| 2019 | Acura | MDX | Right Outer | — |
| 2019 | Honda | Passport | Right Outer | — |
| 2019 | Honda | Pilot | Right Outer | — |
| 2019 | Honda | Ridgeline | Right Outer | — |
| 2018 | Acura | MDX | Right Outer | — |
| 2018 | Honda | Pilot | Right Outer | — |
| 2018 | Honda | Ridgeline | Right Outer | — |
| 2017 | Acura | MDX | Right Outer | — |
| 2017 | Honda | Pilot | Right Outer | — |
| 2017 | Honda | Ridgeline | Right Outer | — |
| 2016 | Acura | MDX | Right Outer | — |
| 2016 | Honda | Pilot | Right Outer | — |
| 2015 | Acura | MDX | Right Outer | — |
| 2014 | Acura | MDX | Right Outer | — |
