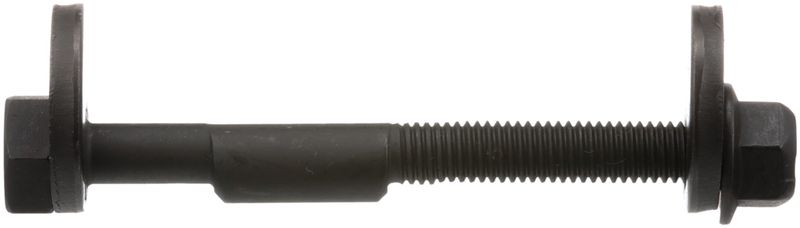

Delphi TAL10005 Alignment Cam Bolt Kit - Rear

Delphi TAL10005 Rear Alignment Cam Bolt Kit

Delphi TAL10005 is a rear alignment cam bolt kit built for precise suspension adjustment on select GM vehicles. It combines a cam bolt design with a 12.9 grade bolt and included nut to support accurate rear alignment settings on applications such as the Chevrolet Malibu, Buick Regal, Buick LaCrosse, Cadillac XTS, and Chevrolet Impala.

Key Features

• Alignment cam bolt kit for rear suspension adjustment
• 12.9 grade bolt for high-strength fastening
• Nut included
• Adjustable angle design for alignment correction
• Thread length: 2.00 in. (50.80 mm)
• Bolt length: 4.49 in. (114.05 mm)
• Cam thickness: 0.20 in. (5.08 mm)
• Rear position application

Product Details

Delphi TAL10005 is engineered for rear suspension alignment service where cam adjustment is required. Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and function, and the part is tested for demanding temperature extremes and salt-spray exposure. This makes TAL10005 a practical replacement for rear alignment work on 2010-2019 Buick LaCrosse, 2011-2017 Buick Regal, 2013-2019 Cadillac XTS, 2013-2023 Chevrolet Malibu, 2014-2020 Chevrolet Impala, 2018-2020 Buick Regal Sportback, and 2018-2020 Buick Regal TourX. This part cross-references MOOG Chassis Products K100256 for the same application.

Common Uses

• Rear camber or toe correction after suspension service
• Restoring alignment adjustment range on worn rear hardware
• Replacing seized or damaged rear cam bolts
• Supporting proper rear wheel alignment on GM sedans and wagons

Installation Notes

Install TAL10005 at the rear suspension location specified by the vehicle service procedure. Verify bolt orientation, cam position, and torque settings during alignment service. Because this is an adjustable cam bolt kit, final alignment should be performed with professional alignment equipment after installation.

Quality Assurance

Delphi subjects its OE-style steering and suspension components to temperature cycling below -40 degrees C and above 120 degrees C, along with 720 hours of salt-spray exposure. Delphi TAL10005 is built using OE-focused engineering and material analysis to support consistent fitment and durability.
