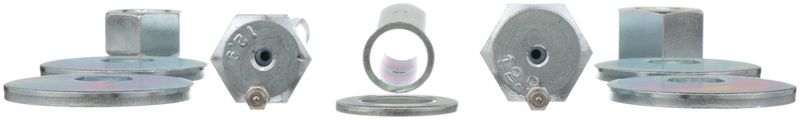

Delphi TAL10012 Alignment Cam Bolt Kit - Front

Delphi TAL10012 Alignment Cam Bolt Kit

Delphi TAL10012 is a front alignment cam bolt kit built for precise suspension adjustment on select Toyota and Lexus applications. It uses OE-focused materials and dimensional analysis to support proper fitment for front-end alignment service on Toyota Tundra, Toyota Sequoia, Lexus LX570, and Toyota Land Cruiser.

Key Features

• Adjustment type: cam bolt for front alignment correction
• Front position application
• Nut included
• Grease fitting included
• Steel washer material with gray finish
• Steel bushing material
• Cam thickness: 0.20 in / 5.08 mm
• Bolt length: 5.53 in / 5.91 in / 140.46 mm / 150.11 mm
• Thread length: 1.74 in / 2.35 in / 44.20 mm / 59.69 mm

Detailed Description

The Delphi TAL10012 alignment cam bolt kit is engineered for front suspension alignment service where cam-style adjustment is required. Delphi applies OE-level dimensional and material analysis to help maintain proper compatibility between the replacement hardware and the original suspension design. The kit is built with steel components, includes a grease fitting, and is specified for front use on 2007-2023 Toyota Tundra, 2008-2023 Toyota Sequoia, 2008-2011 Toyota Land Cruiser, 2013-2021 Toyota Land Cruiser, 2008-2011 Lexus LX570, and 2013-2021 Lexus LX570. This part cross-references Gates K100381 for the same application. Delphi TAL10012 is a practical choice when servicing front alignment hardware on Toyota Tundra and Toyota Sequoia platforms that require cam bolt adjustment.

What It Helps Address

• Front wheel alignment that cannot be set within specification
• Camber or caster adjustment needs after suspension service
• Worn or seized alignment hardware
• Replacement of corroded front cam bolts and related fasteners
• Restoring adjustment range on Toyota and Lexus front suspension systems

Installation Notes and Tips

Install on the front suspension only and verify vehicle-specific alignment settings before final tightening. Inspect surrounding bushings, washers, and mounting points for wear or corrosion before installation. After replacement, perform a professional wheel alignment to confirm camber and caster are set to specification. Use the listed fitment carefully for Toyota Tundra, Toyota Sequoia, Lexus LX570, and Toyota Land Cruiser applications.

Quality Assurance

Delphi tests replacement steering and suspension components for extreme temperature exposure and extended salt-spray resistance, reflecting OE-focused validation practices. The brand also uses dimensional and material analysis to support consistent fit and performance across OE and aftermarket applications.
