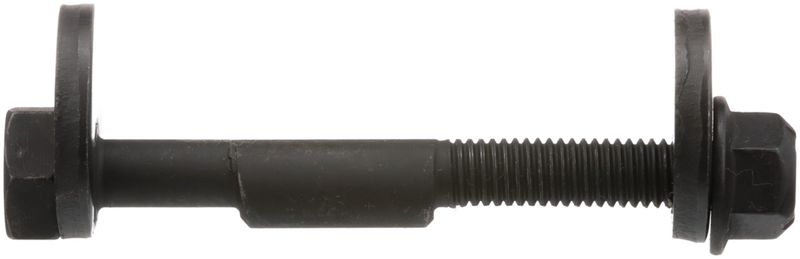

Delphi TAL10030 Alignment Cam Bolt Kit - Rear

Rear Alignment Cam Bolt Kit for OE-Style Adjustment

Delphi TAL10030 is a rear alignment cam bolt kit built for precise suspension adjustment on select Buick, Cadillac, and Chevrolet models. It is a direct-fit hardware solution for rear camber and alignment correction where cam bolt adjustment is required.

• Adjustment type: cam bolt
• Bolt grade: 12.9
• Black finish
• Adjustable angle: yes
• Nut included: yes
• Rear position application
• Bolt length: 4.00 in. (101.60 mm)
• Thread length: 1.76 in. (44.70 mm)
• Cam thickness: 0.20 in. (5.08 mm)

Fitment Details

• Fits 2013-2024 Chevrolet Malibu, rear
• Fits 2018-2020 Buick Regal Sportback, rear
• Fits 2018-2020 Buick Regal TourX, rear
• Fits 2014-2020 Chevrolet Impala, rear
• Fits 2010-2019 Buick LaCrosse, rear
• Fits 2013-2019 Cadillac XTS, rear
• Fits 2011-2017 Buick Regal, rear

What This Part Helps Correct

• Rear wheel alignment that is out of specification
• Camber adjustment needs after suspension service
• Uneven tire wear caused by rear alignment settings
• Steering pull related to rear suspension geometry
• Alignment correction after replacing rear suspension components

Installation Notes

Install on the rear suspension where cam bolt adjustment is specified for the vehicle. Verify alignment settings after installation and torque fasteners to the vehicle manufacturer’s specifications. This part cross-references MOOG Chassis Products K100256 for the same application.

Quality Assurance

Delphi applies OE-focused engineering to its steering and suspension portfolio. This kit is tested for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray to evaluate corrosion resistance and durability. Delphi also uses dimensional and material analysis to support OE-to-aftermarket fit consistency.
