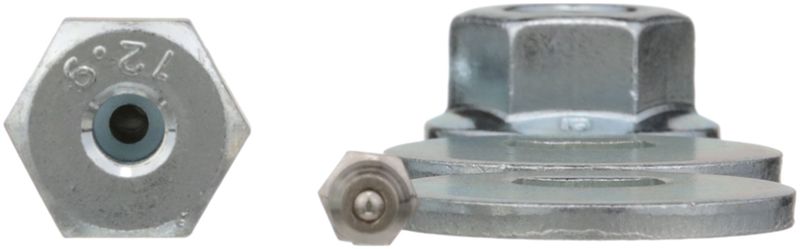

Delphi TAL10032 Alignment Camber / Toe Kit - Rear
| Brand | Delphi TAL10032 |
|---|---|
| Position | Rear |
| Bolt Head Type | Hex |
| Integral Washer Outside Diameter | 1.27 |
| Integral Washer Outside Diameter | 32.258 |
| Bolt Thread Type | Extra fine |
| Bolt Color | Gray |
| Universal Or Specific Fit | Specific |
| Washer Material | Steel |
| Integral Washer Inside Diameter | 0.476 |
| Integral Washer Inside Diameter | 12.09 |
| Bolt Length | 2.36 |
| Bolt Length | 59.944 |
| Fits | Mazda · 32 vehicles |
OE expertise built in. Delphi applies OE engineering to aftermarket steering and alignment parts.
Extreme-condition tested. Withstands subzero cold, high heat, and 720 hours of salt spray.
Specific rear fit. Made for a precise rear alignment camber/toe application.
Cross-references MOOG Chassis Products K100394 for the same application. See all 1.
Rear Alignment Camber / Toe Kit for Mazda
Delphi TAL10032 is a rear alignment camber / toe kit built for specific-fit applications on select Mazda vehicles. It is engineered for rear suspension alignment correction on Mazda 3, Mazda 5, and Mazda CX-7 models, with OE-focused dimensional and material analysis for proper part matching.
Key Features
- Specific-fit rear alignment camber / toe kit
- Hex bolt head with extra fine thread
- Gray bolt finish with steel integral washer
- Bolt length: 2.36 in. (59.944 mm)
- Integral washer outside diameter: 1.27 in. (32.258 mm)
- Integral washer inside diameter: 0.476 in. (12.09 mm)
- Rear position application
- Cross-reference: MOOG Chassis Products K100394
Detailed Description
Delphi TAL10032 is a rear suspension alignment camber / toe kit for vehicles that require precise rear alignment adjustment. Delphi applies OE engineering experience to its aftermarket steering and suspension portfolio, with testing that includes extreme temperature exposure and extended salt-spray corrosion evaluation. This part is built for specific-fit use on 2004-2018 Mazda 3 rear, 2006-2010 Mazda 5 rear, 2012-2017 Mazda 5 rear, and 2007-2012 Mazda CX-7 rear applications. If you are sourcing a rear alignment camber / toe kit for a Mazda 3, Mazda 5, or Mazda CX-7, Delphi TAL10032 provides the correct fitment profile for those listed rear positions.
What It Helps Address
- Rear wheel camber or toe adjustment after suspension service
- Uneven tire wear caused by rear alignment settings
- Steering pull or tracking issues related to rear geometry
- Alignment correction after worn suspension components are replaced
- Rear suspension setup on Mazda 3, Mazda 5, and Mazda CX-7 models
Installation Notes and Tips
Install only on the rear position listed for the vehicle application. Verify the vehicle year, model, and rear suspension configuration before ordering. Because this is a specific-fit alignment component, compare the existing hardware dimensions and thread style to the original part before installation. A professional wheel alignment should be performed after replacement to confirm rear camber and toe settings.
Quality Assurance
Delphi subjects its OE-style steering and suspension parts to dimensional and material analysis, low-temperature and high-temperature exposure, and 720 hours of salt-spray testing to evaluate durability and fit consistency. Part number TAL10032 is built to align with the OE application requirements for the listed Mazda rear suspension fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Mazda | 3 | Rear | — |
| 2017 | Mazda | 3 | Rear | — |
| 2017 | Mazda | 5 | Rear | — |
| 2016 | Mazda | 3 | Rear | — |
| 2016 | Mazda | 5 | Rear | — |
| 2015 | Mazda | 3 | Rear | — |
| 2015 | Mazda | 5 | Rear | — |
| 2014 | Mazda | 3 | Rear | — |
| 2014 | Mazda | 5 | Rear | — |
| 2013 | Mazda | 3 | Rear | — |
| 2013 | Mazda | 5 | Rear | — |
| 2012 | Mazda | 3 | Rear | — |
| 2012 | Mazda | 5 | Rear | — |
| 2012 | Mazda | CX-7 | Rear | — |
| 2011 | Mazda | 3 | Rear | — |
| 2011 | Mazda | CX-7 | Rear | — |
| 2010 | Mazda | 3 | Rear | — |
| 2010 | Mazda | 5 | Rear | — |
| 2010 | Mazda | CX-7 | Rear | — |
| 2009 | Mazda | 3 | Rear | — |
| 2009 | Mazda | 5 | Rear | — |
| 2009 | Mazda | CX-7 | Rear | — |
| 2008 | Mazda | 3 | Rear | — |
| 2008 | Mazda | 5 | Rear | — |
| 2008 | Mazda | CX-7 | Rear | — |
| 2007 | Mazda | 3 | Rear | — |
| 2007 | Mazda | 5 | Rear | — |
| 2007 | Mazda | CX-7 | Rear | — |
| 2006 | Mazda | 3 | Rear | — |
| 2006 | Mazda | 5 | Rear | — |
| 2005 | Mazda | 3 | Rear | — |
| 2004 | Mazda | 3 | Rear | — |
