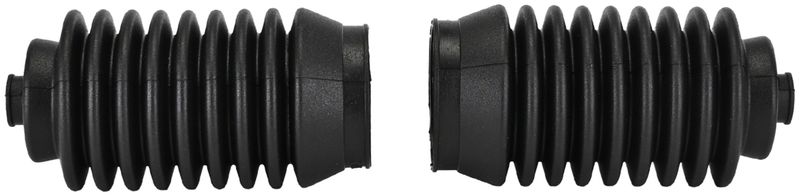

Delphi TBR4517 Rack and Pinion Bellows

OE-Style Steering Bellows for Toyota Applications

Delphi TBR4517 is a rack and pinion bellows for select Toyota steering systems. It is built using Delphi’s OE-focused dimensional and material analysis to support proper fit and reliable sealing in the steering gear area.

Key Features

• Rack and pinion bellows for steering gear protection
• OE-based fitment engineering for dimensional compatibility
• Tested for extreme temperature exposure from below -40°C to over 120°C
• Exposed to 720 hours of salt spray during validation
• Fits 1996-2003 Toyota RAV4 and 1993-1997 Toyota Corolla
• Delphi TBR4517 cross-references Beck/Arnley 103-2838 and MOOG Chassis Products K150294 for the same application

Detailed Description

Delphi TBR4517 is a steering rack bellows designed for Toyota RAV4 and Toyota Corolla applications that use a rack and pinion steering layout. By protecting the steering rack from dirt, moisture, and road debris, the bellows helps preserve steering component condition and maintain consistent steering system operation. This part number is a direct fit for 1996-2003 Toyota RAV4 and 1993-1997 Toyota Corolla applications listed in the fitment data.

Delphi applies OE-level analysis to match materials and dimensions closely to the original part, which supports proper installation and sealing performance. The Delphi TBR4517 is a practical replacement choice when servicing a worn, cracked, or leaking steering bellows on a Toyota RAV4 or Toyota Corolla.

What It Helps Address

• Cracked or torn steering rack bellows
• Contamination entering the steering rack area
• Moisture exposure around steering gear components
• Road debris damaging steering rack boots
• Loss of protective sealing at the rack and pinion assembly

Installation Notes and Tips

Inspect the steering rack, tie rod ends, and clamps before installation. Replace the bellows if the original boot shows splits, hardening, or grease contamination. Confirm vehicle application by year and model before ordering, especially for 1996-2003 Toyota RAV4 and 1993-1997 Toyota Corolla.

Quality Assurance

Delphi validates this steering component through temperature and corrosion testing to support OE-style durability in aftermarket service. The brand’s OE engineering background is applied to its steering portfolio to help maintain fit and performance expectations.
