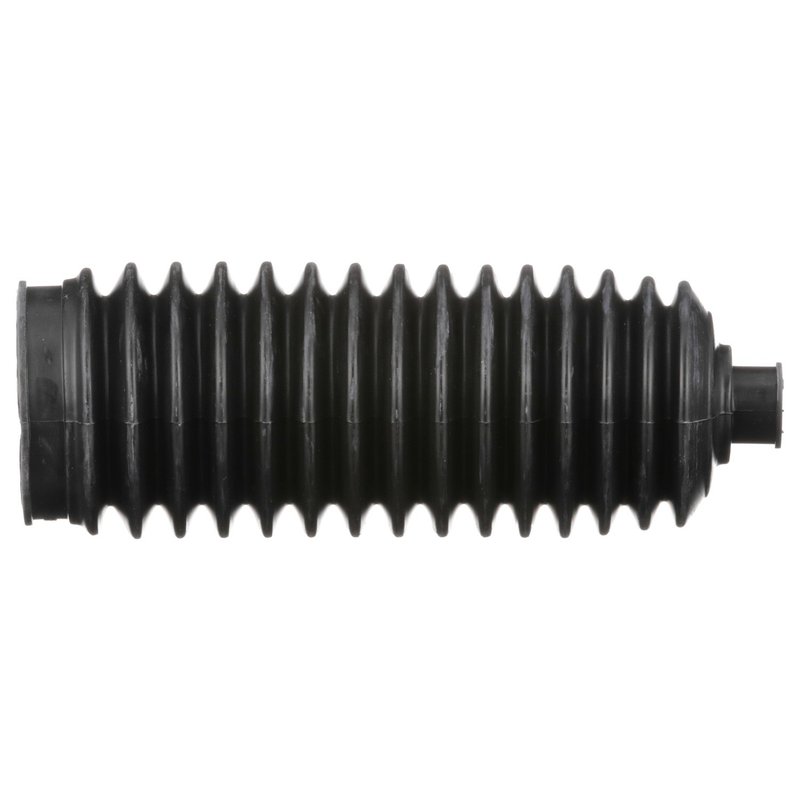

Delphi TBR5029 Rack and Pinion Bellows Kit - Front Left or Front Right

Delphi Rack and Pinion Bellows Kit TBR5029

Delphi TBR5029 is a standard replacement rack and pinion bellows kit for steering systems that need a durable dust and debris barrier. It is built with OE-focused dimensional and material analysis for proper steering rack coverage on select Acura RL applications.

Key Features

• Rubber bellows construction with black finish
• Extended length: 209.5 mm (8.24 in.)
• Bellows end 1 inside diameter: 14.0 mm (0.551 in.)
• Bellows end 2 inside diameter: 53.0 mm (2.086 in.)
• 15 rib bellows design
• Mounting hardware included
• Standard replacement grade for steering rack service
• Fits front left and front right positions on select vehicles

Detailed Description

Delphi TBR5029 rack and pinion bellows kit is engineered for steering rack protection on 2005-2012 Acura RL models, front left and front right. The rubber bellows helps shield the rack from road contamination while maintaining the correct fit and movement range for the steering assembly. Delphi applies OE-level dimensional and material analysis to support accurate aftermarket replacement, and the part is tested across extreme temperature and salt-spray exposure conditions to verify durability in demanding environments. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Cracked or torn steering rack bellows
• Grease contamination around the steering rack
• Road debris entering the rack and pinion assembly
• Moisture intrusion near the steering gear boots
• Uneven steering rack boot fitment during service

Installation Notes and Tips

Verify the steering side before installation on your Acura RL, since this bellows kit is listed for both front left and front right positions. Inspect the rack, tie rod ends, and adjacent seals for wear before reassembly, and confirm the bellows end diameters and extended length match the original part. Proper seating at both ends is important to maintain a secure seal and correct steering movement.

Quality Assurance

Delphi uses OE-based engineering practices for its steering portfolio, including dimensional checks and material analysis to support fit and function. The brand also subjects parts to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability for real-world steering service.
