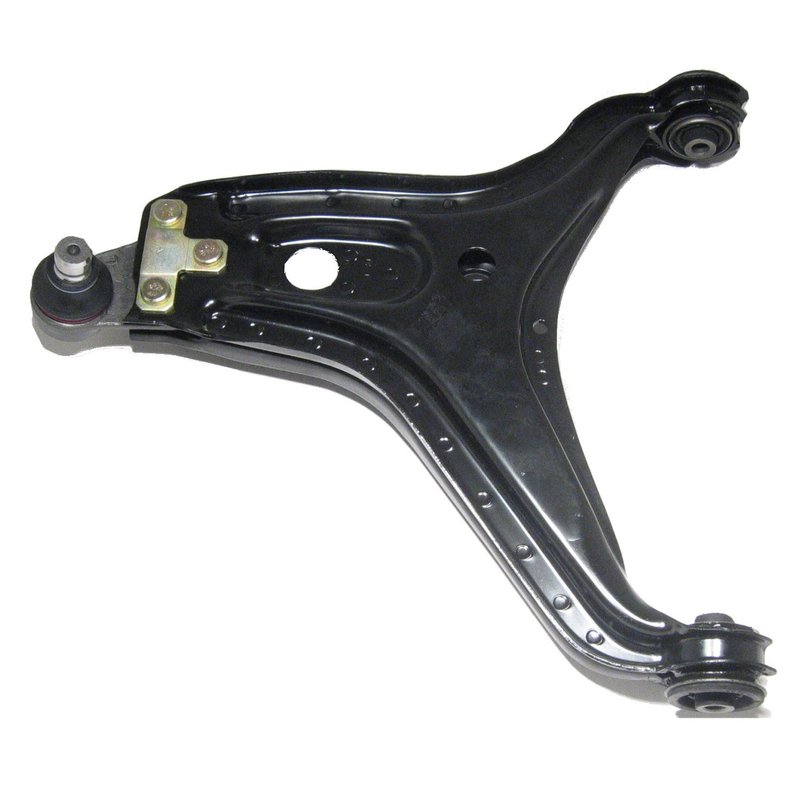

Delphi TC1141 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC1141 suspension control arm and ball joint assembly is designed for front left lower suspension applications on select Audi models. Engineered with stamped steel construction and natural rubber bushings, this assembly offers reliable performance for Audi 80, 80 Quattro, 90, 90 Quattro, Cabriolet, and Coupe Quattro vehicles.

• Pre-greased for immediate installation
• Includes natural rubber bushings for effective vibration dampening
• Bolt-in ball joint mounting with grooved stud design
• Stamped steel control arm construction in black finish
• Compatible with front left lower suspension position

Detailed Product Features and Specifications

The Delphi TC1141 control arm assembly features a stamped steel arm with a maximum length of 15.472 inches (393 mm) and a maximum width of 14.409 inches (366 mm). It comes pre-greased and includes natural rubber bushings to provide a balance of durability and ride comfort. The ball joint is mounted using a bolt-in method and features a grooved stud measuring 3.11 inches (79 mm) in length. This assembly is designed for light suspension grade applications and does not include grease fittings or mounting hardware. The mounting holes are sized at 0.402 inches (10.2 mm) in diameter, with two holes for secure attachment.

Compatible Audi Models and Applications

This suspension control arm and ball joint assembly is compatible with the following Audi vehicles:

• Audi 80 and 80 Quattro
• Audi 90 and 90 Quattro
• Audi Cabriolet
• Audi Coupe Quattro

Specifically designed for the front left lower suspension position, the Delphi TC1141 ensures proper fitment and function for these models.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing poor handling
• Loose or failing ball joints leading to suspension noise or instability
• Corroded or bent control arms affecting wheel alignment
• Vibration and uneven tire wear due to suspension component wear
• Reduced steering response from compromised suspension parts

Installation Notes and Tips

Installation of the Delphi TC1141 control arm assembly requires removal of the existing front left lower suspension control arm. Since the assembly comes pre-greased and includes bushings, no additional lubrication is necessary. Note that mounting hardware is not included, so original bolts or suitable replacements should be used. Ensure proper torque specifications are followed during installation to maintain suspension integrity and safety.

Quality Assurance and Warranty

Delphi suspension components meet standard replacement grade requirements, providing dependable performance for compatible Audi models. The TC1141 assembly is manufactured with quality materials including stamped steel and natural rubber bushings to ensure durability. While specific warranty details are not provided, Delphi products typically adhere to industry standards for replacement parts.
