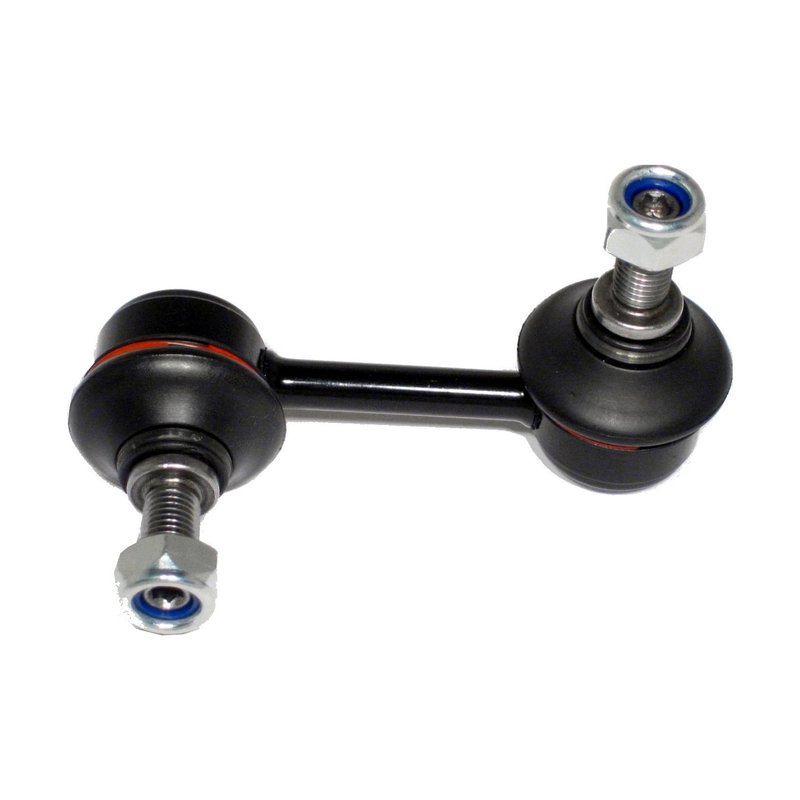

Delphi TC1196 Suspension Stabilizer Bar Link - Front Left
| Brand | Delphi TC1196 |
|---|---|
| Position | Front Left |
| Bearing Material | Polyoxymethilen (POM) |
| Bolt Length | 3.15 |
| Bolt Length | 80.0 |
| Bolt Thread Diameter | 0.39 |
| Bolt Thread Diameter | 10.0 |
| Bolt Thread Size | M10 x 1.25 |
| Bolts Included | No |
| Bushing Color | Black |
| Bushing Material | Rubber |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 2.362 |
| Height | 60.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 3.15 |
| Length | 80.0 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Weight | 0.51 |
| Width | 2.362 |
| Width | 60.0 |
| Fits | Chevrolet and Daewoo |
Standard replacement. Built as an OE-style stabilizer bar link for straightforward aftermarket service.
Steel construction. Durable housing and link components help it stand up to demanding conditions.
Ball joint ends. Both ends use ball joints for smooth, controlled suspension movement.
Cross-references Mevotech Supreme MK90365, Mevotech Supreme MS25811 and 101-5252 for the same application. See all 9.
Delphi TC1196 Front Left Stabilizer Bar Link
Delphi TC1196 is a front left suspension stabilizer bar link built for OE-style replacement performance. It uses a steel housing, ball joint ends, and a dust boot to support consistent sway bar connection and steering response on the vehicle.
For drivers searching for a front left sway bar link for Honda Civic or Acura Integra applications, this Delphi stabilizer bar link is built with dimensional and material analysis to match OE fit and function. The TC1196 part number is also a direct reference for shoppers comparing Delphi TC1196 against other aftermarket listings.
Key Features
- Front left suspension stabilizer bar link
- Steel construction with steel housing
- Ball joint ends on both sides
- Dust boot included
- Rubber bushing material with black bushing color
- Polyoxymethylene (POM) bearing material
- M10 x 1.25 bolt thread size
- Standard replacement grade
- Locking nuts included
Detailed Description
Delphi TC1196 is engineered as a standard replacement stabilizer bar link for the front left position. It is designed to restore the connection between the sway bar and suspension assembly, helping maintain predictable handling and reduce looseness caused by worn link components. Delphi applies OE-focused dimensional and material analysis to support proper compatibility between the original part and the aftermarket replacement. This part cross-references Mevotech Supreme MK90365 for the same application.
Common Problems This Part Can Address
- Clunking or rattling from the front suspension
- Excessive play in the sway bar link connection
- Reduced steering stability during cornering
- Worn ball joint movement at the stabilizer link
- Noise caused by deteriorated link bushings or boots
Installation Notes and Tips
Install TC1196 in the front left position only. Verify bolt thread size, mounting points, and suspension geometry before installation. Because this stabilizer bar link uses ball joint ends and locking nuts, proper torque and alignment of the link during installation are important for correct operation. For Honda Civic and Acura Integra front suspension service, compare the removed part to Delphi TC1196 before final assembly.
Quality Assurance
Delphi subjects steering and suspension components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt spray testing. The brand also uses OE dimensional and material analysis to support fit and durability in aftermarket applications.
