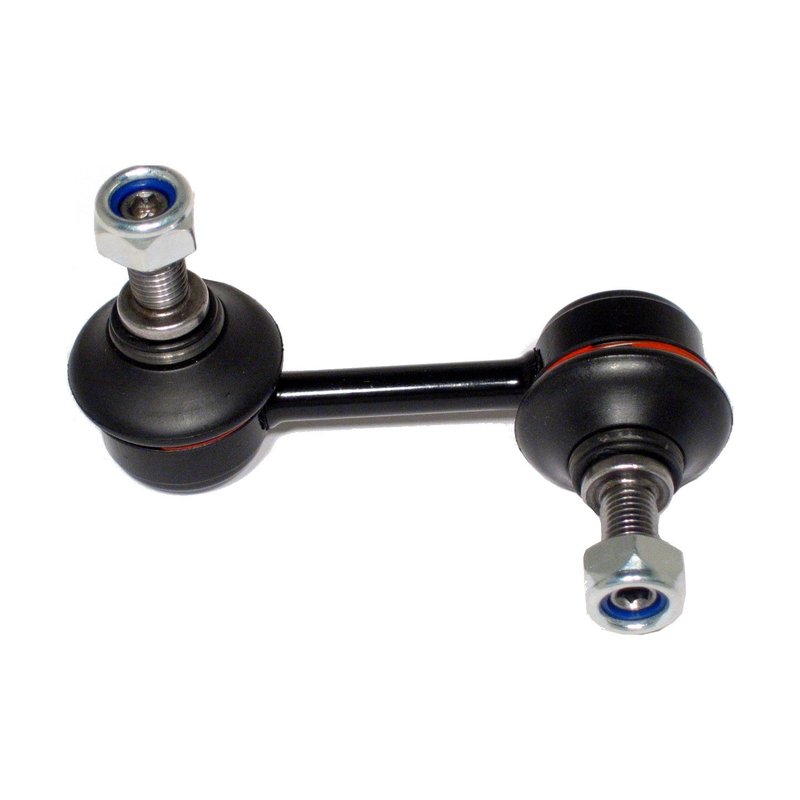

Delphi TC1197 Suspension Stabilizer Bar Link - Front Right

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC1197 Suspension Stabilizer Bar Link is engineered to provide reliable front right suspension support for vehicles requiring a durable steel construction. Designed with precision, this stabilizer bar link features ball joint ends and a dust boot to maintain optimal performance under various driving conditions.

• Constructed from high-strength steel for durability
• Front right position fitment with ball joint ends on both sides
• Includes a dust boot to protect against contaminants
• Black rubber bushings for vibration dampening (bushings not included)
• Standard replacement grade with locking nuts included
• Bolt thread size M10 x 1.25 with 3.15 inch (80 mm) bolt length
• Housing made of steel with polyoxymethylen (POM) bearing material

Detailed Product Description

The Delphi TC1197 suspension stabilizer bar link is designed to maintain vehicle stability by connecting the sway bar to the suspension system, specifically on the front right side. Its steel housing and ball joint ends ensure a secure and flexible connection, allowing for smooth suspension articulation. The black rubber bushings help reduce noise and vibration, although bushings are not included with this part. The dust boot protects the ball joints from dirt and moisture, extending the component's service life. With a bolt thread size of M10 x 1.25 and a bolt length of 3.15 inches (80 mm), this stabilizer bar link is compatible with various vehicle models requiring these specifications.

Common Suspension Issues Addressed

• Excessive body roll during cornering
• Clunking or knocking noises from the front suspension
• Uneven tire wear due to poor sway bar connection
• Reduced steering responsiveness and stability
• Worn or damaged stabilizer bar link components

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before installation
• Remove the old stabilizer bar link carefully to avoid damaging surrounding components
• Verify bolt thread size M10 x 1.25 matches vehicle specifications
• Use the included locking nuts to secure the stabilizer bar link firmly
• Check for proper alignment and torque specifications as per vehicle manufacturer guidelines

Quality Assurance and Warranty

The Delphi TC1197 is a standard replacement grade suspension stabilizer bar link manufactured with quality steel and durable materials to meet OEM standards. While specific warranty details are not provided, Delphi parts typically undergo rigorous testing to ensure reliability and performance in automotive suspension systems.
