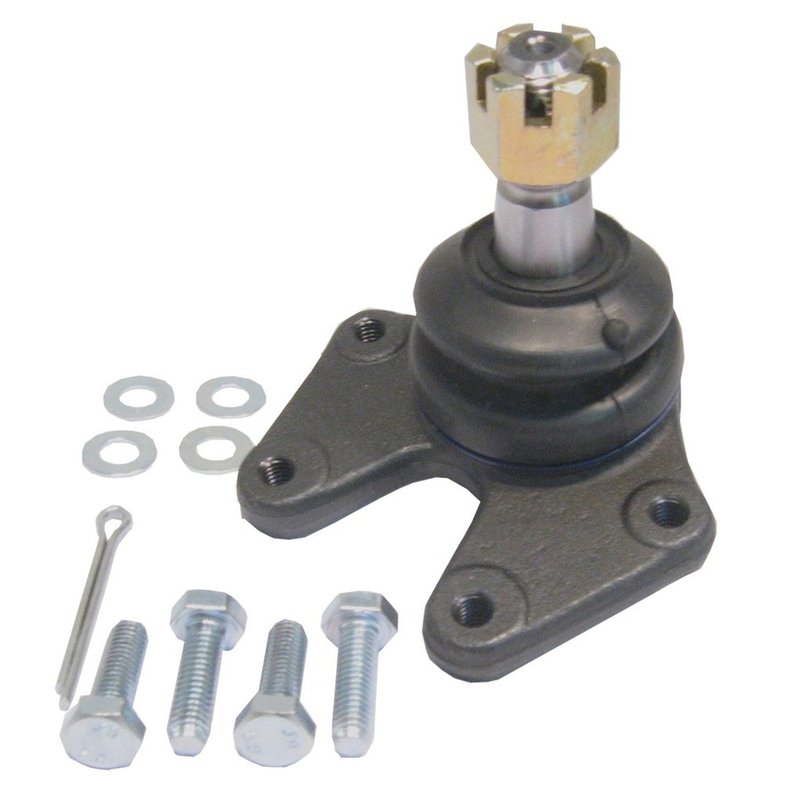

Delphi TC1229 Suspension Ball Joint - Front Lower
| Brand | Delphi TC1229 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Gray |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Distance Between Mounting Holes | 40.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 4.02 |
| Height | 102.1 |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.067 |
| Maximum Outside Diameter | 52.5 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 0.567 |
| Mounting Bolt Head Diameter | 14.4 |
| Mounting Bolt Length | 0.701 |
| Mounting Bolt Length | 17.8 |
| Mounting Bolt Shank Diameter | 0.315 |
| Mounting Bolt Shank Diameter | 8.0 |
| Mounting Bolt Thread Diameter | 8.0 |
| Mounting Bolt Thread Length | 0.906 |
| Mounting Bolt Thread Length | 23.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 4 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.701 |
| Stud Tapered End 1 Diameter | 17.8 |
| Stud Tapered End 2 Diameter | 0.791 |
| Stud Tapered End 2 Diameter | 20.1 |
| Stud Thread Diameter | 0.63 |
| Stud Thread Diameter | 16.0 |
| Stud Thread Length | 0.791 |
| Stud Thread Length | 20.1 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | Yes |
| Width | 100.8 |
| Wrench Size | 0.512 |
| Wrench Size | 13.0 |
| Fits | Kia · 8 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Built with a dust boot and threaded stud for dependable service.
Bolt-on installation. Mounting hardware, nuts, washers, and cotter pin are included.
Cross-references Beck/Arnley 101-4444, Mevotech Supreme MK9889 and MOOG Chassis Products K9889 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC1229 Front Lower Ball Joint
Delphi TC1229 is a standard replacement suspension ball joint built for the front lower position on select Kia Sportage models. It combines OE-focused dimensional and material analysis with tested durability for drivers replacing worn steering and suspension components on a 1995-2002 Kia Sportage.
Fits 1995-2002 Kia Sportage, front lower. This Delphi TC1229 ball joint is built with a bolt-on mounting design and includes a dust boot, castle nut, cotter pin, and mounting hardware for the specified application.
Key Features
- Brand: Delphi suspension ball joint, part number TC1229
- Compatible with 1995-2002 Kia Sportage, front lower
- Standard replacement grade for OE-style service
- Steel construction with gray finish
- Bolt-on mounting type with 4 mounting holes
- Dust boot included; grease fitting not included
- Ball joint assembly included with tapered stud design
- Castle nut, cotter pin, washers, and mounting bolts included
- Stud thread diameter: 16.0 mm; stud thread pitch: 1.5
Detailed Description
Delphi TC1229 is engineered for the front lower suspension location on the Kia Sportage, using OE-based dimensional and material analysis to support proper fit and function. Delphi subjects its steering and suspension components to temperature extremes and salt-spray exposure testing to evaluate durability in demanding conditions. The result is a replacement ball joint built around the original mounting and stud geometry for the 1995-2002 Kia Sportage platform.
This part cross-references MOOG Chassis Products K9889 and Mevotech Supreme MK9889 for the same application. Delphi TC1229 is also listed among interchange references for this front lower Kia Sportage service position.
Common Repair Symptoms
- Front-end clunking or popping over bumps
- Excessive play in the lower suspension joint
- Uneven tire wear related to worn steering geometry
- Loose or imprecise steering feel
- Inspection failure from worn suspension components
Installation Notes and Tips
Verify the front lower mounting pattern, stud taper, and thread specifications before installation on the Kia Sportage. Inspect the control arm and surrounding hardware for wear or damage, and replace any compromised fasteners or mating parts as needed. After installation, perform a professional alignment to confirm correct suspension geometry.
Quality Assurance
Delphi applies OE-focused engineering and durability testing to its aftermarket steering and suspension portfolio. TC1229 is built as a standard replacement part for consistent fitment on the specified Kia Sportage applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Kia | Sportage | Front Lower | — |
| 2001 | Kia | Sportage | Front Lower | — |
| 2000 | Kia | Sportage | Front Lower | — |
| 1999 | Kia | Sportage | Front Lower | — |
| 1998 | Kia | Sportage | Front Lower | — |
| 1997 | Kia | Sportage | Front Lower | — |
| 1996 | Kia | Sportage | Front Lower | — |
| 1995 | Kia | Sportage | Front Lower | — |
