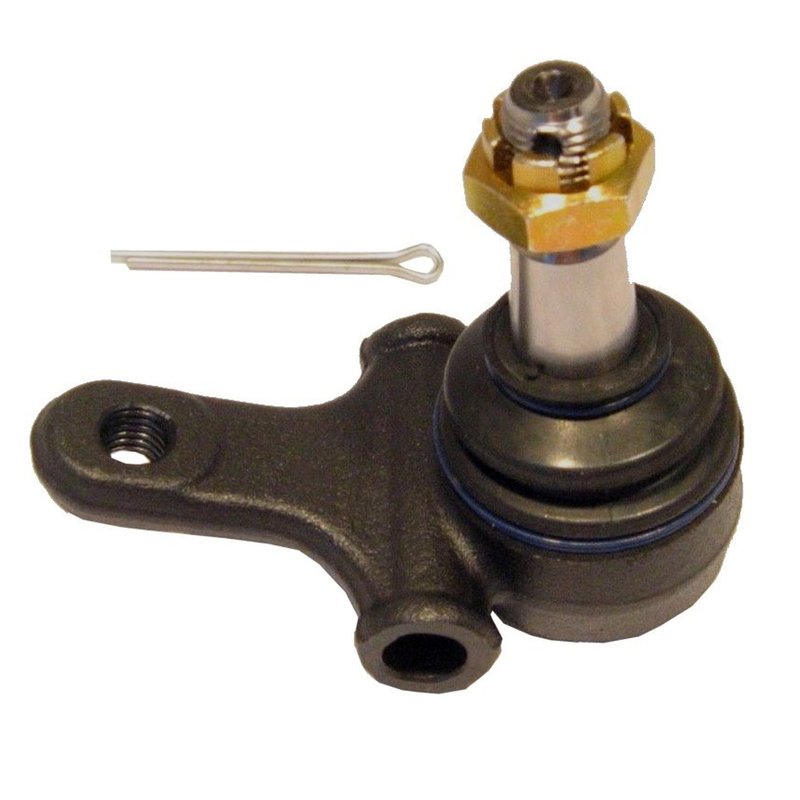

Delphi TC1267 Suspension Ball Joint - Front Lower
| Brand | Delphi TC1267 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Black |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Distance Between Mounting Holes | 48.5 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.835 |
| Height | 97.4 |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.89 |
| Maximum Outside Diameter | 48.0 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 0.819 |
| Mounting Bolt Head Diameter | 20.8 |
| Mounting Bolt Length | 3.642 |
| Mounting Bolt Length | 92.5 |
| Mounting Bolt Shank Diameter | 0.472 |
| Mounting Bolt Shank Diameter | 12.0 |
| Mounting Bolt Thread Diameter | 12.0 |
| Mounting Bolt Thread Length | 1.378 |
| Mounting Bolt Thread Length | 35.0 |
| Mounting Bolt Thread Pitch | 1.5 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.618 |
| Stud Tapered End 1 Diameter | 15.7 |
| Stud Tapered End 2 Diameter | 0.713 |
| Stud Tapered End 2 Diameter | 18.1 |
| Stud Thread Diameter | 0.551 |
| Stud Thread Diameter | 14.0 |
| Stud Thread Length | 0.906 |
| Stud Thread Length | 23.0 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 60.0 |
| Wrench Size | 0.709 |
| Wrench Size | 18.0 |
| Fits | Mazda · 15 vehicles |
Standard replacement. OE expertise and dimensional analysis help match the original part.
Bolt-on installation. Includes mounting hardware for a straightforward install.
Steel construction. With a dust boot and threaded stud for dependable suspension service.
Cross-references Beck/Arnley 101-4695, Mevotech Supreme MK9908 and MOOG Chassis Products K9908 for the same application. See all 12.
Delphi TC1267 Front Lower Ball Joint
Delphi TC1267 is a standard replacement suspension ball joint built for Mazda Miata front lower applications. It combines a steel body, threaded stud design, and included dust boot to support precise suspension movement and consistent steering response.
Fits 1990-1997 Mazda Miata, front lower. Fits 1999-2005 Mazda Miata, front lower.
Key Features
- Steel construction with a black finish
- Standard replacement suspension grade
- Ball joint assembly with tapered, threaded stud
- Dust boot included; chloroprene rubber (CR) material
- Castle nut, cotter pin, nuts, and mounting hardware included
- Bolt-on mounting type with two mounting holes
- Grease fitting not included; non-greaseable design
- Compatible with Mazda Miata front lower suspension service
Detailed Description
Delphi TC1267 is engineered as a standard replacement suspension ball joint for the front lower position on Mazda Miata models from 1990-1997 and 1999-2005. Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and consistent part-to-part compatibility. The assembly uses a steel housing, tapered stud, and bolt-on mounting design, with a dust boot made from chloroprene rubber to help protect the joint from road contamination.
This part cross-references MOOG Chassis Products K9908 and Beck/Arnley 101-4695 for the same application. Delphi TC1267 is a practical choice when replacing a worn front lower ball joint on a Mazda Miata and restoring stable suspension articulation.
Common Problems This Part Can Address
- Front-end clunking or popping from a worn ball joint
- Excessive suspension play at the lower control arm
- Loose or imprecise steering feel
- Uneven tire wear related to suspension looseness
- Visible boot damage or joint contamination
Installation Notes and Tips
Verify the front lower mounting location and compare the original joint dimensions before installation. The bolt-on design uses two mounting holes, and the included castle nut and cotter pin support proper stud retention. Because this is a non-greaseable ball joint, periodic lubrication is not part of service. Always inspect the surrounding control arm, fasteners, and alignment settings during replacement.
Quality Assurance
Delphi subjects steering and suspension components to extreme temperature and salt-spray testing and uses dimensional and material checks to support OE-style performance and fit. The TC1267 is built as a standard replacement part for Mazda Miata front lower service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Mazda | Miata | Front Lower | — |
| 2004 | Mazda | Miata | Front Lower | — |
| 2003 | Mazda | Miata | Front Lower | — |
| 2002 | Mazda | Miata | Front Lower | — |
| 2001 | Mazda | Miata | Front Lower | — |
| 2000 | Mazda | Miata | Front Lower | — |
| 1999 | Mazda | Miata | Front Lower | — |
| 1997 | Mazda | Miata | Front Lower | — |
| 1996 | Mazda | Miata | Front Lower | — |
| 1995 | Mazda | Miata | Front Lower | — |
| 1994 | Mazda | Miata | Front Lower | — |
| 1993 | Mazda | Miata | Front Lower | — |
| 1992 | Mazda | Miata | Front Lower | — |
| 1991 | Mazda | Miata | Front Lower | — |
| 1990 | Mazda | Miata | Front Lower | — |
