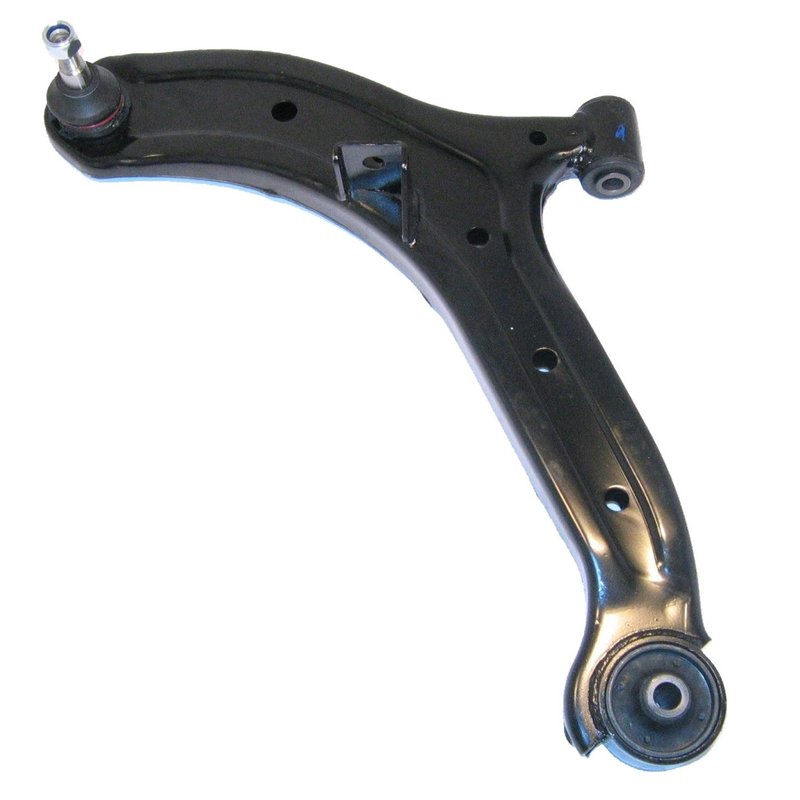

Delphi TC1309 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Front Left Lower Control Arm Assembly

Delphi TC1309 is a standard replacement suspension control arm and ball joint assembly for the front left lower position on select Hyundai Accent models. It combines a stamped steel arm, press-in ball joint, and included bushings to restore proper suspension geometry and steering response on 2000-2006 Hyundai Accent applications.

• Fits 2000-2006 Hyundai Accent, front left lower
• Stamped steel control arm construction with black finish
• Press-in ball joint with threaded stud design
• Pre-greased for service-ready installation
• Bushings included with rubber and steel bushing material
• Mounting hardware included
• Standard replacement part number TC1309

OE-Style Suspension Replacement

Delphi applies OE-focused dimensional and material analysis to this control arm assembly to support proper fit and consistent suspension operation. The TC1309 is built for the front left lower location on Hyundai Accent models from 2000 through 2006, making it a direct-match option for drivers replacing worn suspension components on this platform. This part cross-references Dorman - OE Solutions 520-863 for the same application.

Common Repair Uses

• Clunking or knocking from the front suspension
• Excessive play from worn ball joint or bushings
• Uneven tire wear caused by suspension looseness
• Steering wander or reduced front-end stability
• Restoring alignment after control arm wear

Installation Notes

Verify the front left lower position before installation and compare the original arm dimensions, mounting hole diameter, and ball joint thread specifications to the removed part. Because the ball joint is press-in and the arm is stamped steel, proper suspension service tools and a professional alignment are recommended after installation. Confirm fitment against the vehicle’s year, make, model, and suspension configuration before ordering.

Quality Assurance

Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure plus extended salt spray testing. The TC1309 is built to OE-level dimensional standards for consistent compatibility on the Hyundai Accent platform.
