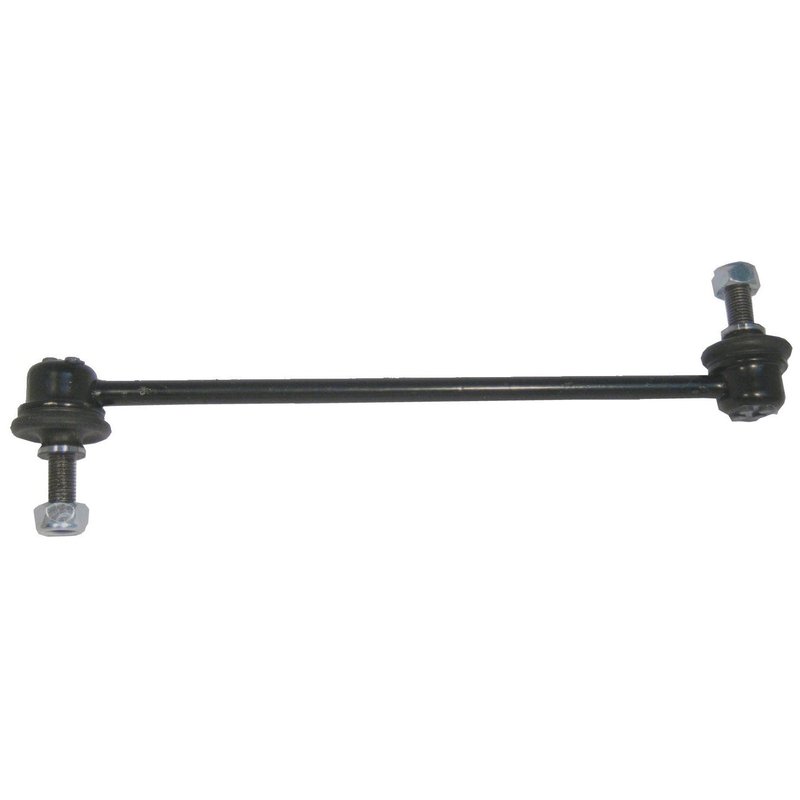

Delphi TC1344 Suspension Stabilizer Bar Link - Front or Rear

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC1344 Suspension Stabilizer Bar Link is engineered for reliable performance in Ford and Mazda vehicles, including models like the Ford Escape and Mazda CX-3. Constructed from durable steel with black rubber bushings, this stabilizer bar link helps maintain vehicle stability and handling precision.

• Made from high-strength steel for durability
• Equipped with black rubber bushings for noise reduction
• Ball joint ends on both sides for smooth articulation
• Includes dust boots to protect joints from contaminants
• Compatible with front and rear suspension positions depending on vehicle
• Locking nuts included for secure installation
• Standard replacement grade for reliable performance

Technical Details and Specifications

The Delphi TC1344 features a steel housing and a polyoxymethylene (POM) bearing material, ensuring long-lasting wear resistance. The stabilizer bar link measures approximately 253 mm (9.961 inches) in length and 45 mm (1.772 inches) in width, with a height of 88 mm (3.465 inches). Both ends utilize ball joints, providing precise movement and reducing suspension noise. The bolt thread size is M10 x 1.25, with a bolt length matching the overall link length. This part is not greaseable but includes dust boots to protect the joints from dirt and moisture. Locking nuts are included to maintain secure attachment during operation.

Compatible Vehicles and Applications

This suspension stabilizer bar link is compatible with select Ford and Mazda models, including the Ford Escape, Mazda CX-3, Mazda Tribute, Mazda Protege, and Mazda 323. It is designed to fit either front or rear suspension positions depending on the specific vehicle configuration. For exact fitment, refer to your vehicle’s service manual or consult a professional mechanic.

Common Issues Addressed by the Delphi TC1344

• Excessive body roll during cornering
• Clunking or knocking noises from suspension
• Uneven tire wear due to poor stabilizer function
• Loose or worn suspension components affecting handling
• Reduced vehicle stability on uneven roads

Installation Notes and Tips

Installation of the Delphi TC1344 stabilizer bar link requires basic suspension knowledge and tools. Ensure the vehicle is securely lifted and supported before removal of the old link. The included locking nuts should be torqued to manufacturer specifications to prevent loosening. Since this part is not greaseable, inspect dust boots carefully during installation to confirm they are intact and properly seated. Replacement is recommended in pairs for balanced suspension performance.

Quality Assurance and Warranty

Delphi suspension components meet standard replacement grade requirements, providing dependable service life. The TC1344 part number is backed by Delphi’s quality control processes to ensure fit and function. While specific warranty terms may vary, Delphi typically offers coverage against manufacturing defects. Consult product documentation or your parts provider for detailed warranty information.
