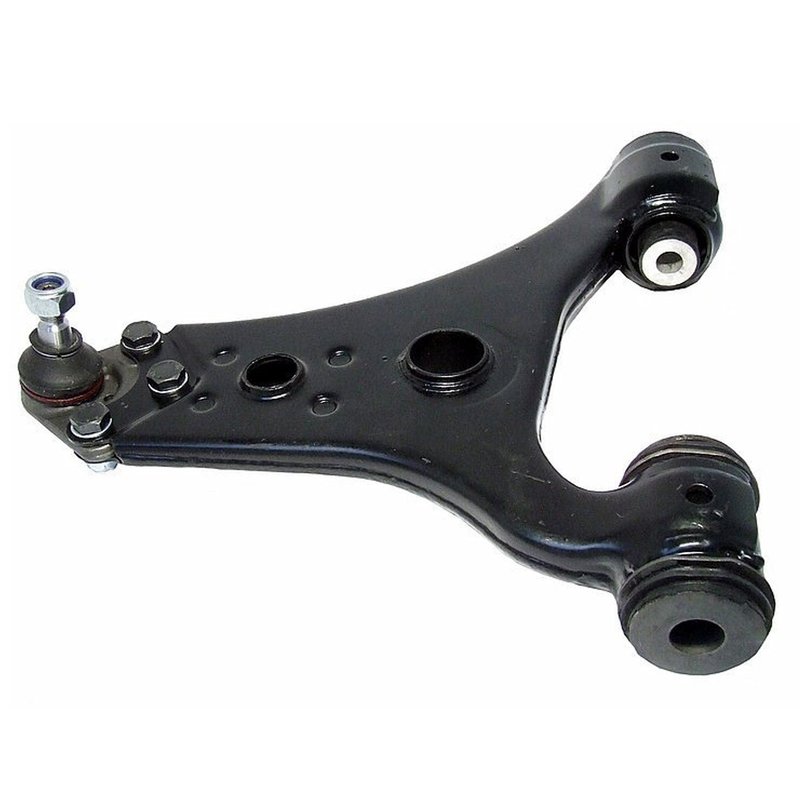

Delphi TC1465 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC1465 suspension control arm and ball joint assembly is designed specifically for the front left lower position on Mercedes-Benz B200 models. This pre-greased, stamped steel control arm offers reliable performance and includes all necessary bushings and mounting hardware for a straightforward replacement.

• Pre-greased for immediate installation
• Stamped steel construction for durability
• Includes rubber, steel, and aluminum bushings
• Mounting hardware included for convenience
• Compatible with Mercedes-Benz B200 front left lower suspension

Detailed Product Features and Specifications

The Delphi TC1465 control arm features a stamped steel construction finished in black, providing strength and corrosion resistance. It comes pre-greased, eliminating the need for additional lubrication during installation. The assembly includes high-quality bushings made from a combination of rubber, steel, and aluminum to ensure proper suspension movement and vibration dampening. The control arm measures approximately 14.724 inches (374 mm) in length and 3.622 inches (92 mm) in maximum width, with a single mounting hole of 1.378 inches (35 mm) diameter. The ball joint has a thread diameter of 0.551 inches (14 mm) and a stud length of 0.748 inches (19 mm). This assembly is designed for the front left lower suspension position on Mercedes-Benz B200 vehicles, providing a direct replacement that meets standard grade requirements.

Common Applications and Problem Resolution

• Replaces worn or damaged front left lower suspension control arm on Mercedes-Benz B200
• Addresses issues with suspension noise or looseness
• Corrects uneven tire wear caused by faulty control arm bushings
• Improves vehicle handling and steering response
• Restores proper suspension alignment and geometry

Installation Notes and Tips

Installation of the Delphi TC1465 control arm and ball joint assembly requires basic suspension knowledge and tools. Since the part comes pre-greased and includes bushings and mounting hardware, it simplifies the replacement process. Ensure the vehicle is securely lifted and supported before removing the old control arm. Verify torque specifications for mounting bolts according to the Mercedes-Benz B200 service manual. Alignment should be checked and adjusted after installation to maintain proper handling characteristics.

Quality Assurance and Warranty Information

Delphi suspension components are manufactured to meet or exceed OEM standards. The TC1465 control arm assembly is a standard replacement grade part, designed for reliable performance and durability. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or contact the supplier for exact warranty terms.
